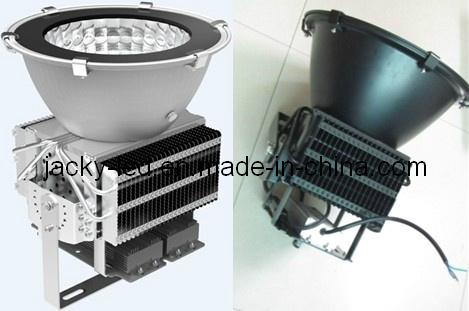

300WLED high bay light
Advantages:
1. Energy efficiency and Up to 80-85 % energy saving.
2. Waterproof design, eliminating mist, avoiding condensation,improving quality,extending the life span
3. High color rendering index.
4. 216degree adjustable angle: lexible positions makes project angle can be adjusted within 216 degree.
5. Environmentally friendly: lead-free and no light pollution and air pollution.
6.YN500 power led heatsink has perfaec the traditional 600W to 1000W sodium lamp ,this energy-saving cutting edge innovation fills the gap in the led heatsink market.
7. led high bay light-YN500 is four patented technologies;HDT,Zipped-fin,crimped fins,compreessed pipe making the high power led heatsink lighter,easy to instal,solid in structure,super heat fissipation.
8. Modular design,making power diverse,enriching prodcu.
APPLICATION
* Factory,gymnasium,lighting decoration,square,golf course,vessel,airport,metro station,business area,flyover,outdoor advertising,landmark and so on.
FOUR DESIGN HIGHLIGHT:
Dimension:
Reflector Optional angle: 25 degrees / 45 degrees / 60 degrees / 90 degrees / 100 degrees.
YN500 led high bay light: Use SMD 3020, CREE-XBD, longevity drive MEAN WELL.
Specifications:
YN500 led high bay light (100W150W200W300W400w500w)
|
Rated power |
Input voltage |
CCT |
Power factor |
CRI |
Lumen |
CHIP MODEL |
LED
Quantity |
Dimension(L*W*H) |
|
100W |
AC85-265V |
3000-6500K |
≥0.9 |
≥80 |
>80lm/w |
SMD3020 |
200PCS |
511 x 315 x 204mm |
|
150W |
AC85-265V |
3000-6500K |
≥0.9 |
≥80 |
>80lm/w |
XBD/SMD3020 |
90PCS/300PCS |
602 x 315 x 204mm |
|
200W |
AC85-265V |
3000-6500K |
≥0.9 |
≥80 |
>80lm/w |
XBD/SMD3020 |
130PCS/380PCS |
693 x 315 x 204mm |
|
300W |
AC85-265V |
3000-6500K |
≥0.9 |
≥80 |
>80m/w |
XBD |
192PCS/ |
784 x 315 x 204mm |
|
400W |
AC85-265V |
3000-6500K |
≥0.9 |
≥80 |
>80lm/w |
XBD |
280PCS |
875 x 315 x 204mm |
|
500W |
AC85-265V |
3000-6500K |
≥0.9 |
≥80 |
>80lm/w |
XBD |
280PCS |
966 x 315 x 204mm |
Product Packing Specification:
|
Packing Der alls |
100W |
150W |
200W |
300W |
400W |
500W |
|
Net Weight |
6.5KG |
6.8KG |
7.57KG |
9.5KG |
10.7KG |
12.89KG |
|
Gross Weight Per Bos |
2.5KG |
2.5KG |
2.2KG |
2.51KG |
2.5KG |
2.5KG |
|
CTN Size |
45.5()x45.5()x51()cm |
47.5()x47.5()x51()cm |
45.5()x45.5()x51()cm |
47.5()x47.5()x51()cm |
46.5()x46.5()x55()cm |
48.5()x48.5()x55()cm |
|
Pack Quantity |
1PCS |
1PCS |
1PCS |
1PCS |
1PCS |
1PCS |
|
Gross Weight Per CNT |
9KG |
9.3KG |
9.77KG |
12.51KG |
13.2KG |
15.39KG |
