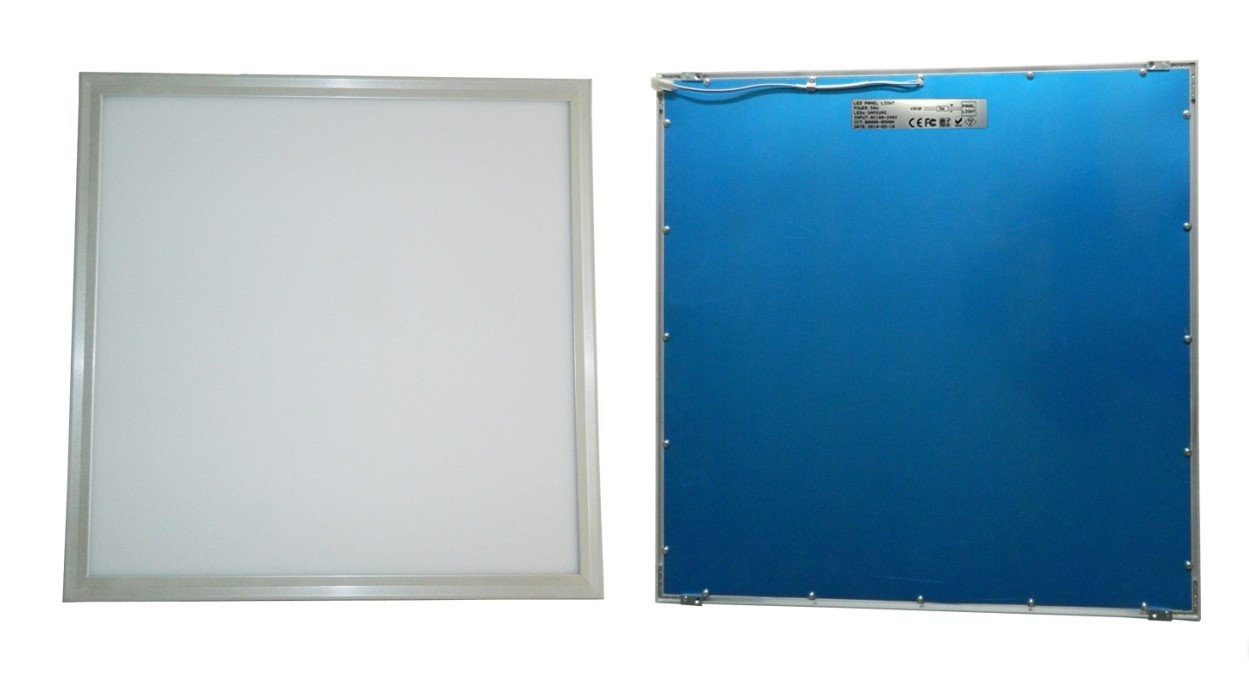

LED Light Panel (3 Years Warranty)
ENE LED panel is a new & first choice of led lighting fixture for replacing tube light, LED grill light with the compact profile and thin advantages. LED panel is elgant design, easy for installation, Maintain free. Lighting distribution is soft and confortable, LED light panel is your idea choice for office light and commercial light.
LED Panel
Single color, RGB; (various colors available).
Function of high power LED panel light: AC110~240V quick response when power on, no noise, no UV, no strobe light; Adpot own-designed LED driver with high power factor.
Luminous efficacy: 85.5lm/W; (Pure White )
Thickness: 10.5mm
Input voltage: AC100~240V
Lifetime: ≥ 30, 000h
Color Temperature: 3000K/4000K/6000K (± 10%)
Installation methods for option: Hanging and Embedded
Certificate: TUV, CE, FCC, RoHS approved, with 3 year quality warranty.
Dimension: 595mm X 595mm X 10.5mm
LED type: SMD 5630
LED Q'ty: 140PCS
Material: Aluminium + PMMA
Beam Way: Beam at two sides
Working temperature: -10. C~40. C
Installation method: Embedded. Hanging
IP rate: IP40
N. W. (± 0.1Kg): 5.1Kg
Feature of LED panel light:
1. Appearance: Rational structure, modern design, scientific design of heat dissipation and optics. High-level Aluminium edge. Which is better for the heat disspation of LED itself and keep a longer life span.
2. Stability: Wide voltage output, No harsh glare, Activated without delay, High power factor, Lumens depreciation < 5‰ , Eyesight protection, Specially useing long time work and study circumstances.
3. Lighting effect of the whole panel light 80lm/W, Advanced lighting features. Compare with traditional fluorescent lamp, this LED panel save over 3 times electricity in the same luminance intensity.
4. Self-design and strictly testing LED driver, We assure the high quality and good after-sale service.
5. The light transmission of LGP (light guide plate) is 85%. More evenly light and higher lumens.
6. PRO-environment and safe product. No mercury, no UV radiation, all the energy-saving light can not reach this high-level.
7. Easy installation. Wire hanging installation & embedded installation for option.
Application of LED panel light:
1. Commercial Lighting \Office Lighting \Warehouse Lighting \Supermarket Lighting;
2. IT, Call Centers, Shops and showrooms, Kitchen/pantry, hospitals, hotels, and other public places.
Package of LED panel ceiling:
A. Description
Individually package for each LED panel. EPE Foam protection, assure the safety in the express.
B. Procedure
Step 1: EPE Foam protect the panel.
Step 2: Put the 1 PC stuff into the box. Finish the packing of inner box.
Step 3: Put the inner box to out box. 5 PCS inner box/out box.
Note:
1. When installation, try to avoid the minefields, strong magnetic field and high-pressure region.
2. Ensuring a solid connection correctly in order to avoid short-circuit damage to components and trigger fires.
3. Installed in a well-ventilated place to ensure appropriate environmental temperature.
4. Using this product, please check the local voltage compliance product requirements.
5. To prohibit the live wiring, check to confirm wiring is correct, check the no short-circuit, and then power!
6. In case of failures, do not maintenance in private.
High quality led panel light is 2013 new ultra-thin panel lamp, which is independently researched and developed by our company R & D persons (General Lighting). We will insure the LED panel more energy efficient & higher brightness; Saving up 50% energy consumption, high CRI to insure a truer color of the good & environment; Aluminum body to insure heat dissipation and the same time the long lifespan of the LED Panel light; Adpot High-light-transmittance Light panel above.
LED Panel
LED panel light
LED panel lighting
Shenzhen ENE Technology Co., Ltd., founded in 2003, is a professional high-tech Shenzhen ENE Technology was established in 2003 and is a professional high-tech enterprise integrated in the R&D, production and sale of LED application items. Our main products include LED panel light, LED dimmable panel light, LED CCT adjustable panel light, LED RGB panel light and LED emergency panel light. We are one of the key enterprises supported by the National Development and Reform Committee (NDRC) and the National 863 Program.
Our products are widely used in life, decorative and municipal lighting projects. We utilize advanced ASM automatic solid crystal, automatic wire welding equipment and automatic sealant equipment in the industry. We also adopt the purified antistatic international standard facilities for operation at confined spaces during the entire manufacturing process, as well as the multipurpose automatic computer separation equipment from Taiwan for product testing. For your added assurance, we strictly comply with ISO 9001: 2008, ISO 14001: 2004 and OHSAS 18001: 2004 standards, and all our products passed SGS certification.
We always believe in the scientific and humanized management of making the best use of people and objectives, and taking full efforts for all matters, big and small. As a result, we have built a good reputation in the industry and won unanimous praises from domestic and foreign customers.
