Items MPR-3.9
Pixel Pitch 3.9mm
LED Configuration SMD2121
Pixel Density 65536/sqm
Module Size(mm) 250(W)X250(H)
Module Resolution 64X64
Unit Size(mm) 500(W)X500(H)

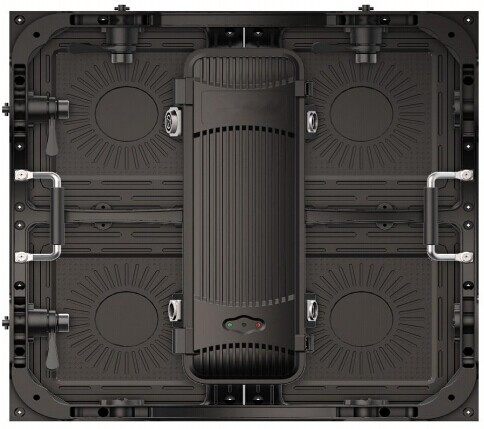

Cabinet Type and Material Die-cast aluminium cabinet
Unit Pixel 128X128
Unit Weight 9Kg
Scan Mode 1/16
Brightness(CD/sqm) 1500
"Power Consumption
(max/avg)(W/sqm) 600/200
Driver IC MBI5042
Refresh Frequency 2800Hz
Gray Scale 16bit
Color Depth 65536
View Angle 140degree(H). 120degree(V)
IP(front/rear) IP31
Control system LINSN/NOVA
Working Temperature -30degree - +50degree
Operating Humidity 10 - 90% RH
Outstanding image quality and elegant,
Pixel level color and intensity calibration
Lightweight, yet strong
Fast to assemble, no tools.
Reliable, built to the highest standards
sales director: Gavin
Magic PRO LED Display Co., Ltd. is a Professional LED Display Lighting Manufacturer that is specialized in indoor LED screen and outdoor LED display and High Power LEDs and High Power LED lighting products Manufacturing with Designing, R & D, Sales, Service, UNIT LED has got the ISO9001: 2008 quality certificate system and CE, RoHS, ETL, FCC approved, Supply realible quality and competitive price LED display screen and LED tube lights products to our clients.
UNIT LED has the factory area of 12, 000m2 with Employees of 500 people, Our products has exported LED Display and LED Lighting products to over 80 countries with High Reputation from our Clients...
