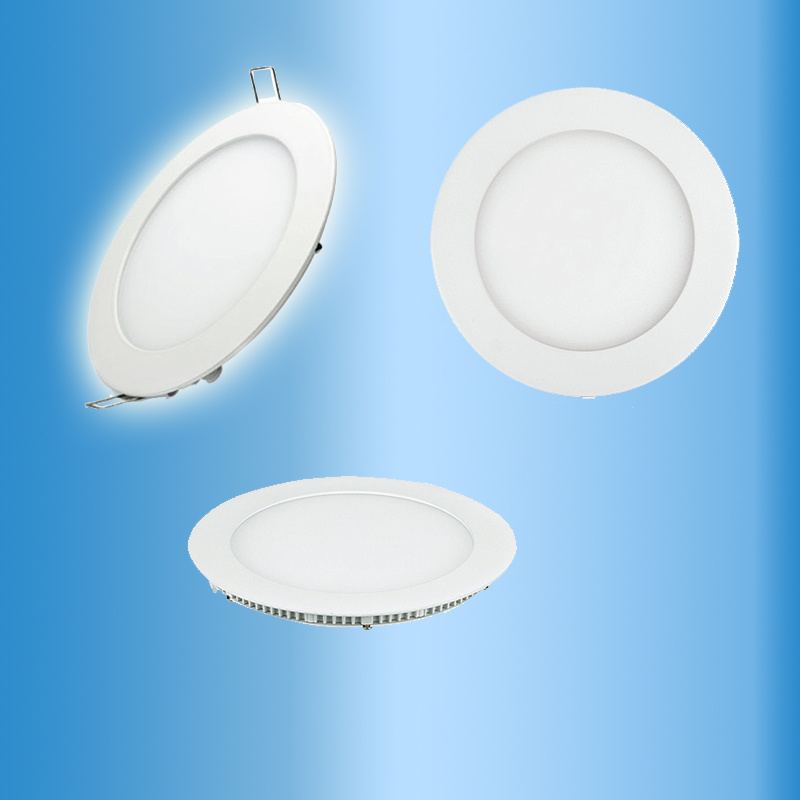

2835 SMD LED recessed light LED ceiling panels
Main Features(led ceiling panels)
1. Energy saving, high brightness, no infrared rays, no UV., environment friendly.
2. Instant start, no flicker, no buzz.
3. To use constant current driver.
4. Installation way: Recessed, surface mounted, suspended.
5. Dimmable function available for the led panel lights.
6. The driver fixed on back of out, which make the installation more convenient.
7. High efficiency (95%) constant current driver with built-in overheat protection that remain stable at a wide range
Of input voltages.
8. CE&RoHS certificated.
Typical Applications of led ceiling panels
1. Commercial Lighting
2. Office Lighting
3. Warehouse Lighting
4. Supermarket Lighting
Installation instruction of led ceiling panels
1. This product is limited to indoor use.
2. Hole size of the ceiling should be the same as the lamp's cutout size.
3. Connect the DC connectors with the lamp and the driver.
4. Insert the pinch to the ceiling, make sure it is fastened.
Caution of led ceiling panels:
1. Confirm the goods have no damaged during the transportation before using.
2. Packing materials should be stayed away from children, prevent children from playing the plastic bag and small
Accessories lead to suffocate or swallowed.
3. Put away from the children, do not let the children touch the lamp when it is working.
4. Don't cover any things on the products. Put away from the fire or high temperature object.
5. Lay people can not tear down or maintain the product. We have the authority to refuse giving any warranty to the products which are repaired without our instruction.
6. Please shut off the power before clean the lamps. Only use the dry dish cloth to clean. Don't use any chemical or corrosive material to the lamps.
Item No. |
LED chip |
Power |
Lumen |
Size A |
Size B |
CRI |
Beam Angle |
Color Temperature |
Input Voltage |
PL-P-R3W-M |
15pcs 2835SMD |
3W |
285lm |
90mm |
70mm |
>80 |
120° |
2800-7000K |
100-240VAC |
PL-P-R3W-W |
PL-P-R4W-M |
20pcs 2835SMD |
4W |
380lm |
110mm |
90mm |
>80 |
120° |
2800-7000K |
100-240VAC |
PL-P-R4W-W |
PL-P-R6W-M |
30pcs 2835SMD |
6W |
570lm |
120mm |
100mm |
>80 |
120° |
2800-7000K |
100-240VAC |
PL-P-R6W-W |
PL-P-R9W-M |
45pcs 2835SMD |
9W |
855lm |
150mm |
130mm |
>80 |
120° |
2800-7000K |
100-240VAC |
PL-P-R9W-W |
PL-P-R12W-M |
60pcs 2835SMD |
12W |
1140lm |
170mm |
150mm |
>80 |
120° |
2800-7000K |
100-240VAC |
PL-P-R12W-W |
PL-P-R15W-M |
75pcs 2835SMD |
15W |
1425lm |
195mm |
175mm |
>80 |
120° |
2800-7000K |
100-240VAC |
PL-P-R15W-W |
PL-P-R18W-M |
90pcs 2835SMD |
18W |
1700lm |
225mm |
200mm |
>80 |
120° |
2800-7000K |
100-240VAC |
PL-P-R18W-W |
PL-P-R20W-M |
100pcs 2835SMD |
20W |
1890lm |
300mm |
285mm |
>80 |
120° |
2800-7000K |
100-240VAC |
PL-P-R20W-W |
