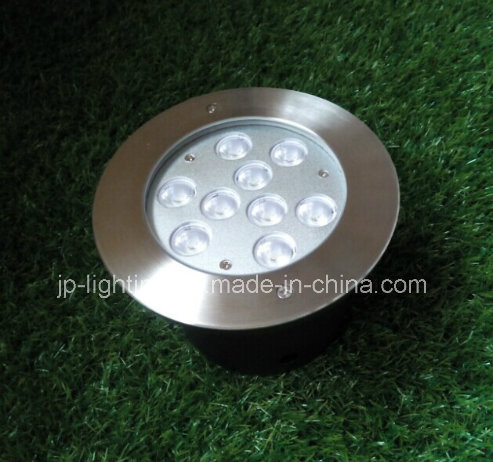

Home LED Light Products 27W Round LED Underground Garden Light with Plastic Sleeve (JP82692)

27W Round LED Underground Garden Light with Plastic Sleeve (JP82692)

27W Round LED Underground Garden Light with Plastic Sleeve (JP82692)
Price: US $ 46.2-51.2/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 8/Piece
Pay Type: T/T,Western Union
LED Deck Step Light, LED Underground Garden Light, Underground LED light with CE, IP67 LED inground light, LED step light, Wall Lamp, LED Stair Light Specification:

1. Housing: 12# Die-casting aluminum RAL9007 grey powder coated.
T=50-55μ M. Adhesion of ISO class 1/ASTM class 4B;
2. Front cover: Stainless steel 304# or 316#
3. Body size: Φ 165*H54mm;
4. Waterproof seal: Molding shaped double silicone seal;
5. Glass: Step tempered glass. T=8mm;
6. Loading Capacity: Exert force area of Φ 10=510kgs, Φ 30=840kgs, Φ 60=1760kgs,
7. Lens: Symmetrical optical lens, efficiency>85%;
8. Waterproof cable gland: IP68, PG-9 PVC;
9. PCB: Excellent heat conductivity aluminum, coefficient of heat, Conductivity>2.0w/mk;
10. Mounting sleeve: 12# Die-casting aluminum powder coated or PVC

Application:
1. Shopping mall
2. Parking lot
3. Seeded strip
4. Park,
5. Uptown
6. Pedestrian street
7. Plaza
8. Lawn
9. Private villas
10. Restaurants
11. Gardens
12. Meeting rooms
13. Exhibition halls
14. Residential landscaping
15. Stage
16. Bars
17chamber
18. Parking sculpture
19. Tourist attractions and other places, such as lighting decoration

All of our lights can be OEM or ODM!
Item No.LED SourceBeam AngleMaterialInput Voltage
JP826929X3W single color,warm white and others8/15/25/30/45/60 degreeAluminum for housing,with stainless steel frontcover12/24VDC
JP82691H9X1W single color,pure white and others8/15/25/30/45/60 degreeAluminum for housing,with stainless steel frontcover120/240V
JP82692H9X3W single color,cool white and others8/15/25/30/45/60 degreeAluminum for housing,with stainless steel frontcover120/240V
JP826939X1W RGB8/15/25/30/45/60 degreeAluminum for housing,with stainless steel frontcover24VDC
JP826949X3W RGB25/45 degreeAluminum for housing,with stainless steel frontcover24VDC
JP826969X3W RGB 3in125/45 degreeAluminum for housing,with stainless steel frontcover24VDC

Prod Model: JP-82692
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Source: 9X3w Single Color
Beam Angle: 8,15,25,30,45 or 60 Degree
LED Chip: Bridge/Epistar/CREE or OEM
Lamp Luminous Flux: 2000-2160 Lm
Lamp Luminous Efficiency: 80 Lm/W
Working Lifetime: >50000h
Working Temperature: -20-40 Centigrade
Driver: Built-in Constant Current Output
Warranty: 2 Years
Color Temperature: Cool White
Lamp Body Material: Aluminum
No. Of Light Source: ≤10PCS
IP Rating: IP67
Application: pedestrian mall
Certification: UL
Light Source: With Light Source
LED Chips Brand: Bridgelux
Power: 27W
Input Voltage: 24V, 24VDC
Joy and Partner Company Limited is located in Dongguan City, Guangdong Province, P. R. C which founded in 1997 and beginning LED lighting from 2006. Currently we have more than 50 employees and fabrication area 2, 000 square meters with capital of US$3 million.

Our products range:

1. LED outdoor lighting: LED underwater light, LED pond light, LED swimming pool light, LED fountain light, LED underground light, LED inground light, LED outdoor wall lamp, LED corner light, LED step light, LED landscape light, LED garden lamp, LED flood light, LED spike light etc.

2. LED decoration lighting(LED table light, LED table lamp, LED desk light, LED pendent, LED floor light, LED wall light);

Our certificates: CE, RoHS, TUV, GS, ETL, UL

Our philosophy:

We value more on "honesty, innovation and enterprise" and our principle is "customer first, continuous improvement, innovate to achieve win-win situation ". 13-years manufacturing experience is the guarantee to provide you our best products and service.

Joy and Partner company limited -The excellent and reliable partner of you!

About our 2 factories:

J&P Lighting Co., Ltd (Dongguan), a leading supplier of LED lighting since 2006. Specializing in designing, developing, and manufacturing of varied LED outdoor lights with annual production capacity approx. 50, 000 PCS.

J&P(XFR) Electrical Appliance Co., Ltd(Dongguan), a professional indoor decoration lighting manufacturer.
