Home LED Light Products 277V High Bay Light, LED High Bay

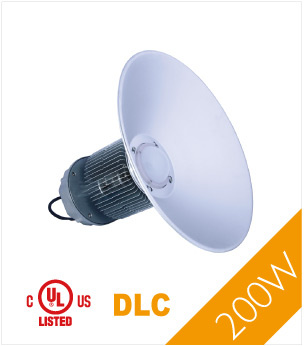

277V High Bay Light, LED High Bay

277V High Bay Light, LED High Bay
Price: US $ 200-500/Piece
Trade Terms: others
Min Order: 1/Piece
Pay Type: T/T
1) Color Temperature: Warm White: 2, 700 ~3, 500K, Cool White: 5, 000~6, 500K
2) CRI: Ra> 80
3) Power Factor: > 0.8
4) Outdoor Application: IP65 qualified
5) Life Span: 50, 000 hours
6) Warranty: 2 years
7) Certification: CE, RoHS
8) Housing Color: White

Specification
Item Number BL-IL-515-120W
Description LED High Bay Light
Input Voltage: AC85~265
Frequency Range: 50Hz~60Hz
Total Harmonic Distortion < 9%
Power Factor: >0.90
LED Working Voltage: DC30~36V
LED: 1 PC Bridgelux SMD LED Source
System Consumption: 127W
LED Consumption: 110W
LED Luminous Efficiency: 75~90 lm/W
LED Initial Flux: WW: 8, 160lm PW: 8, 280lm CW(: 8, 640lm
Beam Angle 120 Degree
Lamp Efficiency: >75%
Average Illuminance: Height of 4 mete: 64.1 lux
Height of 6 mete: 28.6 lux
Height of 8 mete: 15.6 lux
Illuminance Area: Height of 4 meter: Diameter 10 M
Height of 6 meter: Diameter 16 M
Height of 8-meter: Diameter 21 M
Illuminance Uniformity: >0.5
Color Rendering Index WW: Ra>68, PW, CW: Ra>75
Light Distribution: Sysmmetric/ Circle
Junction Temperature: < 80 centigrade
Operation Temperature from -40 centigrade to + 55 centigrade
IP Ggrade: IP65
Life Span: At least 50, 000 hours
Connect Wire: L/N/G
Housing Material: Aluminum
More options for 50, 60, 70, 80, 90, 100, 120W
Item Number BL-IL-515-100W
Voltage 85~265V AC
Lumens WW: 6, 800lm
NW: 6, 900lm
CW: 7, 200lm
Average
Illuminance
Height of 4-meter:   53.8 lux
Height of 6-meter:   24.6 lux
Height of 8-meter:   13.6 lux
Dimension Φ 500× 371H mm
Beam Angle 120°
Weight 6.2 kg
LED Type SMD Bridgelux
Power
Consumption
100.0W
Note More options for 50, 60, 70, 80, 90 and 120W
Prod Model: BL-IL-515-120W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty: 3 Years
Life Span: 50, 000 Hours
CRI: Ra80
Power Factor: 0.8
Certificate: CE, RoHS, C-Tick
Outdoor Applicaiton: IP65 Qualified
LED Chip: Bridgelux
Wattage: 50, 60, 70, 80, 90, 100, 120W
Weight: 5.3kg
Voltage: 85~265V AC
IP Rating: IP65
Certification: CE&RoHS, IP65
Company Profile

Bravoled Lighting Manufacturing Co., Limited was founded in 2006 and specializes in development, design, manufacturing and sales of indoor and outdoor LED lighting fixtures, is located in Shenzhen with workshop of 25, 000 square feet and 100 employees, products are mainly ship to Europe, USA, Canada, Australia, and Japan, ect, and all product to Japan with PSE certification. Monthly capacity is approx. 30, 000 units, As one of professional LED lighting products manufacturers, Bravoled owns advanced production facilities and strong product development capabilities, always pursuits high product quality and best service level, constant improvement and innovation, Bravoled Indoor lines mainly cover LED tube light, LED spotlight, LED global bulb, LED Ceiling light etc. Outdoor lines mainly cover: LED floodlight, LED streetlight, LED high bay light, Lighting source are always imported brand name such as, CREE, SemiLED, Bridgelux and Lumenmax etc., all of products are IEC and EMC standard qualified and CE, Rhos, C-tick FCC, UL, cUL, DLC, Energy star, PSE certified.
