275W White Road LED Street Light with Bridgelux Chip
| Price: |
US $ 242.86-250.38/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |

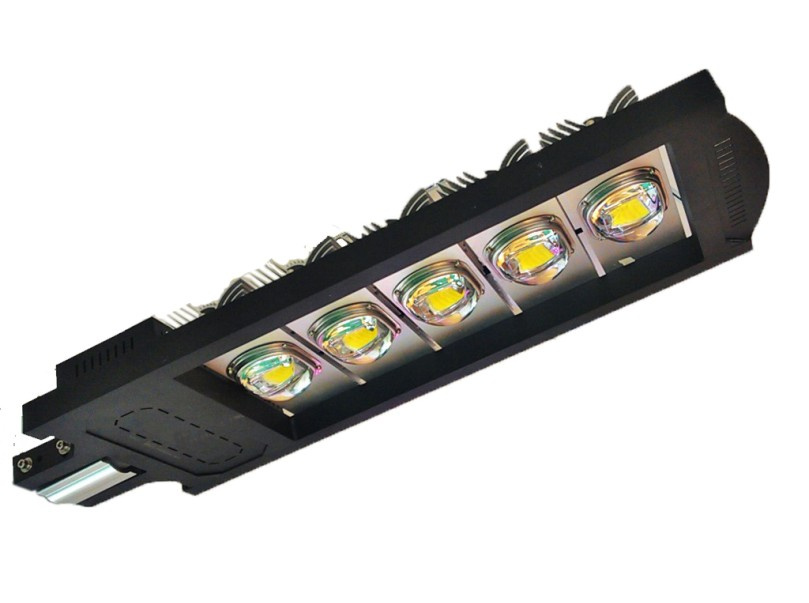

275W white road LED Street Light with Bridgelux chip.
Modular design is used in the product.Every light source is independent.So that it will greatly reduce maintenance costs.
Product Features:
1)Owning the independent national design patents and utility model patents.
2)LED Chip:Bridgelux chip .
3)Good Heat Dissipation,High Stability.
4)Light Efficiency:90LM/W.
5)Enviromental Friendly.
| Model | LC-L002-5-275 | LC-L002-5-300 |
| Power | 275W | 300W |
| LED Module Quantity | 5 |
| Total Flux | 16200LM | 18000LM |
| Color Temperature | 2500K~6500K |
| Color Rendering Index | CRI≥75 |
| Input Voltage | AC85~277V/DC127~431V |
| Power Efficiency | 92% |
| Power Factor | 0.98 |
| Total Harmonic Distortion | <15% |
| Power supply Withstand Voltage | Conform to 4KV Surge Immunity Level(IEC61000-4-5)I/P-O/P:3.75KVAC,I/P-FG:1.88KVAC,O/P-FG:0.5KVAG |
| Power Supply Safely Standards | UL8750,TUV EN61347-7,EN61347-2-13,PSE J61347-1,J61347-2-13 |
| Power Supply Compatible with Standard | EN55015,EN55022 class B,EN61000-3-2 class C,EN61000-4-2,3,4,5,6,8,11 ,EN61547 |
| Working Temperature | -40ºC~55ºC |
| Humidity | 10%~95% |
| IP Rating | IP67 |
| N.W. | 14kg |
| Product Size | L1006*W338*H100mm |
A. Light body:
1.Own independent the national design patents and the utility model patents;;
2.Anti-typhoon, anti-wind, anti-corrosion, waterproof grade IP67;
3.Structure adopts modular design that is easy to install and maintain;
4.Because of the low thermal resistance of structural design and the professional thermal design, the thermal performance of our products are superior to other similar products;
5.According to different pole's elevation, the angle can be adjusted for the different width of the road.
B. Light distribution:

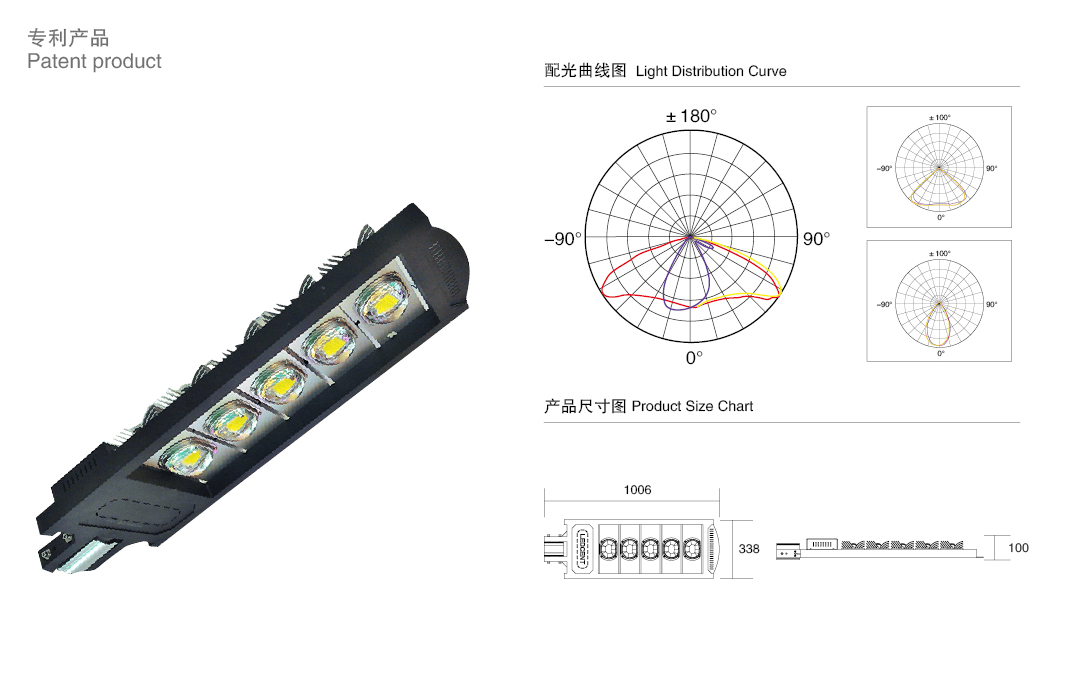

1.Adopting the international advanced LED rectangular optical technology, the light can form the 4: 1 rectangular light sopt, so that it will be able to most efficiently illuminate the floor;
2.Own the scientific lamp light distribution technology, the unique fluorescent powder formula,the advanced packaging technology, the high brightness imported chip;
3.the led lamp's efficiency can reach 115lm/W;
4.Because of no adverse glare, no flicker, eliminating adverse ordinary lights glare caused by glare,tje Ledcent's street light can reduce the visual fatigue sight interference to improve the safety of driving.
C. Power Driver:
1.The street lamp's lifetime mainly depends on the power and generally is 2-3 years in the market. But using the patented technology and importing the high-quality electronic components ,the LEDCETN Photoelectric can make the power's lifetime up to 5 years;
2.The LEDCENT's power can provide input overvoltage, under voltage , overcurrent ,lightning and short circuit protection function;
3.Multi-channel supply and reliable driver circuit is not only to ensure the stability of the LED work, but also provide convenience for the control of the LED power's consumption.
D. Environmental friendly:
1.The gradient type intelligent dimming system can save the energy that let the lamp light in full power about 5 hours before the night and has half power in the remaining time.
2.Being compared with the traditional sodium lamp, the LEDCENT's led lamp energy saving up to 70%;
3.No lead, no mercury and other pollution elements, no environmental pollution.
| Prod Model: |
LC-L002-5-275 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
275W White Road LED Street Light |
| Whole Module Quantity: |
90lm/W |
| Lifespan: |
50000h |
| Warranty: |
3years |
| N.W.: |
14kg |
| Product Size: |
L1006*W338*H100mm |
| Power Supply: |
AC |
| Color Temperature: |
Pure White |
| Lamp Body Material: |
Aluminum Alloy |
| Application: |
Garden |
| IP Rating: |
IP67 |
| Certification: |
LVD |
| With Light Source: |
With Light Source |
| LED Chips Brand: |
Bridgelux |
| Power: |
275W |
| Input Voltage: |
AC85~265V |
