Home LED Light Products 25W Energy Saving All in One Solar LED Street Light

25W Energy Saving All in One Solar LED Street Light

25W Energy Saving All in One Solar LED Street Light
Price: US $ 120-130/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
       25W  Energy saving all in one solar led street light

                                5W 8W 12W 15W 20W 25W 30W 40W 50W 60W
Features :    25W  Energy saving all in one solar led street light
1,Easy installation. No cable needed
2,Lithum-ion LiFePO4
3,High efficiency Mono solar panel
4,Famous brand LED chip from EPISTAR and Bridgelux
5,Mounted convenient, pole, wall, tree etc
6,Light output can be adjusted automatically by a built-in infrared sensor
7,Modularity design. Easy assemble and maintenance
8,Compact volume and light weight design saves freight cost and installation cost
9,Rust-proof, dustproof and IP65 waterproof Safety and reliability


Specification:    25W  Energy saving all in one solar led street light

Model

NSP08 (with sensor)

NSP12 (with sensor)

NSP15 (with sensor)

LED Light

Max power

12V 8W

12V 12W

12V 15W

Led chip

EPISTAR, Taiwan

Lumen (LM)

800-880Lm

1200-1320Lm

1500-1650Lm

Life time

50,000hours

Solar panel

Max power

18V/15W

18V/18W

18V/25W

Solar cell

High efficiency, Mono

Life time

25years

Battery

Capacity

6AH

6AH

10AH

Type

Lithum-ion LiFePO4

Life time

5 years

Charging

By sun

6-10 hours effective sunlight

Lighting

Dimming power

>24 hours

Work temp

Range(ºC)

Charging:0ºC~+60ºC, discharging: -20ºC~+60ºC storage:0ºC~+45ºC

Colour temp

Range(k)

6000-6500k

Height

Range (m)

3-4m

3-4m

4-5m

Spacing

Range (m)

8-10m

8-10m

10-15m

Work mode

Customized available

Light on at dusk, light off at dawn auto. PIR motion sensor detection. Full power lighting when a human move in the sensors range. 30% power lighting when a human move out.

Material

Aluminium alloy

Certificate

CE / ROHS / IP65

Warranty

3years

Packing & Weight

Product size(mm)

504*325*85

746*325*135

Product weight

6.5kg

6.5kg

8.2 kg

Carton size(mm)

560*390*150

560*390*150

815*390*210

GW .for carton

7kg

7kg

9.3 kg

Container Load

20GP

915sets

915sets

462sets

40HQ

2193sets

2193sets

1118sets


Model

NSP20 (with sensor)

NSP25 (with sensor)

NSP30 (with sensor)

NSP40 (with sensor)

LED Light

Max power

12V 20W

12V 25W

12V 30W

12V 40W

Led chip

Bridgelux , USA

Lumen (LM)

2400-2600Lm

3000-3250Lm

3600-3900Lm

4800-5200Lm

Life time

50,000hours

Solar panel

Max power

18V/45W

18V/50W

18V/60W

18V/60W

Solar cell

High efficiency, Mono

Life time

25years

Battery

Capacity

18AH

21AH

21AH

24AH

Type

Lithum-ion LiFePO4

Life time

5 years

Charging

By sun

6-10 hours effective sunlight

Lighting

Dimming power

>20hours

Work temp

Range(ºC)

Charging:0ºC~+60ºC, discharging: -20ºC~+60ºC storage:0ºC~+45ºC

Colour temp

Range(k)

6000-6500k

Height

Range (m)

5-6m

5-6m

6-7m

6-7m

Spacing

Range (m)

18-20m

18-20m

20-25m

20-25m

Work mode

Customized available

Light on at dusk, light off at dawn auto. PIR motion sensor detection. Full power lighting when a human move in the sensors range. 30% power lighting when a human move out.

Material

Aluminium alloy

Certificate

CE / ROHS / IP65

Warranty

3years

Packing& Weight

Product size(mm)

1130*330*130

Product weight

17.8kg

18.3kg

18.7kg

19kg

Carton size(mm)

1190*390*220

GW .for carton

18kg

19kg

19kg

20kg

Container load

20GP

230sets

230sets

230sets

230sets

40HQ

600sets

600sets

600sets

600sets

ModelNSP50 (no sensor)NSP60 (no sensor)
LED LightMax power12V 50W12V 60W
Led chipBridgelux , USA
Lumen (LM)6000Lm7200Lm
Life time50,000hours
Solar panelMax power18V/80W18V/90W
Solar cellHigh efficiency, Mono
Life time25years
BatteryCapacity39AH42AH
TypeLithum-ion LiFePO4
Life time5 years
ChargingBy sun6-10 hours effective sunlight
Lightingdischarge>12hours>12hours
Work tempRange(ºC)Charging:0ºC~+60ºC, discharging: -20ºC~+60ºC storage:0ºC~+45ºC
Colour tempRange(k)6000-6500k
HeightRange (m)8-9m8-9m
SpacingRange (m)25-30m25-30m
Work modeCustomized availableTime control, Full power +dimmingTime control, Full power +dimming
MaterialAluminium alloy
CertificateCE / ROHS / IP65
Warranty3years
Packing & WeightProduct size(mm)1080*450*1531080*450*153
Product weight24kg26 kg
Carton size(mm)1190*520*2201190*520*220
GW .for carton24.5kg26.5kg
Packs Containers20GP231sets231sets
40HQ516sets516sets

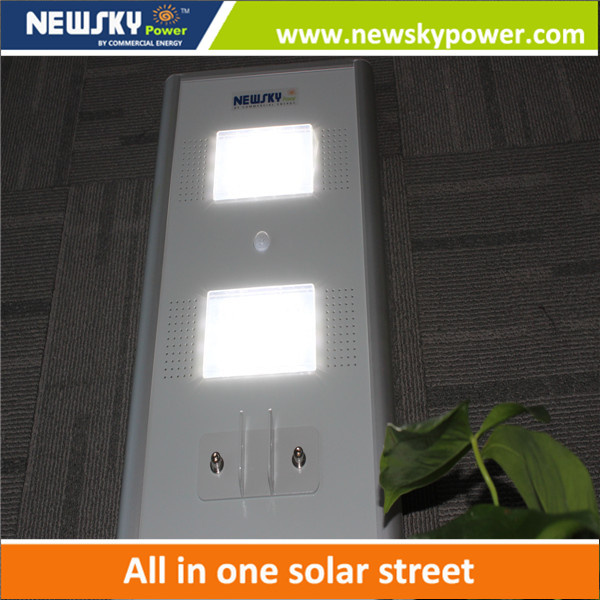

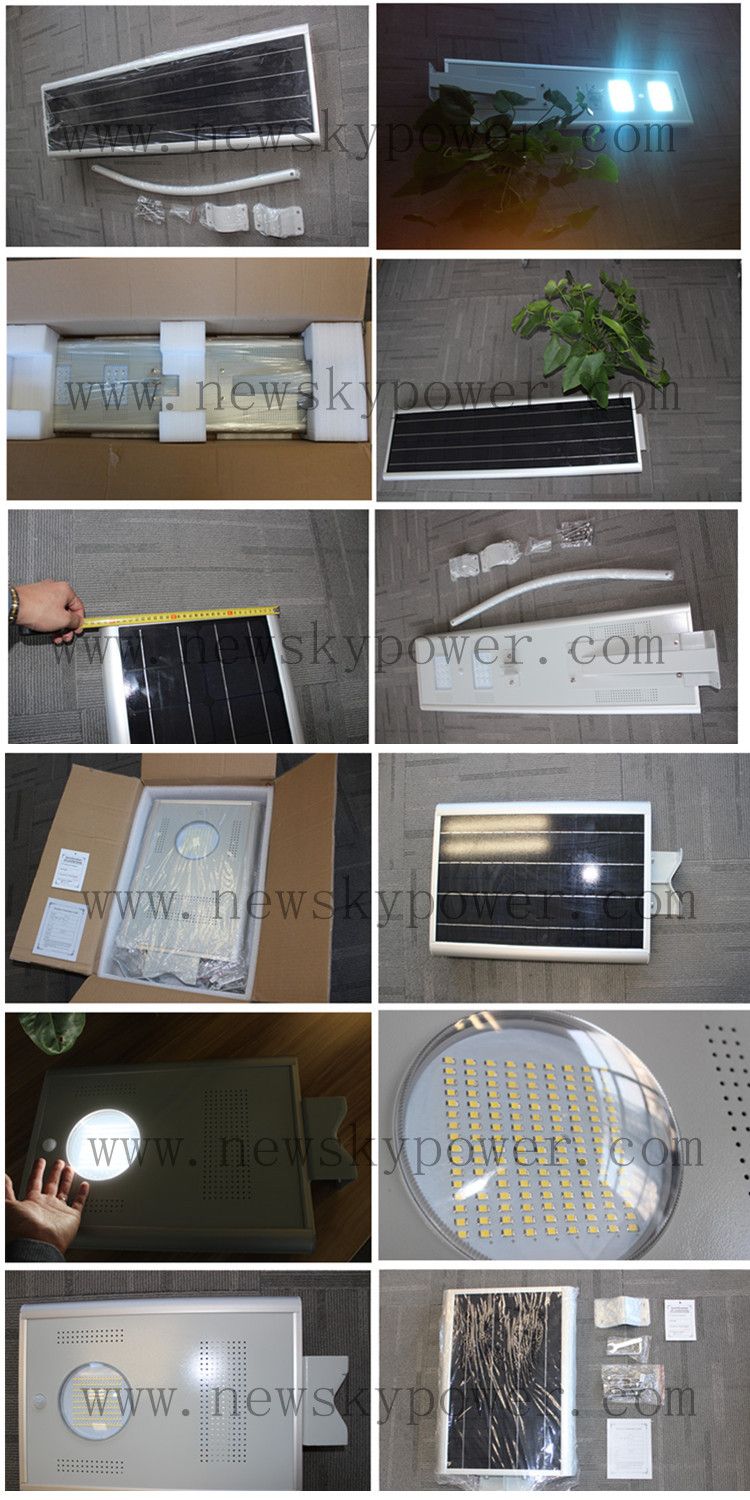

 Detail pictures show: 25W  Energy saving all in one solar led street light

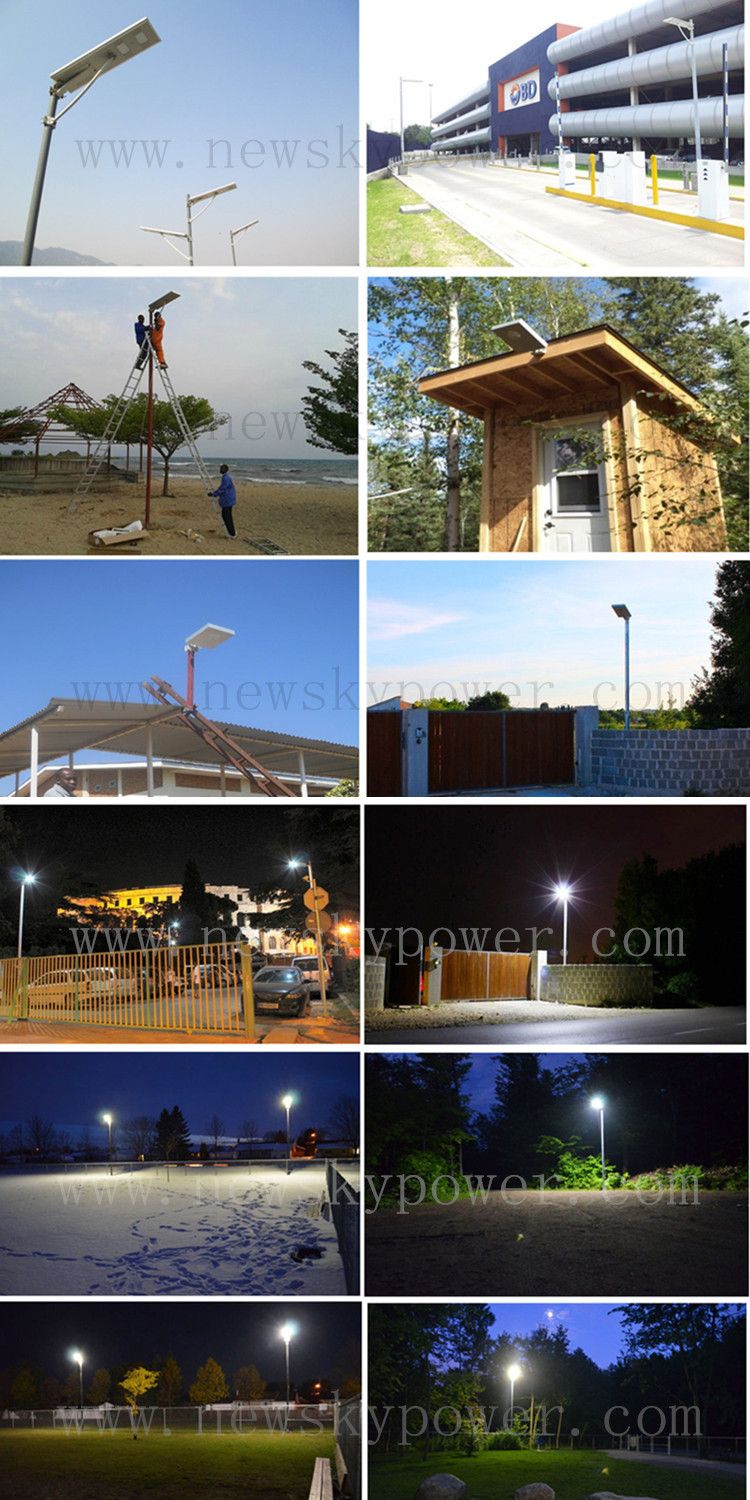

Applications in our daily life:  25W  Energy saving all in one solar led street light

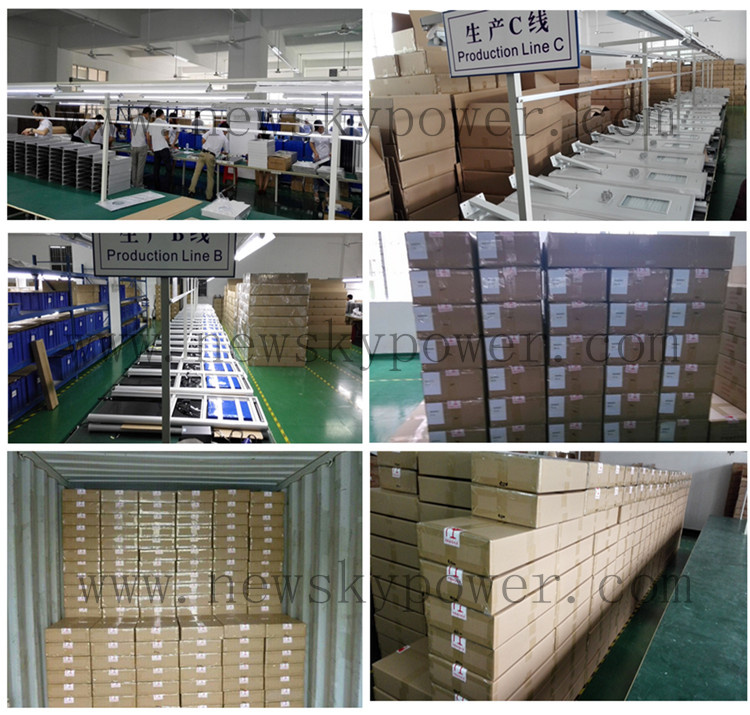

Workshop Show:   25W  Energy saving all in one solar led street light
FAQ:

1,Could you provide pole?
Normally, we don't supply pole.
Most of our clients purchase pole from local, it will be cheaper if without shipping cost.
The top diameter of pole as below:
NSP8W,NSP12W,NSP15W: diameter 40-100mm

NSP20W,NSP25W,NSP30W,NSP40W,NSP50W,NSP60W: diameter 80-110mm


2,Does it work on foreland?

Yes, it is suitable for marine. The shell material is Aluminium alloy , the inside components has anti-corrosion treatment. The waterproof is IP65.

3,How long it can work in ?
it can work continuously in 3-4 rainy days.

4,Could the angle of the light be changed?
The angle between light and pole is fixed, can not be changed, it is optimized angle.
NSP8W-NSP15W:     95°
NSP20W-NSP60W:   105°


5, What is the distance between light and human?
The detection distance between LED light and human is 10-12 meters.


Contact Information:
Smile
Tel:+86-532-86943160

Mob:+86-15854292836






Prod Model: 5W 8W 12W 15W 20W 25W 30W 40W 50W 60W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Power: 12V 60W
LED Chip: Bridgelux, USA
LED Light Life Time: 50, 000hours
Solar Cell: High Efficiency, Mono
Battery Time: 5 Years
Material: Aluminium Alloy
Warranty: 3years
Work Mode: Customized Available
Type: Lithum-Ion LiFePO4
Power: ≥30W
Light Type: Solar
Voltage: 12/24V
Charging Time (',H): 12
Usage: Road;Park;Center
Lamp Body Material: Aluminum Alloy
Color Temperature: Cool White
IP Rating: IP65
Technics: Painted Matte
Illumination Time: 12h
Cell Type: Ni-MH Battery
Certification: RoHS
Light Source: LED Lamp
With Light Source: With Light Source
