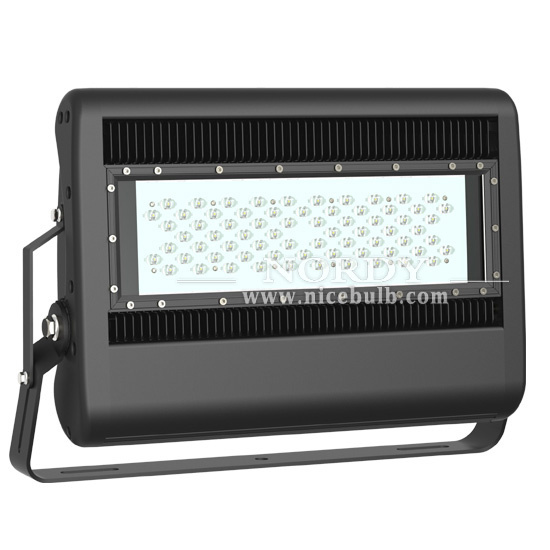

250W LED Outdoor Light LED landscape light LED flood light
LED Driver
Meanwall HLG-150H 2PCS
Input Voltage
90-305 VAC, 50/60 Hz
LED Chips
Philips Lumileds/Cree/LG/OSRAM
LED QTY
120 pcs
LED Power
250W
Total System Power
270W
Led Luminous Efficiency
130-140lm /W
Light Lighting efficiency
≥110 lm/W
Led Initial Luminous Flux
28350 Lm
Illuminance Uniformity
>0.8
Color Temperature
3000K-7000K
Color Rendering Index
Ra≥70
Light Distribution
Symmetric/Rectangle (60*135 degree)
Illuminance Design
LED+lens
LED Junction Temperature
≤70ºC (@ Ta=30ºC)
Working Temperature
-40ºC ~ 45ºC
Working Temperature
-25ºC ~ +65ºC
IP Rating
IP65
Net weight
≈ 9 Kg
Life-span
>50000H
Power Cable
OEM
Remark:The light parameters may different between different color temperature, tolerances ≤ 5%.
The testing is based on Phlips Luxeon LED 5500K.
Installation Guaideline
Take out the lights from packing box.
Fix the light on mounting frame and keep stable placement. For safety, make sure the power cables are
connected by electricians. The power cord is 1.0MM2 triple shield wire, the brown is live wire, blue is neutral
wire, and yellow/green is earth wire
Maintenance / Repairing Instructions:
Make sure the power has been turned off before maintenance or repairing.
Clean the glass cover regularly to maintain high transmission of light.
Clean up the dust from the glass cover and heat-sink regularly to keep sound heat dispersion.
Be careful not to use water or corrosive solution for cleaning, preferably with a dry cloth.
When install or replace power supply, directly open the back cover with a screwdriver, then remove the
power supply.
On DC power output, the red cable corresponds to the positive power polarity, and black corresponds to
The negative. Pay attention do not reverse the positive and the negative in any circumstance.
