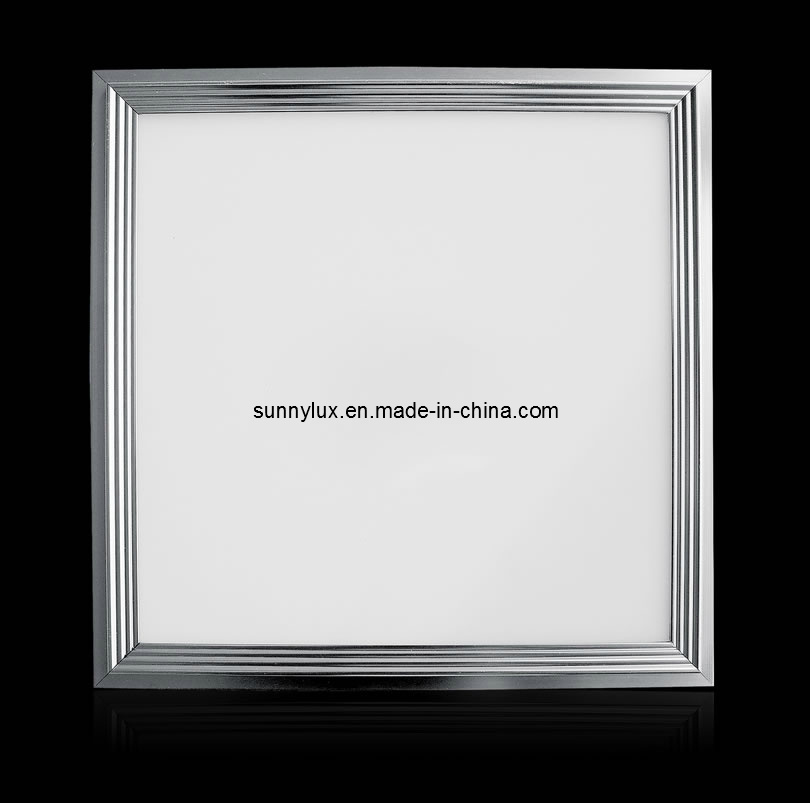

24W LED Square panel light
Power: 24 W
Light Source: LED
Item Type: Panel Lights
LED Light Source: 3014
Warranty(Years): 2
Input Voltage(V): AC85-265
Body Material: Aluminium-alloy Frame
Cover Material: Micky-white Diffuser
Power Factor: ≥ 0.9
Colour Temperature(K): 2800-7500
Lumens: >70lm/ w
Driver: Outside
Certification: CCC, CE, EMC, LVD, RoHS
Working Lifetime(Hour): 50000
Working Temperature: -25 - 45
Original: China
1. Special different view angles, mixing lighting design. Great light evenness, no dark zones.
2. High light output at a reduced energy consumption of up to 50%.
3. Over 40000 hours life expectancy.
4. Wide angle of deflection with even light distribution.
5. No start-up time, no flickering, no humming.
6. High efficiency constant current driver with built in overheat protection that remains stable
At a wide range of input voltages.
7. Environmentally friendly, mercury and lead free.
8. Causes no electromagnetic interference.
9. Easy installation.
10.2 years warranty
Installation:
1. Turn off the power.
2. Connect the commercial power (85V-265V) with the input of the matched power supply, make sure that no copperware exposed.
3. Connect matched power supply and panel light together through the DC plug.
Insure safe connection.
4. Fix the panel light and power supply at suitable place.
5. Turn on the power, can immediately use.
Attention:
1 Use indoor or some place where no water, don't put them in wet or dam place
2 Please check the local voltage compliance product requirements
3 Installed in a well-ventilated place to ensure appropriate environmental temperature
4 When installation, try to avoid the minefields, strong magnetic field and high-pressure region
5 Always turn power off at the circuit breaker before rewiring your fixture
