Product Description
Voltage: AC100~240V, 50/60Hz
Rated power consumption: 250W
LED: 24*10w (4 in 1 leds, 3 in 1 can option)
Rated life: 60, 000~100, 000 hours
Beam angle: 10° ~45° (optional)
Control modes: DMX 512 / master\slave / sound control / auto control
Channels: 6/7
Fixture dimension: 27*26*38(cm)
Packing dimension: L80*w54*h41.5cm
Net weight: 3.5kg
Gross weight: 4kg
Housing Material | Aluminum |
Housing Color | Black |
Aperture Cover | PMMA |
Operating voltage | 90-130V AC / 176-254V AC |
Power | Switch Power Supply |
LED current | 1400mA |
Control Modes | Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization |
DMX Channel | 7CH/4CH |
Control panel | Digital 4 characters alphanumeric |
Connector | 3-PinXLR (In and Out) |
NO. of LED | 24*10W RGBW 4IN1 |
LED Life Time | 80000-100, 000 hours |
Beam Angle | 25° /30° /45° /60° |
Power Consumption | 240W |
Light Projecting Distance | 5-230M |
IP Rating | INDOOR, |
Operating Temperature | -20º C+45º C |
Dimensions | 27*27*37(cm) |
Weight | 4.5 (kg) |
Packing Dimension | 27*27*37(cm) |
Gross Weight | 4.8(Kg) |
Compatibility: |
1. Color Range: 16.7 million additive RGBW colors; continuously variable intensity (256× 256× 256=16777216) |
2. Dimming 0-100%with regulated constant color control |
3. Strobe: 10 Flashed per second (any color) |
4. Function: it is max mix color, color change, color' s gradual change, flash, speed/luminance the adjustable, and save function |
5.7channel Mode and 4channel Mode would change each other in every light |
6.7CH Mode DMX Value | CH 1 _ General dimmer (1-255, from dart to light) |
CH 2_ Red (1-255, Dimmer, from dart to light) |
CH 3 _ Green (1-255, Dimmer, from dart to light) |
CH 4_ Blue (1-255, Dimmer, from dart to light) CH 5_ White (1-255, Dimmer, from dart to light) |
CH 6_ Strobe & Color change/ color gradual change open |
CH 7 _ Strobe & Color change& color gradual change' s speed adjustment (1-255, Speed adjustment, from slow to fast) |
7.4CH Mode DMX Value | CH 1_ Red (1-255, Dimmer, from dart to light) |
CH 2 _ Green (1-255, Dimmer, from dart to light) |
CH 3_ Blue (1-255, Dimmer, from dart to light) CH 4_ White (1-255, Dimmer, from dart to light) |
8. Control modes | 0: sound activity mode |
1. DMX control mode |
2. Adjusting the color manual |
3. Adjusting the brightness manual |
4. Adjusting the strobe manual |
5. Adjusting the strobe speed manual |
6. Master-slave control mode, as the master |
7. Sound activity synchronization mode |
8, Adjustingcolor' s gradual change manual |
9. Adjustinggradual change' s speed. |
Each Package Included: |

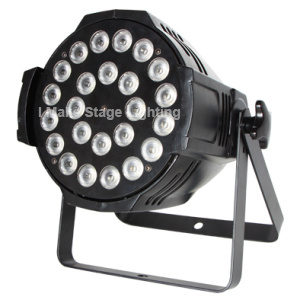

1 *LED par 64 Light with Signal Cable: 3-PinXLR DMX In and Out + Water Power cable: Power Cable screw water proof connectors in and out (2ft cable) |
1 * User Manual |
1*Power cable: 3 Pin plug and screw water proof connector on other side. (2ft cable) |
2* pyrocondensation. cannula (0.66ft = 20cm) |
1* Waterproof connector' s cover for Power cable |
