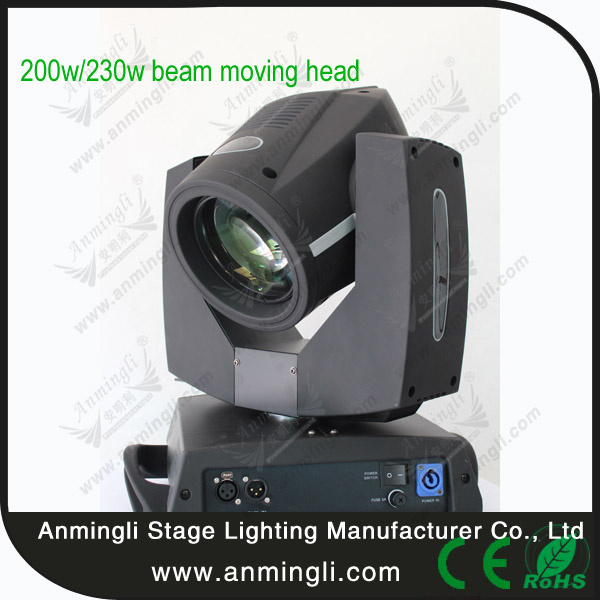

230W moving head beam light, beam moving head 230w 7r
AL-G230 BY Anmingli Stage lighting Manufactuer
230W BEAM MOVING HEAD. This is the updated version of Beam 200W. We are using the New technology of optics. And new 230W ORSAM Lamp. We are using the same Housing of beam 200W beam moving head and same Lens of 200W beam moving head, But new Tech. In order for you to have a better effects while using it. As we tested it. In terms of brightness, The 230W beam moving head is 15%-20% brighter then the 200W beam moving head.
Features:
230W Orsam discharge lamp /Yodon 7r lamp
Perfectly parallel, laser-like beam, sharply defined and free of any halo
Unprecedented brightness comparable to wattages many times higher (59, 760 lx at 20m)
Adjustable beam angle from 0 to 3.8°
Interchangeable color wheel with 14 fixed colors
Interchangeable gobo wheel with 17 fixed gobos
8-facet rotating prism
Mechanical dimmer
Frost Filter
Rapid and extensive pan and tilt movements
New, high-performance electronics
Patented Italian design
Small, lightweight and easily transported (only 48 cm X 35, 3 lbs)
Eco-friendly: Replaces far larger and more expensive spotlights
Electronic ballast fitted as standard
Technical Parameters:
Lamp Source:
Yodn/Philips MSD230W lamp
Color temperature: 8, 500K
Arerage Life: 2, 000Hrs
Input Voltage: AC90-240V 50/60Hz
Power Consumption: 280W
Control Method: DMX512, automatic and master/Slave
Channel: 16/20 CH
Display: 4-button LED digital/LCD display selectable
Optical: YiLong 3in1 optical group combination
Dimming: 0-100% linear adjustment
Strobe: Heat-proof plastic+module pressing alloy materials
Focus: ELectronic
Prism: Rotating 8-facet prism
Frost
Filter
Beam angle: 0-3.8 degree
Movement:
Pan: 540°
TilL: 270°
Pan/Tilt Resolution:
16bit
Gobos&Colors
Rotating Gobos: 1 gobo wheel with 17 fixed gobos+open
Colors: 1 color wheel with 14 fixed colors+open
Fixture Connection: 3-Pin DMX in&out, power in
Cooling: Quiet cooling fan
Packing Size:
Accessories: Power cable, signal cable
Omega safety cable and clamps
Product Size: 330*390*490mm
Packing Size: 420*480*580mm
N. W.: 17.00KGs
G W.: 19.5KGs
More questions about our products, give us a call or email or visit us.
