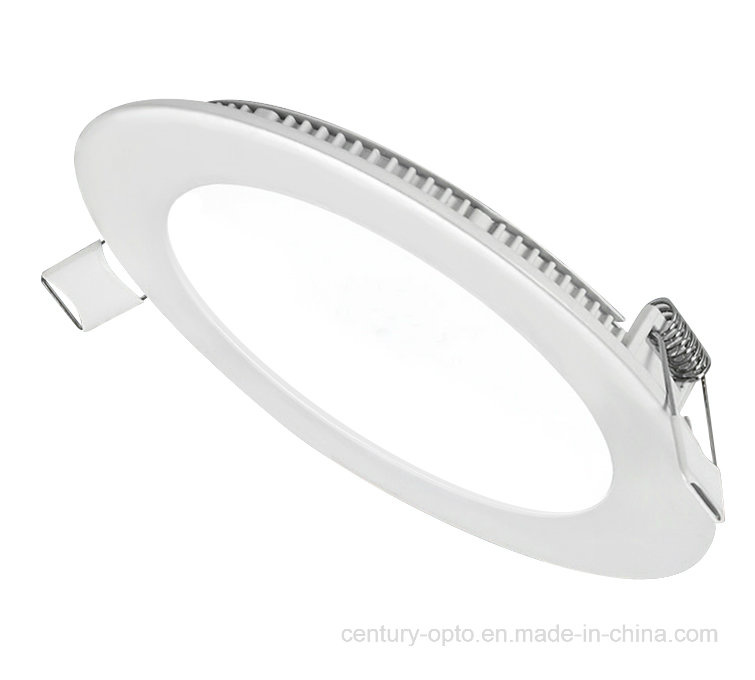

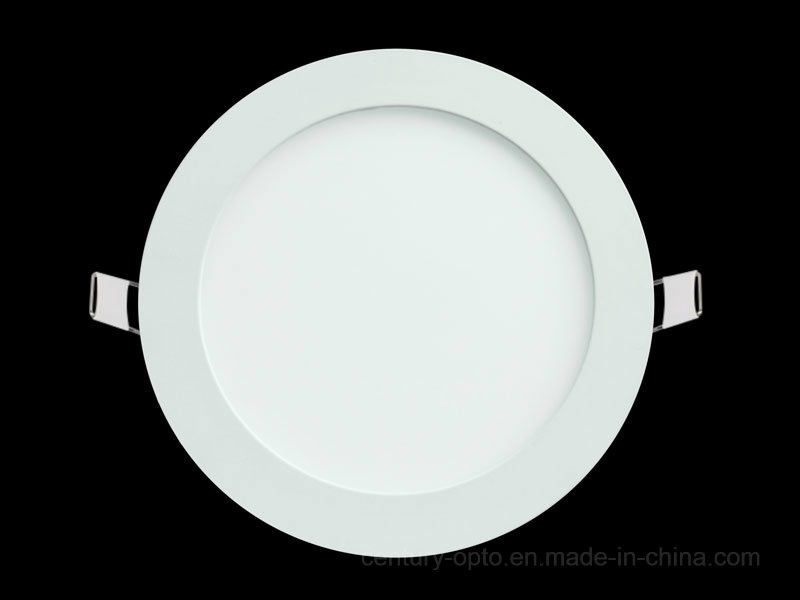

225mm Diameter 18W LED Panel Light
Price: |
US $ 5/Piece |
Trade Terms: |
FOB |
Min Order: |
100/Piece |
Pay Type: |
L/C |
Hot Sale 18W Round LED Panel Light for Indoor
LED Panel Light IntrodutionNew style embedded panel light,special design to prevent light leak. Make of supperior aluminum, perfect heat dissipation and longer life.
Model No. | BN-PL225R-18 |
Size | ø225x11mm |
Hole Size | ø200mm |
Lumen Flux | 1400lm±10% |
Power Available | 18W |
Color Renering Index | >80 |
Color Temperatur | 2800~6500k |
Lumen Efficency | 80lm/W |
Lamp Body Malterial | Aluminum |
Input Voltage | AC 100~240V 50/60Hz |
Life Span | 50,000h |
Warranty | 2 years |
Beam Angle | 110° |
Power Factor | >0.9 |
LED Source | SMD 2835 |
Lamp Color | White/Silver |

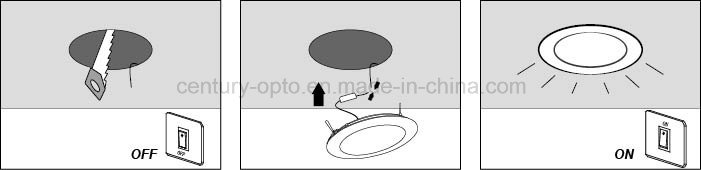

Installation:1. Cut a hole on the ceiling where the panel light will be installed
2. Install the LED driver and imbed the panel light in the hole
3. Connect the power supply and start
LED Panel Light Features:- Using high lumen SMD light source high intensity aluminum shell,fast heating.
- Using good reflectivity super thin, super bright LGP which make the lights more equally.
- Low voltage and constant current driver, no glare the light is soft.
- Launch in 0.01sec, no flashing, no noise, no radiation. Energy saving,and environmental.
- This product can show high brightness, without seeing the lamp itself.
Prod Model: |
BN-PL225R-18 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Cutout: |
200mm Dia. |
Light Source: |
LED |
Dimmable: |
Without Dimmable |
Appearance: |
Round |
Type: |
Embedded |
Certification: |
RoHS |
Voltage: |
85V-265V |
Housing Material: |
Aluminum |
Emitting Color: |
White / Warm White |
Beam Angle: |
160 |
Guangzhou BNG Optoelectronics Co., Ltd is a SMD LED professional manufactory with its own development, production, marketing & service. The products are very comprehensive, mainly including SMD LED series of TOP 3528, TOP 3020, SIDELIGHT335, SMD HI-POWER LED series, and SMD LED Lighting Bars, LED Modules, LED Tube, LED Decorated Light are popular in European & American markets. The high quality can be passed by any reliable aging test. The products can be used in many fields such as lighting decoration, car lighting & electronic display.

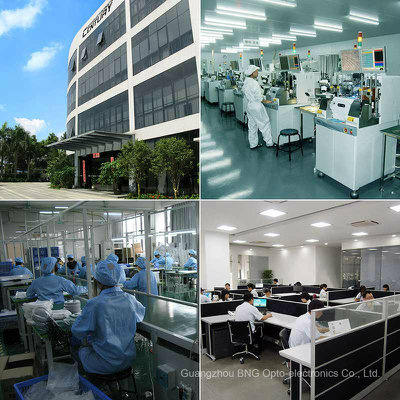

Guangzhou BNG Optoelectronics Co., Ltd have Auto-ASM die attaching machines, wire bonding machines, auto-Japan glue sealing machines, dispenser machines, packing machines which are invested totally over RMB 20 million. Till now, over 200 employees are in the company, in which including over 20 R&D staff.
Guangzhou BNG Optoelectronics Co., Ltd has its own brand "CENTURY", "BNG".
Guangzhou BNG Optoelectronics Co., Ltd has obtain ISO9001-2000 certificate and all our products have CE & RoHS certificate from SGS.
