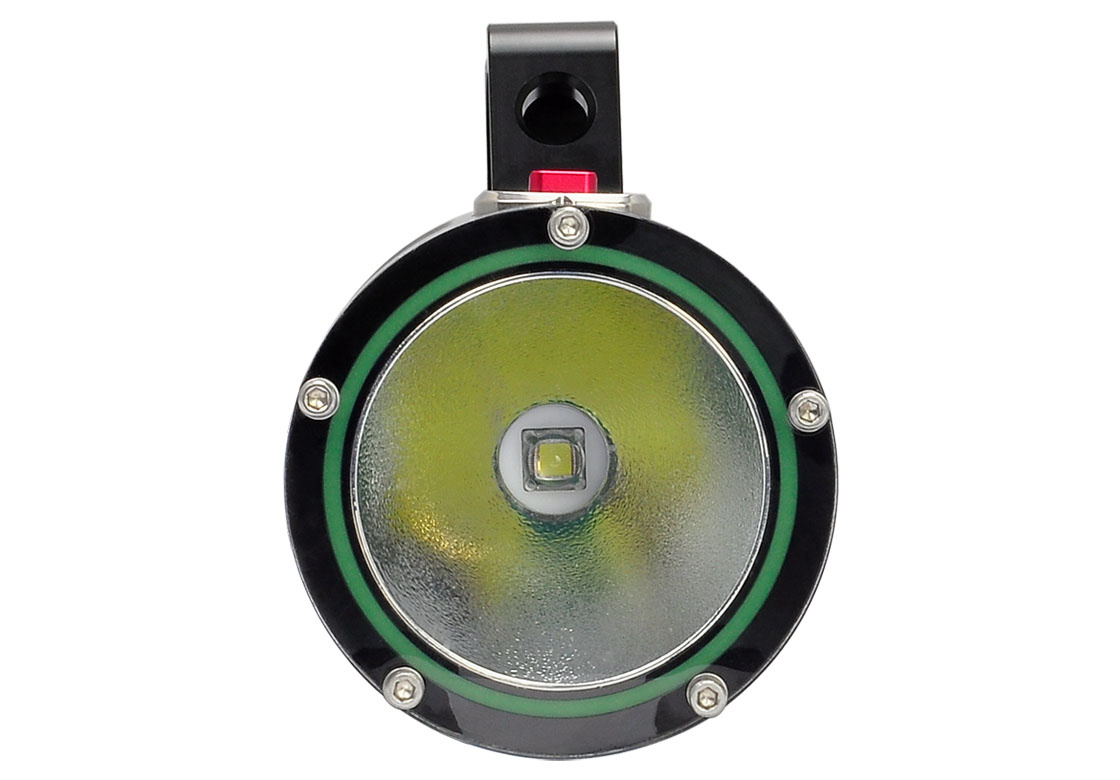

1. Model: Archon New Model WG96 2200 Lumens SST-90 LED Goodman Handle Diving Flashlight
2. Bulb: SST-90 LED *1 (max 2200 Lumens);
3. Modes: High> Low>Strobe> off
4. Runtime: : High (3.0h); Low(8.0h); Strobe (4.0h);
5. Color temperature: 6000K;
6. Reflector: Glossy Aluminum reflector;
7. Lens: 8mm Polycarbonate Board;
8. Body material: Durable aircraft-grade aluminum;
9. Angle of light beam: 8° Hot spot, 110° Periphery
10. Surface treatment: Premium Type III hard-anodizing;
11. Color: Black
12. Battery: Rechargeable Li- ion battery pack (18650 battery*6);
13. Battery Indicator: 100%-50%: Green; 50%-30%: Yellow; 30%-10%:
Red; Below 10%: Red Flashing; Below 5%: Switch off;
14. Can be charged directly on the light, with battery over-discharging
Protection, polarity reversing protection
15. Fully charging time: 8-10h;
16. With gas release valve;
17. Operation voltage: 9V to 13V;
18. Waterproof: 100 meters underwater
19. Dimensions: 213.5mm (length)* 78.0mm (dia. Of head);
20. Weight: 1300 grams (with battery pack)
21. Underwater Weight: 640 grams (with battery pack)
22. Impact resistance: 1.5M.
BATTERY CHARGING
1. Plug the charger in the wall power socket, the indicator light is green
In the free-load status.
2. Plug the port of the charger in the ports on the light. (the positive and
Negative polar doesn't matter, both ways work. )
3. The indicator light on the charger is red if the battery is not fully
Charged; It will turn green after fully charged.
4. Take out the charger and use the light.
ON/OFF
Push the switch to turn it ON.
MODES CHANGING
Successive push the switch ON-OFF within two seconds to cycle through High, Low, strobe, OFF.
SCUBA DIVING APPLICATION
Check closely for cuts, scratches, or an otherwise damaged O-ring or mating lens surface as this can cause the light to flood under pressure. Remove any salt deposits, sand, dirt, or other foreign matter from the O-ring sealing surfaces.
KEEP THE THREADS, O-RING GROOVE LUBRICATED WITH SILICONE GREASE.
CAUTION
Please put the switch sleeve on light head during transportation to prevent it from misoperation.
If the switch gets stuck, please put some washing-up liquid in the slot of the switch and push the switch back and forward several times till it move smoothly again, then clean the light in the fresh water.
Please charge the light every time after using. If it isn't used for a long time, please charge the light once every 3 months to prepare for next time using.
| Model | Archon New Model WG96 Flashlight Rechargeable |
| Bulb | SST-90 LED *1 (max 2200 Lumens) |
| Color temperature | 6500 K (white light) |
| Reflector | 8° hot spot,110° periphery |
| Lens | 8mm Polycarbonate Board; |
| Battery | 18650 rechargeable Li- ion battery *6; |
| Battery Indicator | 100%-50%: Green; 50%-30%: Yellow; 30%-10%:
Red; Below 10%: Red Flashing; Below 5%: switch off; |
| Protection | Polarity reversing protection.
Gas release valve |
Shenzhen Xiware Technologies dedicated our tireless effort to design and make world class portable illumination tools. Our premium LED flashlights have already passed CE, RoHS and IPX-8 certificates and were widely used by law enforcement agencies, public safety agencies, and individuals who desire the best flashlights available for a specific purpose or task-camping, fishing, hunting and ECI (Everyday Carrying Item) use. We combine the ingenuity and craftsmanship to create Xiware legendary lights reputed all around the world.
Our LED flashlights successfully integrated bright beam, constant current regulation circuit and low operating costs all in a very stylish design, became the standard of high quality flashlights.
Xiware is adding more and more new models to our ever expanding product line. Though challenges are ever increasing, with every new Xiware product we strive to bring our customers the highest quality tool possible.
