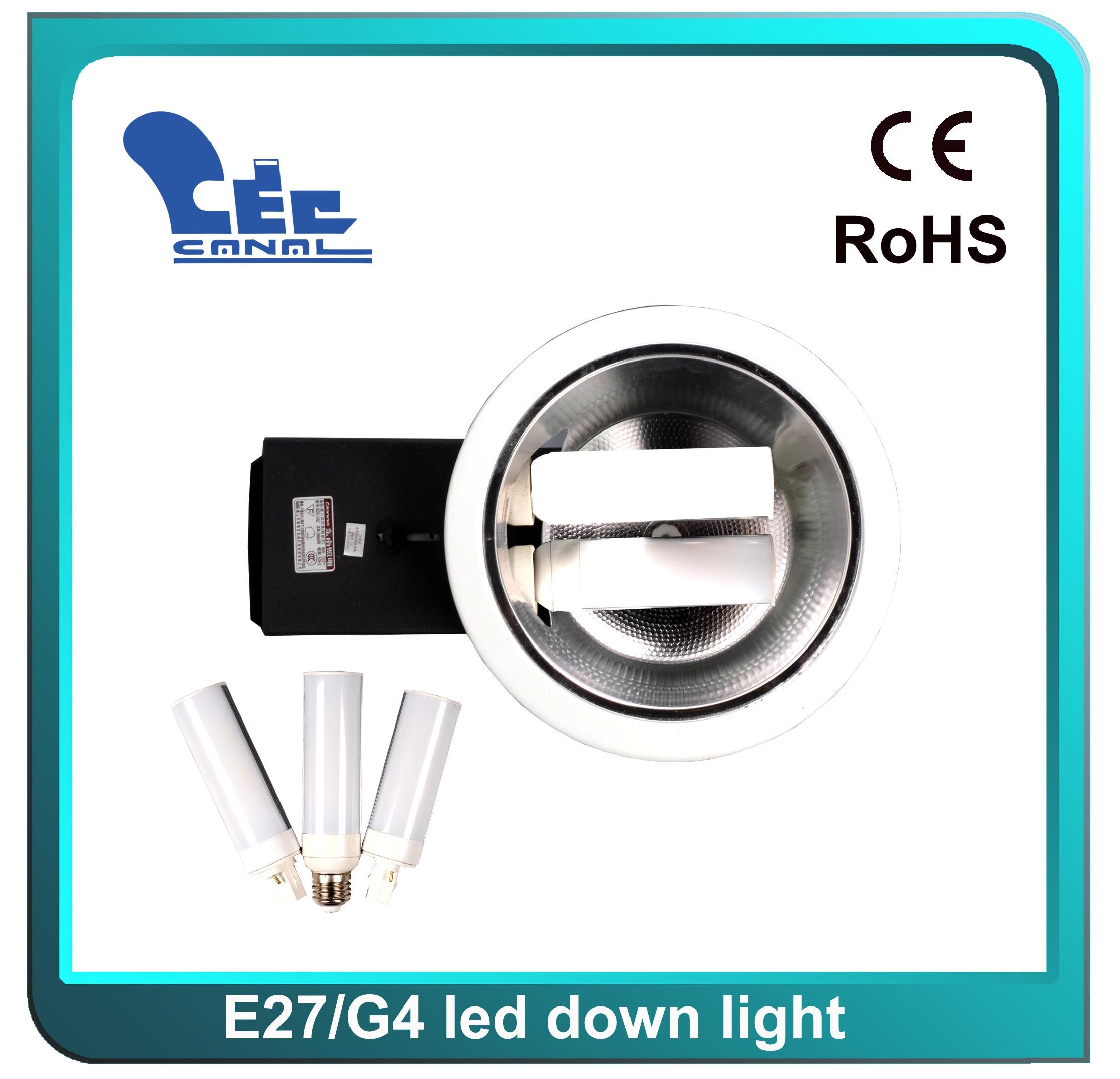

Home LED Light Products 20W LED Down Light (G4 or E27 LED Lamp)

20W LED Down Light (G4 or E27 LED Lamp)

20W LED Down Light (G4 or E27 LED Lamp)
Price: Negotiable
Trade Terms: FOB
Min Order: 100/Piece
Pay Type: L/C,T/T
LED down light

1. Model No.: CN-HC01-PW20-H/CN-HC01-WW20-H
2. Input Voltage: AC96-265V/DC12V
3. Frequency: 50/60Hz
4. Input Power: 20W
5. Luminous Flux: 1400-1600lm
6. Rendering Index: >75
7. Beam angle: 120 deg
8. Power factor: 0.9
9. Working Temperature: -30-+50
10. Housing material: Aluminum &PC
11. Assembly Diameter: 210mm
12. Color Temperature: Warm white 2800-3000K; Pure white 5500-6000K
13. Certificate: CE & RoHS

[Products features]

1. Good optical design: Radiating a soft, uniform light with improved even diffusion with no circular appearance.

2. Light casing with high quality aluminum alloy materials is beautiful and simple;

3. No UV, no radiation and environmental protection;

4. In general the life span is more than 35, 000 hours(Light is less than 8 hours a day).

[Application]

Widely used in super market, hotel, coffee house, hank, meeting room, exhibition hall and living house.
Model   No. Power LEDs type LED Quantity Base type Voltage Color temperature Luminous flux
CN-HC01-WW15-H 15W SMD3528  (3 chips) 70 pcs E27/G4 AC96-265V 2800-3000K      (Warm white) 1125-1275lm
CN-HC01-PW15-H 15W SMD3528  (3 chips) 70 pcs E27/G4 AC96-265V 5500-6000K
(Pure white)
1200-1350lm
CN-HC01-WW10-H 10W SMD3528  (3 chips) 54 pcs E27/G4 AC96-265V 2800-3000K
(Warm white)
750-850lm
CN-HC01-PW10-H 10W SMD3528  (3 chips) 54 pcs E27/G4 AC96-265V 5500-6000K
(Pure white)
800-900lm
CN-HC01-WW20-H 20W SMD3528  (3 chips) 2*10W E27/G4 AC96-265V 2800-3000K      (Warm white) 1500-1700lm
CN-HC01-PW20-H 20W SMD3528  (3 chips) 2*10W E27/G4 AC96-265V 5500-6000K
(Pure white)
1600-1800lm
CN-HC01-WW30-H 30W SMD3528  (3 chips) 2*15W E27/G4 AC96-265V 2800-3000K      (Warm white) 2250-2550lm
CN-HC01-PW30-H 30W SMD3528  (3 chips) 2*15W E27/G4 AC96-265V 5500-6000K
(Pure white)
2400-2700lm
Beam angle: 120 degree Manufacture Experience: 15years
Certificate: CE/ROHS Size: 40*154mm (one lamp)
Life: 20, 000Hours;
Power Factor: 0.85
Warranty: 2 Years
Color rendering index: 0.8 Material: Aluminum+ Glass
Trade Terms: FOB/EWX/CIF Reflector efficiency: 90%
NON-dimmable Delivery: 3-20Days According quantity
  Suitable for 6-8 inches down light shell
Prod Model: CN-HC01-PW20-H/CN-HC01-WW20-H
Markets: North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Size: 8 Inches
Assembly Diameter: 210 Mm
Base Material: Metal
Shape: Round
Light Source: LED
Voltage: 96-265V AC
Cover Material: None
Beam Angle: 120
Certification: CE&RoHS
Jiaxing Canal Optoelectronic Technology Co., Ltd.Is one of the highest-regarded amongst high-tech enterprises from an R&D, production, sales, and services standpoint.The main products including LED spot lamp, LED tube, LED bulb, LED down light, LED street light, LED industrial light and LED plant growing light ect.

The company brings together a highly-experienced professional technology team from both mainland China and Taiwan from the electronics, optical, electrical, material, environmental protection, and many directly related areas of operations and backgrounds;This having been the case from the initial set-up of the company from its infancy to the present time.It has built strong partnerships with universities and colleges, developed a focus on leading the world in revolutionary lighting products, especially in LED core technologies in order to enable major breakthroughs and modern challenges, has especially focused on solving the constraints arising in LED lighting product development - such as addressing issues relating to high brightness, low-light attenuation with a prolonged life in environmentally-friendly LED-utilizing products - and is committed to environmental protection and energy savings for all walks of life where it actively joins hands in creating a friendly and energy-saving, harmonious society.

The company and its staff adhere to a "green lighting, energy saving, highest quality, and best priority of services provision" business philosophy with the aim at producing high-energy-savings, long-life LED lighting products of every kind with the following standards in mind.
