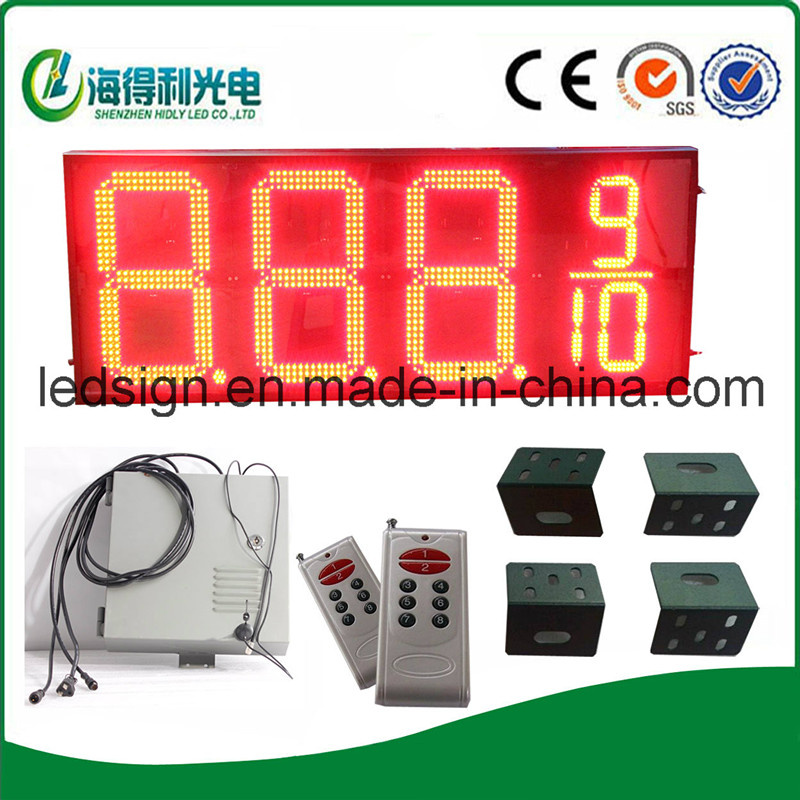

Home LED Light Products 20inch Red Color 88898/10 Four Digit LED Numeric Display (GAS20RZ88889/10TB)

20inch Red Color 88898/10 Four Digit LED Numeric Display (GAS20RZ88889/10TB)

20inch Red Color 88898/10 Four Digit LED Numeric Display (GAS20RZ88889/10TB)
Price: US $ 360-400/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
20inch Red Color 88898/10 Four Digit LED Numeric Display (GAS20RZ88889/10TB)
LED number display is mainly use at gas station to show the gas price.which is use the remote to change the price,High brightness.save energy,automatic adjustment brightness and son on are the features of led number display.if you have any interesting in hidly led number display. please contact to us Brenda directly.


Brenda
Tel: +8618028962817


Specifications for four digit led numeric display
1. High brightness and quality
2. Enerqy--savor
3. CE or RoHS
4. With RF controller
5. Wide range-8inch, 10inch, 12inch, 16inch, 18inch and 20inch
Four digit led numeric display is programmed by SCM and control the high-brightness LED to display many different price digits. It is energy saving, environmental protection, easy-operation, catch eyes, it is new-style gas price display.
-----------------------------------------------------------------------------------------------------------------
Specifications for four digit led numeric display
1. Highly brightness LED are arranged to several 8 figure, the digits can be up to 32PCS.
2. Single side, double sides, three sides, four sides.
3. Support remote editing, 30m distance for infrared communication; Support PC program and wireless communication, distance can be 800m.
4. Adjusting the brightness automatically by skylight brightness, the display can adjust 8levels of brightness automatically between evening and daytime
6. Visual distance. 100m
7. Visual angle. 90degree
8. Brightness. 4000CD/m2
9. Color. Red, green, amber, white or customized color.
10. Digit mesurement. 12.5inch(digit height) 1inch=25.4mm=2.54cm
11. Single dimension. 233mmX325mm
12. Location hole dimension. 218mmX310mm
13. Single 8 figure weight. 400g
14. LED quantity of one 8 figure. 250PCS
--------------------------------------------------------------------------------------------------------------------
Technical info for four digit led numeric display
1. Controller power. 1.5watt, one controller can drive 32PCS"8"figure
2. Max power of 12.5inch is 12watt
3. Voltage. AC110 or AC220.
4. One power of 12V30A can connect 14PCS LED signs(360*0.8/20=14)
5. Method of controlling LED brightness. Manual operation(by remote controller)and automatically control(by light sensor to adjust brightness higher during daytime, and lower during evening to save energy. )
6. Component.: Main board(one controller can drive up to 32PCS of"8"figure maximum. ), power supply, remote controller, infrared receiver port, light sensor.
7. We can customize your products according to your detailed requirements, like voltage, power, installation size, display colors etc.

--------------------------------------------------------------------------------------------------
Why Choose DongGuan LED Electronic. Co., Ltd?
* Long history, good reputation, high quality, best service, reasonable price in the market.
* Short delivery time. Sample delivery within 5 days ( normal size and design); Bulk order delivery within 10 working days (normal size and design)
* Professional technology support and professional engineer team.
* Larger export market in every country in the world
* Relative certifications: CE, UL, RoHS and son on.
* Salesman provide the professional service and support to every clients.

---------------------------------------------------------------------------------------------------------
FAQ
1. What is the lead time of sample?
---sample will be deliveried within 5 working days for normal size and design.
2. What is the lead time of wholesale order?
---wholesale order lead time: 10 working days for normal size and design.
3. How can i pay if you want to make business with you?
---T/T, 50% deposit, 50% before delivery; Sample must be payed full; Western Union, Paypal, and swift account, if you need other payment item, please discuss with us.
4. If i want to purchase some led display, which beyond your size and color option, can you make it?
---yes, we can customized for you.
5. Before send inquiry to us, please confirm which color and size you need, then we can quote you the best price...

Many thanks for your kind time to check our four digit led numeric display, if you need more information about our four digit led numeric display. Please feel free to contact me...And wish you have a nice day.

Size
8inch12inch12.5inch16inch18inch20inch



Quantity of LEDs
108pcs250pcs250pcs273pcs635pcs669pcs



Front Height
195mm300mm310mm 400mm462mm500mm

PCB   Size
143mm*327mm  225mm*317mm 232mm*327mm


300mmx422mm


353mmx498mm       390mmx558mm



Color
 red / yellow / green / blue /amber / white



Cabinet Size

(8889/10 or 888.8with waterproof iron cabinet)
  27*64.3*4cm  40*100*4cm  40*100*4cm 49*126*4cm 56*147.3*6cm 62*164.5*6cm
 Control box size: 300*300*80mm
 Control SystemRF controller. RF remote, Meanwell Power supply and Fan,7 grade automatic adjustment brightness
 Control Distance 30m --100m
 Package  Plywood with EPE, Netural package.

Prod Model: GAS20RZ88889/10TB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 12" with 8"
Color: Yellow (Amber)
Format: 888.8
IP Grade: IP65
Control Way: RF Remote
Control Distance: 30m-100m
Brightness Grade: 7 Grades
Voltage: 12V
Material: Iron Case, PCB Boards and LED Lamps
Name: Four Digit LED Numeric Display
Tube Chip Color: Single Color
IP Rating: IP65
Pixel Pitch: 12mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Market Display
Average Power Consumption: 180W / m²
Pixel Density: 1024 dot / m²
Scanning Mode: Static Scan
Display Type: Segment LED Display
Application: Advertising
Certification: ETL
Dongguan LED ELECTRONICS CO. Ltd(Shenzhen Hidly LED Co., Ltd)was founded on May19.2006, located in Liao Bu Town, Dongguan City, the plant area is about 2600 square meters. Professional in research and development, producing and sales service of LED sign, LED display, LED mini display, LED outdoor sign, LED gas price sign, LED cross display and so on, There are about 50 team members and a third of us owns college degree. Adhering to focus on professionalism from graphic design, software programming, components procurement, production management to quality testing, treating every aspect of each product seriously to ensure the perfection, and won the Nexium from 98% customers. Our main products are exported and well selling in Europe, America, Australia, Russia, Malaysia, Israel and other countries.

Basing on the advantage of senior talent and technology elite in the industry, combining our operation principle of "Attach importance to every custom, every order and every feedback", under the rigorous attitude to every product, 8years innovation and accumulation, our company becomes a well-known LED signboard intergrated manufacturers over world. We would review shortage, optimization market positioning, strive for high quality and nicer live. Empty sea, tolerance is a great! We are willing for win-win cooperation, let' S join hands for further progress and making value for customers for a better future!

Until 2015, we designed LED sign over 3000 varieties, and over 618000 item product finished production in our factory and export to all over the world, including LED sign 500000PCS, LED moving display about 30000PCS, gas LED display about 80000PCS, cross LED display about 8000PCS. Otherwise, we are the long-term supplier of some famous company like Pepsi, Carlsberg Beer, Starbucks, BP and so on since 2006.

Company mission: Provide development room for our workers, bring more benefits for our customers, create more value for our society

Company spirit: Be concentrated and be professional, step forward a little day by day, never give up.

Company policy: Safety first, quality first.

Company work style: Be serious about life and enjoy it. Concentrate on work.

The principle of employment: Responsible, aggressive, grateful and tolerant.

The concept of service: Pay special attention to every customer, every order and every feedback.
