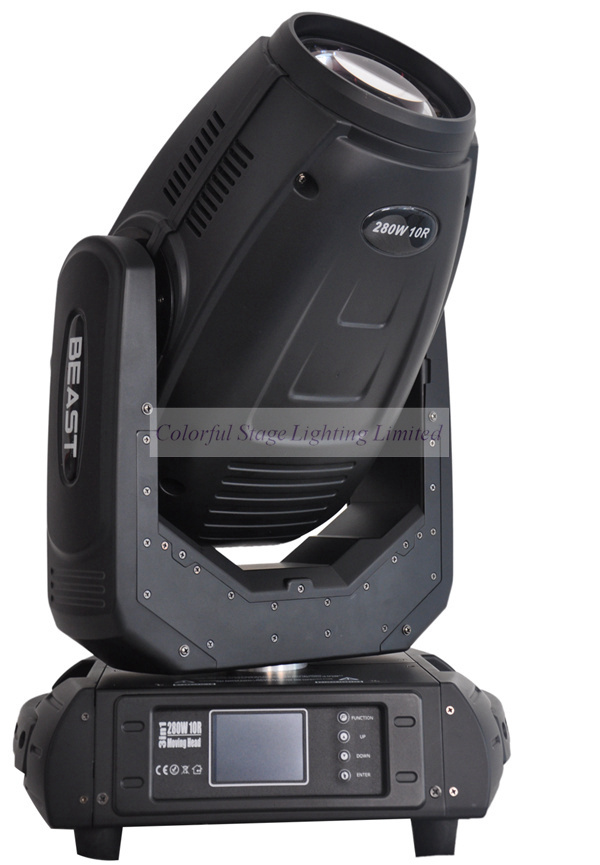

2015 Newest 280W Spot Beam Moving Head Light

2015 Newest 280W Spot Beam Moving Head Light

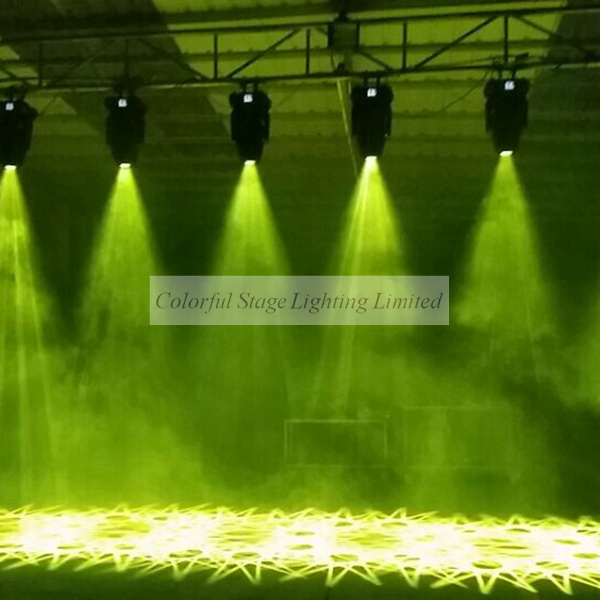

It's very bright and super-fast with a sharp parallel beam that cuts through the air and across video with ease.
It can project a static or rotating glass gobo to produce precision in-air and surface images with an even focal plane.
Tight or at full 20 degree zoom, the output is crystal clear and brilliant.
Add in either rotating, 6 way linear or 8 way circular, prisms to create wide reaching effects across any set.

Drop in the frost filter and use any of the 13 rich colours to create a smooth even wash.
The Pointe has an output far greater in size, quality and power than seems possible from it's small, lightweight body -
due to the efficient short arc 280 W discharge source and the Robe optical configuration.
This new technology fixture even travels efficiently in a case of 4 and will cover all your needs - Beam, Spot, Wash, FX - there is no point in using any other fixture.

Technical Specifications:

Electrical
Power supply: Electronic auto-ranging
Input voltage range: Supply 100-250V, 50/60Hz
Power consumption: 470W

Optic
Light source: OSRAM HRI 280W Lamp
LED life expectancy: 2200 hours
Lens: High precision optical lens
Strobe: Dual lens strobe (0.5-9times/second)
Dimmer: Smooth dimmer from 0-100%

Feature
Color wheel: 13 color+white
Rotating gobo wheel: 9 gobos+ white
Static gobo wheel: 14 fixed gobos+white
Prism 1: 8-facets circular rotating prism
Prism 2: 6-facets linear rotating prism
Zoom: 2.5° -20°
Focus: Linear adjustment

Motorized
Pan/Tilt
Pan movement range: 540°
Tilt movement range: 270°
8bit/16 bit movement solution, optional
Automatic Pan/Tilt position correction
Pan movement 0° -540° At max...
Tilt movement 0° -270° At max...

LCD operation
Built-in demo sequences
Silent fans cooling
Strong two-phase motors
Stand-alone operation
Supported protocols: DMX512
2 DMX modes (16/24 control channels)

Connection
DMX data in/out: Locking 3-pin and 5-pin XLR
AC power input: 1.5m power cord with plug

Rigging
Mounting points: 2 pairs of 1/4-turn locks
Mounting horizontally or vertically via 2 Omega brackets

Temperatures
Maximum ambient temperature: 45º C
Maximum housing temperature: 75º C

Minimum distances
Min. Distance from flammable surfaces: 3.0m
Min. Distance to lighted object: 2.0m

Dimension: 386(L) x 365(W) x 589(H) mm
Weight (net): 19kg
Warranty: 2 Years

Welcome to order our products

10R 280W Robe Pointe Moving Head Lights


Trade Terms:

1. Payment: By T/T or Western Union.
100% payment if the total amount is less than USD 5,000.
30% deposit and 70% balance before shipment if the total amount is more than 5,000.

2. Lead time:5~8 working days, According to the order quantity.

3. Delivery ways: DHL, UPS, FEDEX, EMS, TNT door to door service, by sea, by air, etc.

Keeping our commitments:

-Price: we are factory and able to offer better price than trade company
-Good quality: We are a manufacturer and exporter of various Stage Lights and LED Lights, and we are experienced in quality control
-On time delivery: delivery the goods in the confirmed time
-Professional seller: good communication in patient and well know our products
-OEM: welcome.

Delivery:
-5-7 days after received your payment.
-Rush service available


Company and products information related:

Guangzhou Colorful Stage Lighting Equipment Factory is specialized in LED Lighting,Stage Lights manufacture for about 6 years.
Which have strong R&D and producing capabilities,We had been the supplier for 2010 Guangzhou Asian
Games.CCTV5,CCTV15,CCTV9 studio and other TV show.

Thank you for viewing our website and welcome to visit our factory.
