Home LED Light Products 2015 New Product Spring Concealed LED Grid Panel Light

2015 New Product Spring Concealed LED Grid Panel Light

2015 New Product Spring Concealed LED Grid Panel Light
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: T/T,Paypal,Western Union

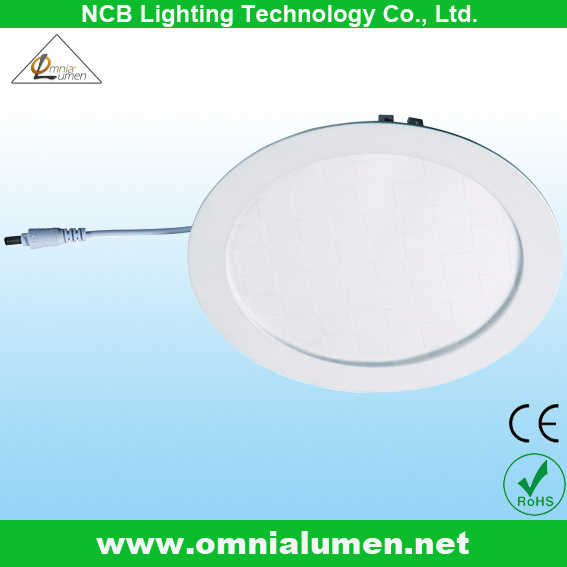

2015 New product spring concealed LED grid panel light

Lamp body:Die-cast aluminium outer frame paint surface treatment+PMMA+PS material.
Light source:2835LED Ra>70/80,Epistar,Sanan chip.
Beam angle:120°
Product color:white
Certification:ROHS CE


Technology Data

 ItemInput
Voltage
PFPowerColor
Temperature
Iuminous
flux(6000K)
DimensionInstallation
OLSPDLR3W*AC85-265V>0.903W2800-6500K>=240LMØ85*21mm¢60mm
OLSPDLR4W*AC85-265V>0.904W2800-6500K>=320LMØ110*21mm¢90mm
OLSPDLR6W*AC85-265V>0.906W2800-6500K>=480LMØ120*21mm¢100mm
OLSPDLR9W*AC85-265V>0.909W2800-6500K>=720LMØ146*21mm¢130mm
OLSPDLR12W*AC85-265V>0.9012W2800-6500K>=960LMØ171*21mm¢150mm
OLSPDLR15W*AC85-265V>0.9015W2800-6500K>=1200LMØ190*21mm¢170mm
OLSPDLR18W*AC85-265V>0.9018W2800-6500K>=1440LMØ225*21mm¢200mm
OLSPDLR24W*AC85-266V>0.9024W2800-6500K>=1920LMØ300*21mm¢280mm
*=W 2700-3200K,N 4000-4500K ,C 5500-6500K




Packing details

Export Carton


Quality

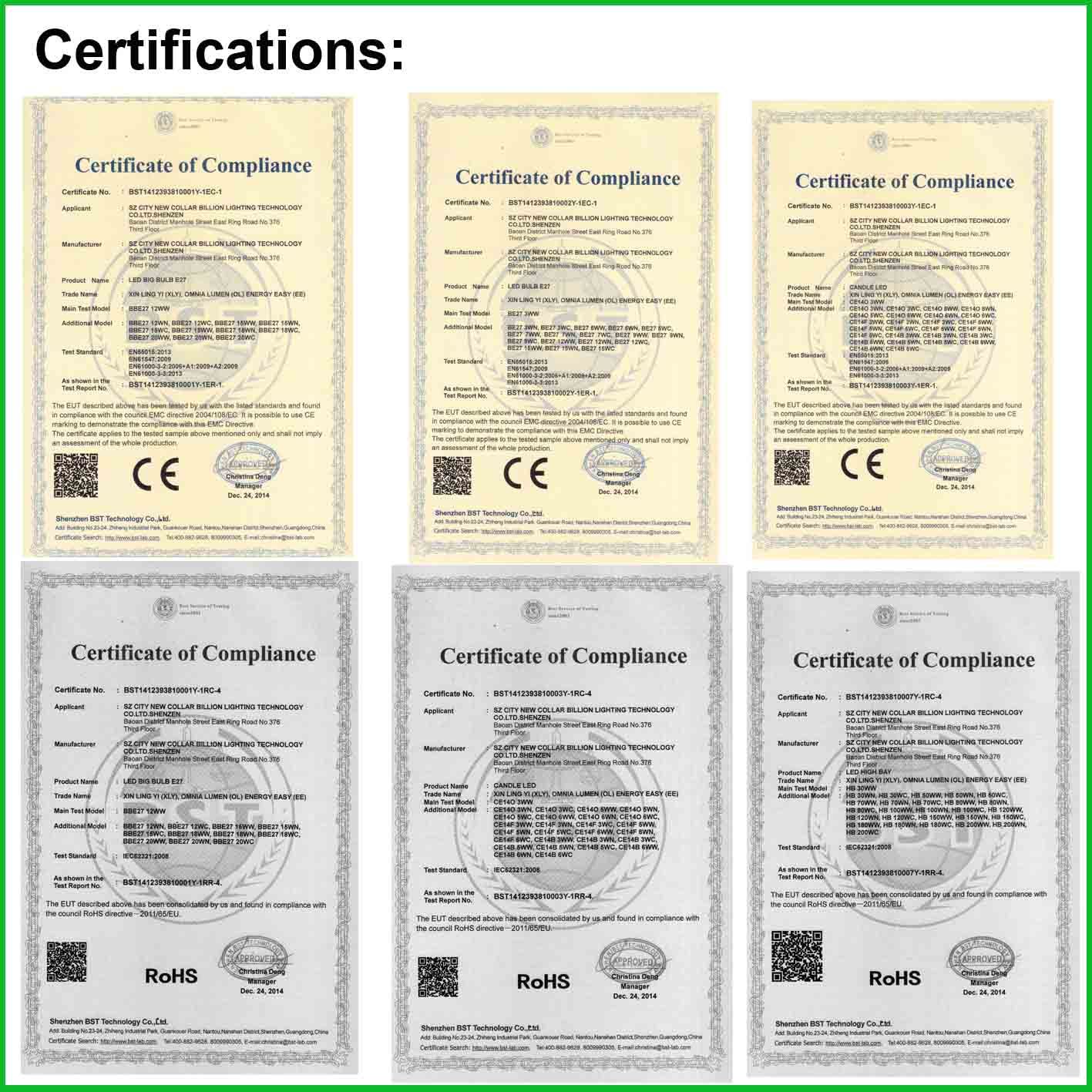

Have the certification of CE ROHS,ISO9001,and have the advanced testing equipment



About US---Shenzhen City New Collar Billion Lighting Technology Co., Ltd.    Welcome



LED Advantages

The intrinsic characteristics of LED determines that it has many advantages, such as:
1, small
LED is basically a small chip is encapsulated in epoxy resin inside, so it is very small, very light.
2, low power consumption
LED power consumption is very low, DC drive, ultra-low power consumption (single tube 0.03-0.06 W) electro-optical power conversion close to 30%.
3, long service life
Some have called for the long life LED light source lamp. The service life of up to 60000-10 million hours long life than traditional light sources over 10 times.
4, high brightness, low-calorie
LED light technology with cold, much less heat than conventional lighting.
5, environmental protection
LED is made from non-toxic materials,  LED can also be recycled and it is cold light source, safe touch, typical of the green lighting
6, durable
LED is completely encapsulated in epoxy resin inside than light bulbs and fluorescent tubes are solid.


    More products please click our website:http://xinlingyi-led.en.made-in-china.com/







Prod Model: OLSPDLR6W*
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Offices ,Homes,Shopping Mall
Product Color: White
Lighting Source: LED
LED Chip: SMD2835
PF: >0.9
Delivery Term: by International Express,Sea or Air
Lifespan: 30000 Hours
Power: 6W
Sample Offered: Yes
OEM Offered: Yes
Light Source: LED
Housing Material: Acrylic
Dimmable: Without Dimmable
Appearance: Round
Type: Embedded
Base Material: Metal
Certification: ISO9001
Voltage: 85V-265V
Emitting Color: Warm White ,Nature White, Pure White
Beam Angle: 120 °
Shenzhen City New Collar Billion Lighting Technology Co., Ltd. is a focus on the development of green energy saving and energy-efficient lighting products to promote enterprise. The company specialized in the production and sale of high-quality, ultra energy-efficient, environment friendly and healthy indoor and outdoor LED lighting.

We set R&D, sales promotion, after-sales service. And we have experienced R&D engineers and a strong production team, have a complete and scientific quality management system. Based on the domestic and foreign market, the company is trying to build up a super strong LED Light market with its own brands and the best quality for wholesalers and retailers from all over the world.

Now our factory have 9 years experiences in producing LED light, owning excellent R&D engineer and powerful production team. Our factory have workers over 100 people, and 15 sales staff. The export value have reached 8 million RMB one year.

In other words, we are trying to build up a strong LED market with our own brands and the best quality for wholesalers and retailers from all over the world.

Please contact us for further information. We believe that we are the best professional LED Light supplier.
