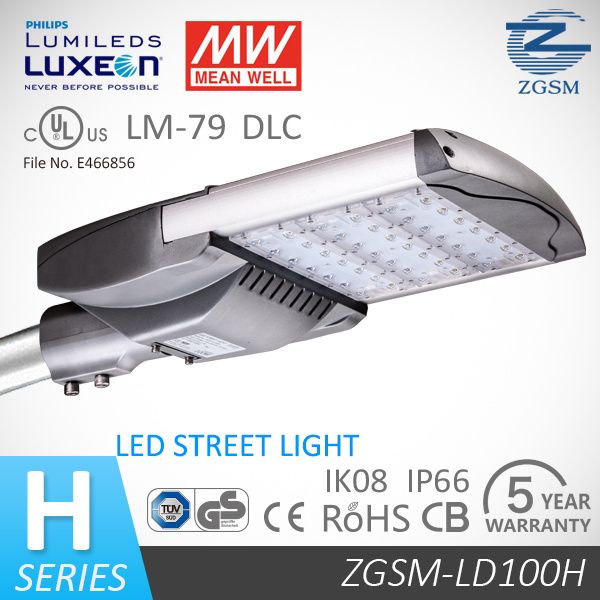

ZGSM H-Series LED Street Lights are designed for use in city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high-brightness general illumination during the night time.
Major advantages of our H Series street light:
1. PHILIPS LUXEON T luminous source with LM-80 report.
2. High Reliable MEANWELL HLG driver with 5 Years Warranty.
3. Over then 67,000 hours operation lifetime.
4. Have TypeI, TypeII and TypeIII, Typev four Photometric Types suitable to different road conditions.
5. IK08&IP66.
6. Have horizontal and vertical two installation choose, and also has 0-15° adjustable function for each installation direction.
7. Have UL, DLC, ROHS, CE, GS, CB certificated..
8. Patent product with 7 patent certificates.
9. 5 years Warranty
Datasheet:
Specifications |
Model | ZGSM-LD100H |
LED Brand | PHILIPS LUXEON® T |
Driver Brand | Meanwell HLG series |
Norminal Wattage | 100W |
LED Module Quantity | 3 modules |
Input Voltage | 100-240V, 277V, 347V, 480V AC; DC24V |
Power Efficiency | >90% |
Power Factor | >0.95 |
Lamp Rated Luminous Efficiency | >110lm/w |
Lamp Rated Lumen output | 11000 lm (Lumen tolerance +/- 5%) |
Color Rendering Index | Ra>70 |
Color Temperature | 4000 5000 or 5700K |
Photometric Type | Type I Medium;Type II Medium;Type III Medium; TypeV,Short |
Optimal Operating Temperature | 25° |
Storage Temperatures | -40°C~50°C |
Working Environment | Between-40°C~+50°C, 10%~90%RH |
Total Harmonic Distortion | < 10% |
Lumen Maintenance | > 67000 hours -L70, @25 ºC (77 ºF) |
Wind Index | Force 12 |
Body and Shell Materials | Anodized Aluminum |
IP Rating | IP66 with test report |
IK Rating | IK08 with test report |
Certification | CE,ROHS,GS,CB,UL,cUL,DLC,LM-79 |
Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
Timer/Photocell Control |
Warranty | 5 years |
|
Packing Details |
Fixture Dimension | 577 x316 x136 mm |
Fixture Weight | 7.3 kg /16.1 lbs |
Packing Dimension | 630x370 x200 mm |
Packing Weight | 8.6 kg /19.0 lbs |
[Warranty]
5 years Since the date of purchase.
[Warranty Terms]
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, ZGSM will provide free maintenance service based on the proof-documents and invoice(copy) of failure product.
2. ZGSM will provide paid maintenance service by under coditions within warranty.
(1). Failure or damage due to force majeure.
(2). Failure or damage due to transport or unloading.
(3). Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
(4). Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service, ZGSM will not responsible for any failure or damage in transportation if customer use non-original packing or improper packing.
4. ZGSM reserves the right for final explanation of aforesaid terms.
[Caution]
ZGSM will not responsible for any other failure or damage by incorrectly usage.
