2015 LED Ceiling Light with 3 Years Warranty

2015  LED Ceiling Light   with 3 Years Warranty

30W LED COB Ceiling light Product feature:

Adopt super bright COB LED as light source, 100-110lm/W.
Die-casting high thermal conductivity aluminum alloy body with spraying surface, gorgeous and delicate
High reliability, two years warranty without replacing for normal use
Long lifespan≥30000 hours,10 times more than traditional Halogen lamp's
Low Light decay, 3 ‰ for 1000hours normal working
Green, no mercury, no UV radiation, fast starting, no flicker
Beam angle: 30º and 50º are available
Application:
1 Mall lighting, Hotel lighting, Restaurant lighting, Meeting Lighting ect
2 Home lighting:Living room lighting, study-room lighting, ect
3 Public lighting: School lighting,  Hospital lighting,  Museum lighting, etc

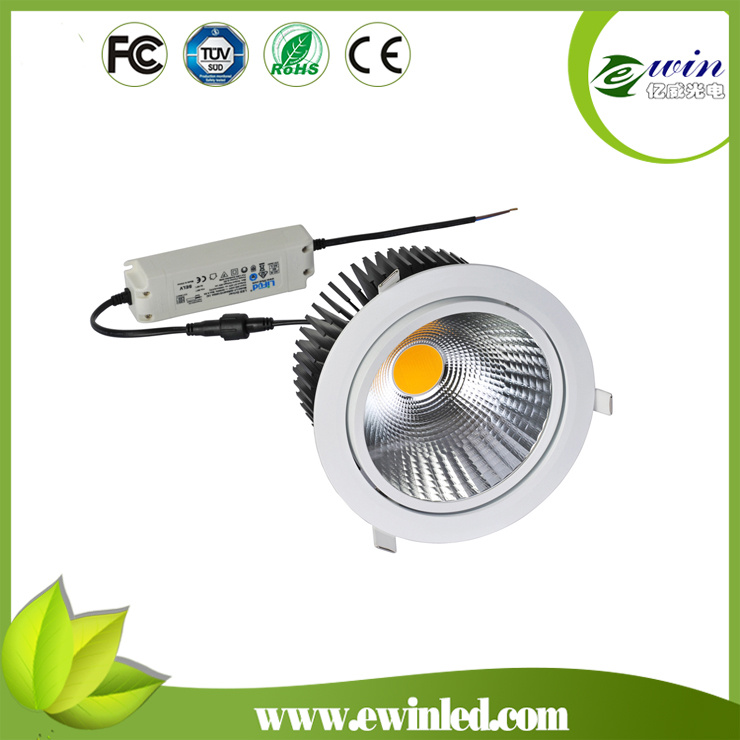

30W COB LED Downlight Feature:
1. High CRI ,  Ra : 82-95
2. Intensive brightness : 110-120LM/W
3. LED COB chip :  small chip, low current, only0.06w/ chip . Compared to aluminum base in the market , the ceramic plate cooler is with better heat hissipation. Surface temperature : 50-60ºC
4. Lifud Constant isolation LED driver , with TUV,CE,ROHS approval .
5. heat dissipation cooler  : pure aluminum as material ,  white ring  paint spraying , black oxidation treatment , more beautiful   , more stable
6.All items are with IES document. Easily for lighting design.

Shenzhen Ewinled 6W COB LED down lihgt   ( Power :1*6W)
Item No.	EW-DL6W-COB-WW	EW-DL W-COB-W	EW-DL6W-COB-CW
Color	Warm White	White	Cold White
CT (K)	2700K-3500K	4000K-4500K	5500K-6500K
Lumen Efficiency	500-530lm	530-550lm	550-580lm
Size(Mm)	Ø90*H75mm
Installation Size	Ø75mm

Shenzhen Ewinled 6W COB LED down lihgt   ( Power :1*6W)
Item No.	EW-DL6W-COB-WW	EW-DL W-COB-W	EW-DL6W-COB-CW
Color	Warm White	White	Cold White
CT (K)	2700K-3500K	4000K-4500K	5500K-6500K
Lumen Efficiency	500-530lm	530-550lm	550-580lm
Size(Mm)	Ø90*H75mm
Installation Size	Ø75mm

Shenzhen Ewinled 15W COB LED down lihgt   ( Power :1*15W)
Item No.	EW-DL15W-COB-WW	EW-DL15W-COB-W	EW-DL15W-COB-CW
Color	Warm White	White	Cold White
CT (K)	2700K-3500K	4000K-4500K	5500K-6500K
Lumen Efficiency	1350-1450lm	1370-1470lm	1400-1500lm
Size(Mm)	Ø138*H105mm
Installation Size	Ø120mm

Shenzhen Ewinled 20W COB LED down lihgt   ( Power :1*20W)
Item No.	EW-DL20W-COB-WW	EW-DL20W-COB-W	EW-DL20W-COB-CW
Color	Warm White	White	Cold White
CT (K)	2700K-3500K	4000K-4500K	5500K-6500K
Lumen Efficiency	1800-1900lm	1850-1900lm	1900-2000lm
Size(Mm)	Ø138*H105mm
Installation Size	Ø120mm

Shenzhen Ewinled 30W COB LED down lihgt   ( Power :1*30W)
Item No.	EW-DL30W-COB-WW	EW-DL30W-COB-W	EW-DL30W-COB-CW
Color	Warm White	White	Cold White
CT (K)	2700K-3500K	4000K-4500K	5500K-6500K
Lumen Efficiency	2500-2700lm	2600-2800lm	2700-2900lm
Size(Mm)	Ø160*H120mm
Installation Size	Ø140mm

Shenzhen Ewinled 40W COB LED down lihgt   ( Power :1*40W)
Item No.	EW-DL40W-COB-WW	EW-DL40W-COB-W	EW-DL40W-COB-CW
Color	Warm White	White	Cold White
CT (K)	2700K-3500K	4000K-4500K	5500K-6500K
Lumen Efficiency	3200-3400lm	3300-3500lm	3400-3600lm
Size(Mm)	Ø180*H120mm
Installation Size	Ø160mm

Shenzhen Ewinled 50W COB LED down lihgt   ( Power :1*50W)
Item No.	EW-DL50W-COB-WW	EW-DL50W-COB-W	EW-DL50W-COB-CW
Color	Warm White	White	Cold White
CT (K)	2700K-3500K	4000K-4500K	5500K-6500K
Lumen Efficiency	3600-3800lm	3700-3900lm	3800-4000lm
Size(Mm)	Ø230*H140mm
Installation Size	Ø200mm

1.What is COB ?
Chip-on-Board, or COB, refers to the semiconductor assembly technology wherein the microchip or die is directly mounted on and electrically interconnected to its final circuit board, instead of undergoing traditional assembly or packaging as an individual IC. The elimination of conventional device packaging from COB assemblies simplifies the overall process of designing and manufacturing the final product, as well as improves its performance as a result of the shorter interconnection paths.
2. What is COB Advantage ?
1) Reduced space requirements;
2) Reduced cost;
3) Better performance due to decreased interconnection lengths and resistances;
4) Higher reliability due to better heat distribution and a lower number of solder joints;
5) Shorter time-to-market
3. The Citizen COB Led Downlight Features:
1. Input Voltage: 100-240VAC,Wide voltage design, available for whole world use.
2. Appearance: Milk white, the same with housing finish color, creating a mood that is warm and cozy.
3. Material: Aluminum alloy and PMMA / Glass light guide plate.
4. Chips: Adopting Taiwan Epistar chips as light source to insure high luminous flux and conformity light output.
5. Heat dissipation: The multi-fin casting design ensures full heat dissipation.
6. Driver: External driver.
7. No UV or IR radiation, Harmless to human body
8. Detachable power source, convinent for your change


30W COB LED Downlight Our Services

1.Your inquiry related to our products or prices will be replied in 24hours.
2.Well-trained and experienced staffs to answer all your inquires in fluent English.
3.Any your customized lightings we can help you to design and put into product.
4.Distributorship are offered for your unique design and some our current models.
5.Protection of your sales area, ideas of design and all your private information.
