Led light manufacturers and factory

Home LED Light Products 2015 High Quality Aluminum Alloy Body LED Headlamp

2015 High Quality Aluminum Alloy Body LED Headlamp

2015 High Quality Aluminum Alloy Body LED Headlamp
Price: US $ 10.2-12.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,Western Union

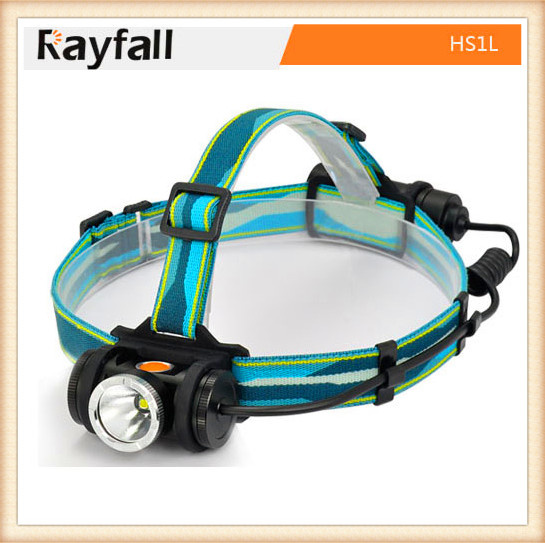

Rayfall® Split Rechargeable Headlamp Model No.:   HS1L


Detailed description

Advantages

Rayfall® Split Rechargeable Headlamp keeps the hands free while needed.
Cree LED light source Ultra-Powerful Maximum brightness up to 550 lumens.
Beam distance long up to 180 meters
Constant lighting guaranteeing stable lighting to avoid diminishing during the entire chosen burn time, and beam direction 180o adjustable for lighting oriented.
Rechargeable Li-ion battery for better performance and energy supplementary.
Battery performs well at low temperature.
Split type design to reduce weight on head front for more comfortable.
Aluminum alloy case/reflector excellent resistance to falls, impacts and crushing, and better for heat emitting on LED.
Four lighting levels available adapt to each situation:
- High (Max Power: power prioritized)
- Mid  (Standard: power/burn time balance)
- Low  (Max Autonomy: burn time prioritized)
- S.O.S  (Strobe mode for signaling one's presence, accessible at any time)
Easy to use
- Press-button is easy to use, even with gloves on.
- Comfortable headband is easy to adjust and provide excellent support during dynamic activities.
- Headband washable.
- Case open easily while battery replacement

 Lighting performance

Specifications

Size: ø31*95mm (headlamp), ø28*87mm (battery pack)
Net Weight : 139 g (w/o battery)
Light source: CREE XM-L T6 cool white
Beam pattern : Mixed
Resistance to falls: 1.5-3m
Rated voltage: DC4.5V, Power: 8 Watts.
Battery compatibility : 1*18650 2600mah Li-Ion battery or 3* AAA
Case Material: Aluminum Alloy
Waterproof : IPX8 (water resistant)

Package
 Standard Exporting Packaging.
Each in a gift box, 18 gift boxes in an Inner box, and then 2 inner boxes in an outer Carton.
Total 36pcs of Headlamps loaded in an outer Carton.
Carton Size: 415*355*395mm, G.W.: 10.84kg.

Reference
Color: Black
Accessories
- 1*18650 2600mah Li-Ion battery (optional)
- Components for head support
- Battery holder
Guarantee:  Lamp 3 years.
Certification(s) : CE/RoHS


Product Description
RayFall HS1L Cree XM-L T6 4-Mode 550 Lumens led Headlamp, mountain bike led headlight,Waterproof led head lamp(CE,RoHS)

 Caution
Please protect light lens and skin from scuffing.
Please take out the battery when the light is not used for long time.

Specification

Model

HS1L

Bulb

CREE XM-L T6 cool white LED

Luminous Flux

550 Lumens

Work Pattern

High>Mid>Low>flashing

Reflector

Orange Peel Reflector

Lens

toughened glass

Case material

aluminum

Surface Treatment

Type II Anodizing

Circuit

Strengthened type step-up and step-down voltage constant current drive circuit

Operating Voltage

DC 4.5V

Battery

AAA battery*3 or 3.7V2600mAh 18650 Li-ion*1

Switch

Touch Switch

Waterproof

IP68

Size

lamp holder-Φ31x60mm,battery case-Φ28x87mm

Impact resistance

1.5M

Weight

192g (w/o batteries)

Accessories

1. AAA*3 or 18650 Li-ion*1 (Optional )
2.mounting bracket   3.Clamp



Switch levels:

Output(Lumen)

Distance(m)

Duration(hrs)

High

550

180

10

Middle

220

135

20

Low

22

45

55

SOS Flash

55

NA

NA



 Company profile
Our company's roots lie in the passion and love of the founders for the outdoor exploration. Ever since the beginning, we did all we can to offer the customers the best professional outdoor lighting products.

Currently we have many mature products in two of our main products lines: headlamp and camping light, and we have won a high reputation in the domestic and oversea markets.

Basic Information

Product/Service (We Sell):

LED Headlight,LED Headlamp,LED Camping Light,LED Lantern,LED Flashlight

Number of Employees:

11 - 50 People

Trade & Market

Main Markets:

Northern Europe
South America
Oceania
Eastern Europe
Southeast Asia
North America
Western Europe
Eastern Asia

Total Annual Sales Volume:

US$1 Million - US$2.5 Million

Export Percentage:

71% - 80%

Factory Information

Factory Size (Sq.meters):

1,000-3,000 square meters

Factory Location:

Floor 3, Buiding 11, Futing Industrial Zone, Zhucun, Xincheng Community, Guanlan Street , Longhua New District , Shenzhen, China

Number of Production Lines:

3

Number of R&D Staff:

5 - 10 People

Number of QC Staff:

5 - 10 People

Contract Manufacturing:

OEM Service Offered   Design Service Offered   Buyer Label Offered



Our Services
1. Professional sales team for quick response online and inquiries feedbacks.
2.Outstanding product design team for developing and customizing new products. With out special technology     and patent.
3 .Graphic design team for customizing website, logo or package.
4. Marketing department for reasonable pricing and promotion events.
5. Excellent production line for high quality products and punctual delivery time.
6. Quality control department for testing new products and every lights before sending out. We promise !
7.We use sufficient watts LED chips and original CREE/Epistar chips.
8.All our products are made of high quality materials and under strict production control.
9.Any quality issue will be solved by our responsiable after-sales team. (Parts maintain/Products    upgrade/Products refund)


Kindly reminders for led head lamps
? Waterproof but not means it can be used in water.
? Please remove battery if not in use for long time.
? Warning: Please do not irradiate it to human eyes, especially for Children ,or else, it ma  y cause temporary blindness for the harsh light of flashlight.
FAQ
1. How could I get samples?
 We will send the samples to you after receipt of your payment. If you don't have an courier account, you can send your courier to collect samples from our company
2.How much the courier freight will be for the samples?
Courier freight depends on the quantity, weight and volume of the samples.
3.Can we have our logo or company name to be printed on your products or the package?
Yes. Logo and or imprints can be printed on our products..
4. How to place an order?
Please send us your purchase order by email or fax. Or you can ask us to send you a proforma invoice for your order. We need to know the following information for your order: Shipping information - company name, street address, phone number, transportation method ( by courier, by air or by ocean container) Product information - model numbers, quantity, unit price Delivery time required.
5. What's your usual payment term for orders?
Wire transfer ( T/T ) to our company bank account after order confirmation. For sample orders,PayPal is recommend to pay us. We don't accept payment by credit card.
6. How can the products be sent to us?
For small quantity or weight less than 20 kgs, sent usually by courier.
For orders from 20 to 500 kgs, can be sent by air to the airport near you.
For big quantity or volume, sent usually by ocean container.
The transportation way depends on client's choice. Freight depends on quantity, weight, volume, transportation way, destination country (airport, sea port ).
7. Can you arrange the transportation for us ?
Yes. We can arrange sea, air and courier transportation.
8. What's the warranty of your products?
12 months, depending on the product. We accept free replacement for unqualified products.
9. Do you accept OEM projects or Customized designs?
Yes, OEM projects or Customized designs are welcome.




                       Rayfall Technologies --- Leading Manufacturer of LED Headlamps & Camping Lanterns.

Prod Model: HS1L
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage: 4.5V
Light Source: CREE Xm-L T6 Cool White
Battery: 1*18650 or 3*AAA
Lighting Modes: High-MID-Low-off-S.O.S.
Switch Type: Press-Button
Lamp Dimension: D31*95mm
Battery Pack Dimension: D28*87mm
Product Weight: 139g (W/O Battery)
Waterproof: Ipx6
Application: Camping/Hiking/Trekking/Climbing/Fishing/Mining
Feature: Seperated Battery Pack
Certification: RoHS
Usage: Trekking
Warranty: 3 Years
LED Chips Brand: CREE
Battery Type: Lithium Ion
Irradiation Distance: 100-200m
Lighting Time (',Hours): >12
Material: Aluminum Alloy
