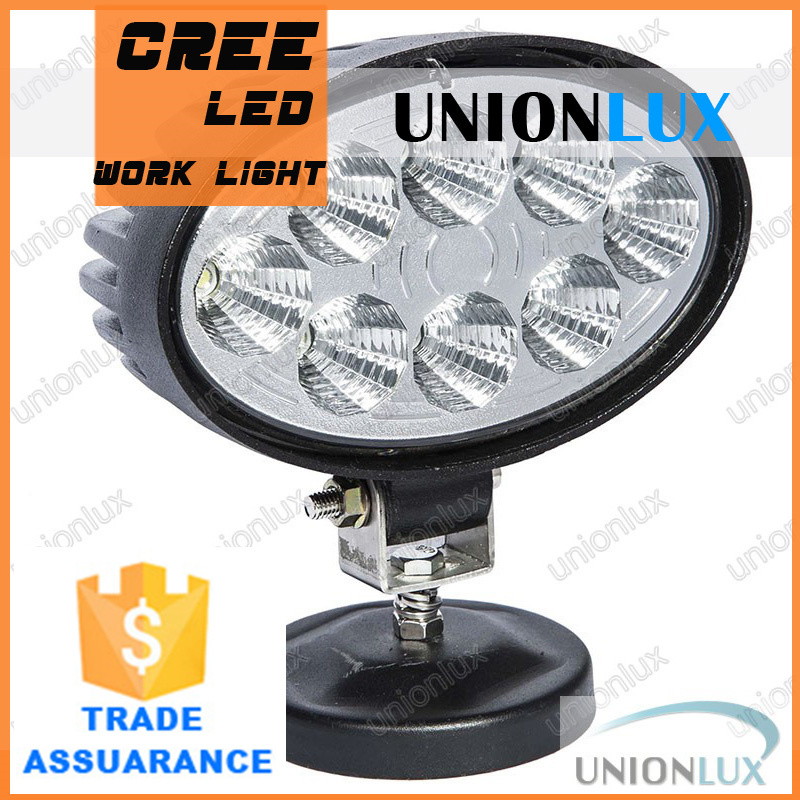

12V 24W LED Automotive Work Lights, off-road led work light, 4x4 led work lamp
Specifications
Input Voltage: AC/DC 12V/24V, AC85V~265V, 277V, 300V
Power: 10W/20W/30W/40W/50W/60W/70W/80W/ 90W/100W/120W/160W/200W
Frequency Range:
50Hz~60Hz
Total Harmonic Distortion:
< 9 %
Power Factor:
>0.9
Power Efficiency:
>85 %
Working Voltage:
DC32V
Led chip:
Bridge Lux
Lamp's Efficiency:
>91 %
Color Temperature:
2700K/4000K/6000K
IP Grade:
IP67
Working Life-span:
30000H
The color of the lamp shell:
Black, Silver-White are optional
Certificate:
CE/ROHS
Product Feature:
Easy to install using the cable, Small installation dimensions.
Long life: More than ordinary advanced LED light bulbs, more than 30000 hours life
Aluminum casing, shock-proof waterproof better
Light perception: A softer light to prevent glare
Waterproof and anti-corrosion: It can in the rain or harsh environments
Epister / Cree LED, low power consumption, high luminous flux.
One year limited warranty
Environmental-friendly and energy saving led work light
Advantage:
1. LED chips from US.
2. Lamp body is faster radiating for aluminum, high temperature resistance, beauty exterior.
3. Lamp cover adopted germany pmma technology, good vitreousness, anti high/low temperature burst.
4. Lamp reflector used Itlian optical reflectivity projector lens, long reflect distance.
5. Fix device from Japanese airlines tighten technology, stainless steel, shakeproof, rust-proof, water proof.
6. Energy saving, high brightness, long lifespan, adopted japanese encapsulation technology.
Led Work Light Application:
1. Engineering vehicles: Excavator, dozer, road roller, bulldozer, crane and mining truck etc.
2. Specialized vehicles: Fire engine, police cars, rescue vehicle, communication vehicle, military command vehicle etc.
3. Off-Road vehicles: ATVs, SUV, truck, Fork lift, trains, boat, bus, and tanks
odel: UX-WL3EP-Y24WC | Chip Brand: EPISTAR |
Power: 24W |
Power per LED: 3W |
Voltage: DC10-30V |
LED QTY: 5pcs |
Current draw: 1.25A @ 12V; 0.63A @ 24V |
Lens Material: PMMA |
Lumen: 1300lum |
Body Color: Black |
Color temperature: 6000K |
Body Material: Diecast aluminum housing |
Life Span: 30000 hours |
Mounting Bracket: Alu firm bracket |
Beam Angel: 30degree/60degree optional |
Net Weight: 0.6kg |
Waterproof rate: IP 67 |
Product size: 146*47*47mm |
