Specifications
Beam moving head light sharpy beam 230w
beam 230w Small and high brightness
18 DMX 512 Channels, 17 gobos
One year warranty
200W/ 230W beam Moving head Light/ sharpy moving head light / sharpy beam 230w
Specifications
1, 200W/ 230W Beam Moving Head Light
2, Sharpy, 8 prism, 17 gobos, 18CH/ 16CH
3, YODN Bulb /Philips 5R
4, One Year Warranty
5, CE
200W/ 230W beam Moving head Light/ moving head light/ beam 230w
Standard version: Optical lens Beam, electronic ballast, LCD display, linear focus, 8 prisms
Advance version: optical lens beam, electronic ballast, LCD display, Linear focus and Linear amplification (8 prism)
YODN 5R/ 7R MSD Bulb or Philips MSD Platinum 5 R, 200W/230W
1. Specifications
1.1. Physical Specifications
Product Series: Moving head light
Lamp: YODN MSD200R5 / MSD Platinum 5 R 189W/Jenbo
Color wheel: One color wheel, 14 kinds of color chips in one color wheel
Effect Wheel: Rotatable eight prism, effect move, frost· 0-100% mechanical dimming, mechanical dimming and free dimming availed. strobe macro control viable
Control mode: Auto-run mode, DMX-512 mode, Sound active mode
Package Size: 460x380x550mm
Working Temperature: -25°C~+35°C
1.2. Electrical Specifications
Voltage: AC 110-240V 50/60Hz
1.3. OtherSpecifications Over heat protection
2, Features:
Color wheel: one color wheel, 14 kinds of color chips in one color wheel
Gobo: 17 gobos
Effect Wheel: Retable eight prism, effect move , frost
0-100% mechanical dimming, mechanical dimming and free dimming available.
Strobe macro control available.
Lens optical system focus .beam angle 0~4°
Over heat protection
Ballast:
Electronics ballast
Color Wheel:
One with 14 colors+white
With adjustable rotation speed
With double direction stream and rainbow effect
With color location
Fixed Gobo Wheel:
With 8 gobos+open
With double direction rotation
With sharking effect With adjustable rotating speed
Prism:
With 8-facet prism
With double direction rotation
With adjustable rotation speed
Focus:
Linear focus from close to far
Frost:
With frost effect
With frost adjustable speed
Strobe:
Mechanical Strobe 1-12 F.P.S
With adjustable strobe speed
With wonderful strobe style
Movement:
Pan0-540o/Tilt 0-270o
With Pan/Tilt fine function Auto correction function
Hall location
16 Bit
Control:
16 DMX Channel
LCD display
High temperature protection

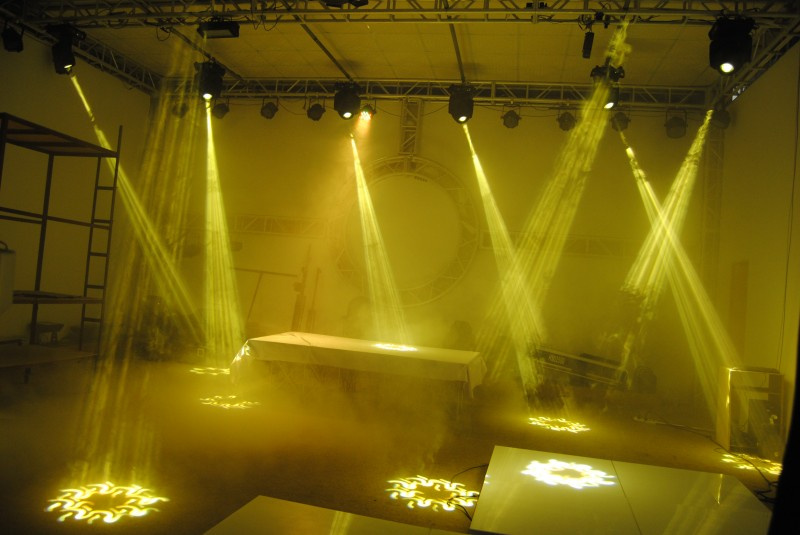

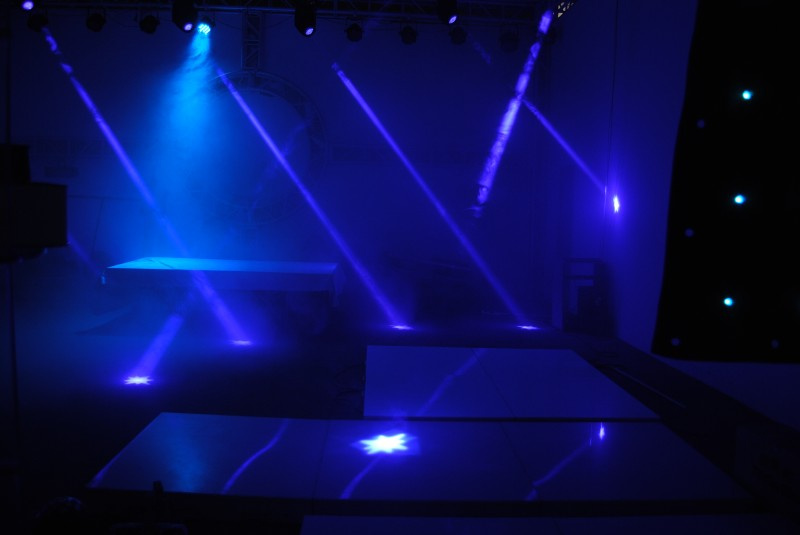

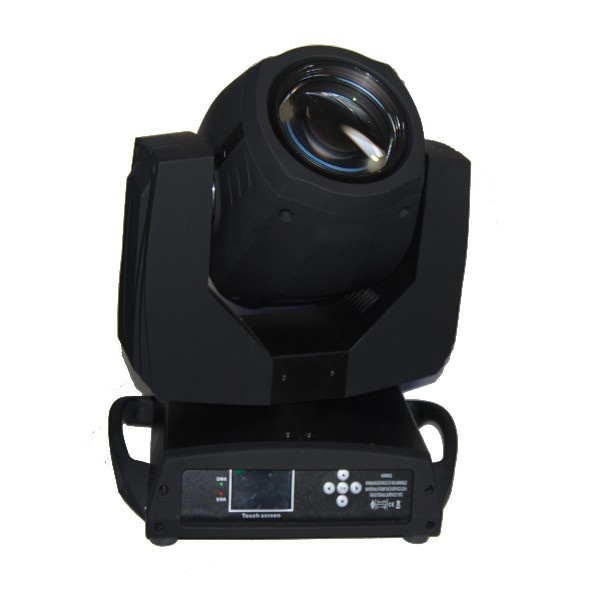

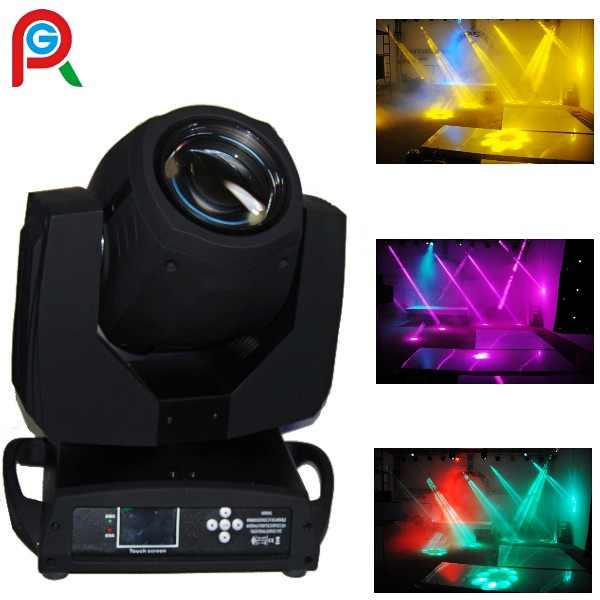

Product pictures:
Channel |
DMX No |
Content |
1CH Color |
0-4 |
White |
5-8 |
White+Color1 |
9-12 |
Color1 |
13-17 |
Color1+Color2 |
18-21 |
Color2 |
22-25 |
Color2+Color3 |
26-29 |
Color3 |
30-34 |
Color3+Color4 |
35-38 |
Color4 |
39-42 |
Color4+Color5 |
43-46 |
Color5 |
47-51 |
Color5+Color6 |
52-55 |
Color6 |
56-59 |
Color6+Color7 |
60-63 |
Color7 |
64-68 |
Color7+Color8 |
69-72 |
Color8 |
73-76 |
Color8+Color9 |
77-81 |
Color9 |
82-85 |
Color9+Color10 |
86-89 |
Color10 |
90-93 |
Color10+Color11 |
94-98 |
Color11 |
99-102 |
Color11+Color12 |
103-106 |
Color12 |
107-110 |
Color12+Color13 |
111-115 |
Color13 |
116-119 |
Color13+Color14 |
120-123 |
Color14 |
124-127 |
Color14+Color15 |
128-255 |
Color15 |
2CH Strobe |
0-3 |
White |
4-103 |
Slow strobe to fast strobe |
104-107 |
White |
108-207 |
Fast strobe to slow strobe |
208-212 |
white |
213-225 |
Free strobe, slow |
226-138 |
Free strobe, middle |
239-251 |
Free strobe, fast |
252-255 |
White |
3CH Dimming |
0-255 |
0-100% |
4CH Gobo |
0-3 |
White |
4-7 |
Gobo1 |
8-11 |
Gobo2 |
12-15 |
Gobo3 |
16-19 |
Gobo4 |
20-23 |
Gobo5 |
24-27 |
Gobo6 |
28-31 |
Gobo7 |
32-35 |
Gobo8 |
36-39 |
Gobo9 |
40-43 |
Gobo10 |
44-47 |
Gobo11 |
48-51 |
Gobo12 |
52-55 |
Gobo13 |
56-59 |
Gobo14 |
60-63 |
Gobo15 |
64-67 |
Gobo16 |
68-71 |
Gobo17 |
72-113 |
Gobo change, fast to slow |
114-117 |
Stop |
118-159 |
Gobo change, slow to fast |
160-166 |
Gobo2, shaking slow to fast |
167-172 |
Gobo3, shaking slow to fast |
173-179 |
Gobo4, shaking slow to fast |
180-185 |
Gobo5, shaking slow to fast |
186-191 |
Gobo6, shaking slow to fast |
192-198 |
Gobo7, shaking slow to fast |
199-204 |
Gobo8, shaking slow to fast |
205-211 |
Gobo9, shaking slow to fast |
212-217 |
Gobo10, shaking slow to fast |
218-223 |
Gobo11, shaking slow to fast |
224-230 |
Gobo12, shaking slow to fast |
231-236 |
Gobo13, shaking slow to fast |
237-243 |
Gobo14, shaking slow to fast |
244-249 |
Gobo15, shaking slow to fast |
250-255 |
Gobo16, shaking slow to fast |
5CH Prism |
0-127 |
White |
128-255 |
Prism |
6CH Prism Rotate |
0-20 |
Angle 0 |
21-41 |
Angle90 |
42-62 |
Angle180 |
63-83 |
Angle270 |
84-104 |
Angle360 |
105-126 |
Angle450 |
127 |
Angle540 |
128-190 |
Fast rotate to Slow rotate |
191-192 |
stop |
193-255 |
Slow rotate to fast rotate |
7CH Empty |
0-255 |
|
8CH Frost |
0-255 |
0-100% Frost |
9CH Focus |
0-255 |
0-100% Focus |
10CH X |
0-255 |
540° |
11CH X fine |
0-255 |
1.8° |
12CH Y |
0-255 |
270° |
13CH Y fine |
0-255 |
1.8° |
14CH Macro Function |
0-11 |
|
12-24 |
|
25-37 |
|
38-50 |
|
51-62 |
|
63-255 |
|
15CH Lamp |
63 |
Off |
178 |
On |
16CH Reset |
63 |
Reset |
