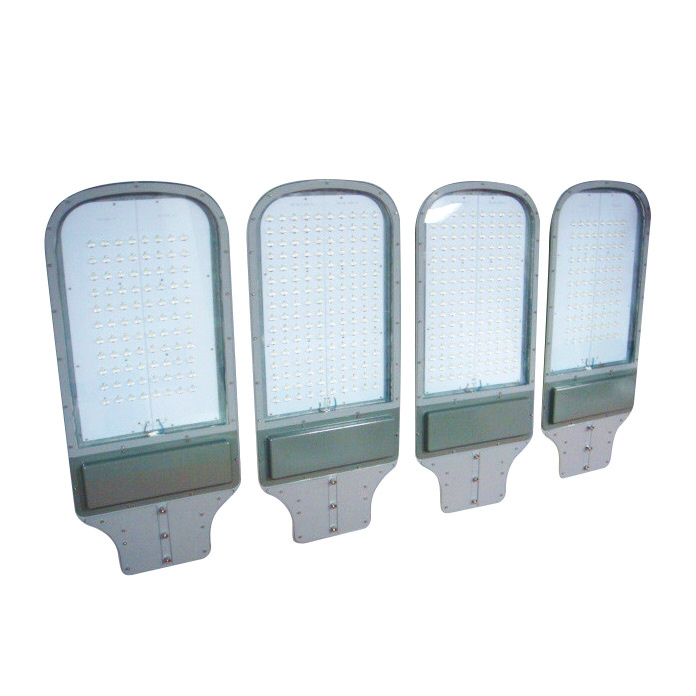

200 watt LED street light
Modle No. MR-LD-C-200W
Input Voltage: AC 850V-245V, DC12/24V
Standard Power: 60W~240W
Working Frequency: 50Hz/60Hz
Color Temperature: Pure white: 5000-7000K
Warm white: 2700-3500K
CRI (Color rendering index) 80
Working Environment: -20° C~45° C
Humidity: 10-90%
Protection Standard: IP66
Installation hight: 4-16m
Size: 960*420*70mm
Features of MHL LED street light
1. Use 1W high power CREE/ Epistar LED chips
2. Aluminium alloy housing body, good heat dissipation
3. 50%~70% energy saving, enviroment protection, no UV, IR
4. More than 50000 hours life span, 2 years warranty
5. CE & RoHS certification
Applications
Street lighting, solar lighting
Our advantage:
1. ISO9001: 2008 certificates, CE & RoHS certificates.
2. Professional R & D center, quickly after-service team.
3. Short production period, delivery in time.
4. Patents LED street lights, plenty experience on the installation of street lighting for the main street of the city.
Our sevice:
1. High quality LED lighting products
2. Professional and quickly after-sale service team
3. Samples are available
4. Professional logistics office
| Model No. | MR-LD-C200W |
| Total power | 200W |
| Input voltage | 90~240VAC 50/60Hz |
| Luminaire efficiency | ≥92% |
| Power suplly efficiency | ≥87% |
| THD | less than 15% |
| Luminous efficiency | ≥110Lm/w |
| Power factor | ≥0.95 |
| Rja | 0.16ºC/W |
| CCT | N.W.5000~6500K 3700~4500K W.W.2700~3500K |
| CRI | Ra≥75 |
Illumination | H=7m≥75Lux
H=8m≥58Lux
H=9m≥46Lux
H=10m≥37Lux
H=12m≥26Lux |
| Range of illuminate | H=8m≥35*20m
H=9m≥40*22m
H=10m≥45*25m |
| Installation | 8~12 m |
| average beam | 138º |
| IP code of LED driver | IP68 |
| IP code of the lamp | IP66 |
| Working temperature | -30~50 ºC |
| Working humidity | 10~90%RH |
| Storage temperature | 5~80 ºC |
| Life span | 30000Hrs |
| Material | die-casting aluminium, toughened galss |
Weifang Mingrui Optoelectronics Technology Co., Ltd., located in National Optoelectronics Industry Park, Wei Fang High-tech Development Zone, is a new technology enterprise specialized in researching and developing, producing and marketing new energy and new light sources and the technology for switching power supplies.
Mingrui has a top team and outstanding corporate management personnel of semiconductor (LED) applications. Our company has a pH. D. In physics, 3 optoelectronics graduates and 3 electronic engineers. Our company has set up two R&D departments for high-tech products: LED lighting and switching power supply R&D Department and solar energy photovoltaic power, inverter and charger R&D Department.
In the field of LED lighting, our company takes the lead in solving four industrial problems of fast light decline, poor uniformity, low illumination and poor heat dissipation in the process of conversion from passive light source to initiative light source.
It is our responsibility to meet your needs and efficiently serve you. Your satisfaction is our best reward. We are looking forward to your visit for joint growth.
