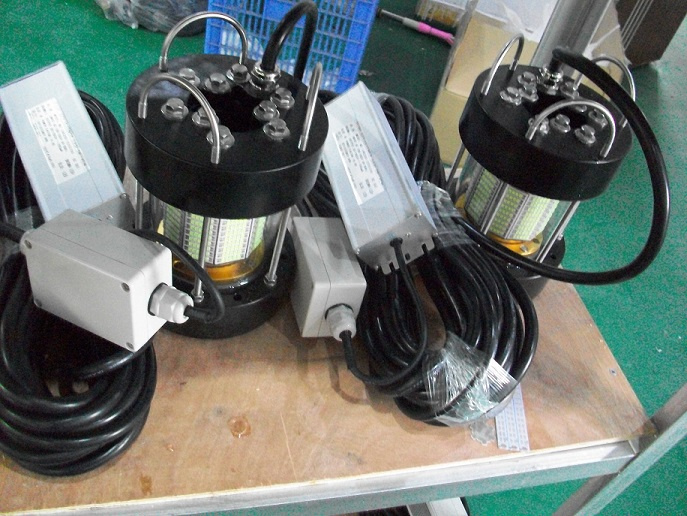

200W LED fishing light squid underwater flash fishing light, led fishing light,fish lighting,attracting fishlamp
LED fishing lights, LED lead fish lamps, LED underwater fishing lights, LED underwater fish aggregating the fish lamp use in deep water, with a conventional power source DC12V LED light source energy saving and environmental protection of water quality, the lure concentrated fish group has an excellent light trapping effect is the use of fish and insects phototaxis moths, moths and other insects to lure fish predation principle, set strong light, to lure the fish to enter the pre-set within a good network, and then borrow the pulley increase force, quickly lifted above the water surface and nets to catch a lot of fish catch was obtained. (Light colors can be customized according to customer requirements)
200W LED fishing light squid underwater flash fishing light, led fishing light,fish lighting,attracting fishlamp
Item | Voltage | Power | LED Qty (PCS) | Color | Lumen | Beam Angle | Lighting efficiency | IP Rate | cable Length | Material | Lamp | Electrical Box | Working temperature (in water) |
Size(mm) | Net weight | Size(cm) | Net weight |
LF-FSL-200W | AC100-260V 50/60Hz | 200W | 430 PCS SMD2835 | White | 20102 LM | 360° | 90% | IP68 | The lamp with 0.3 Meters cable,
Additional cable: 2USD/M | AL+SS316+PC | 155*500 | 9KG | / | / | ≤30ºC |
Green | 10965 LM |
LF-FSL-600W | AC100-260V 50/60Hz | 600W | 1290 PCS SMD2835 | White | 60307 LM | 360° | 90% | IP68 | AL+SS316+PC | 155*520 | 8KG | 30*21*13 | 6KG | ≤30ºC |
Green | 32895 LM |
LF-FSL-800W | AC100-260V 50/60Hz | 800W | 1720 PCS SMD2835 | White | 80410 LM | 360° | 90% | IP68 | AL+SS316+PC | 155*520 | 8KG | 30*21*13 | 6KG | ≤30ºC |
Green | 43860 LM |
LF-FSL-1000W | AC100-260V 50/60Hz | 1000W | 2150 PCS SMD2835 | White | 100512 LM | 360° | 90% | IP68 | AL+SS316+PC | 155*520 | 8KG | 30*21*13 | 6KG | ≤30ºC |
Green | 54825 LM |
LF-FSL-1200W | AC100-260V 50/60Hz | 1200W | 2580 PCS SMD2835 | White | 120615 LM | 360° | 90% | IP68 | AL+SS316+PC | 155*520 | 8KG | 30*21*13 | 6KG | ≤30ºC |
Green | 65790 LM |
LF-FSL-1400W | AC100-260V 50/60Hz | 1400W | 3010 PCS SMD2835 | White | 140717 LM | 360° | 90% | IP68 | AL+SS316+PC | 155*520 | 8KG | 30*21*13 | 6KG | ≤30ºC |
Green | 76755 LM |
200W LED fishing light squid underwater flash fishing light, led fishing light,fish lighting,attracting fishlamp
Application of energy-efficient new fish lamp light source is an important part of the light-induced fisheries research. The use of high spectral profiler Hyperspectral profiler II on the optical properties of the developed domestic 300 W type LED fish lamp is measured and compared with type 1 kW, 1.5 kW type, 2 kW metal halide fish lamp comparison, shows that domestic LED lamps have a good set of fish in water penetration, fish production to meet the needs. According to the current of 500 ocean-going squid fishing boat actual lighting configuration, when respectively 12W, 20W, 100 and 120 domestic LED fish lamp replacement trawlers refit vessels, transport ships refit vessels and three kinds of professional squid fishing boat Fishing fish aggregating original metal halide lamp, only fuel 0.9 × 104t, the annual fuel savings of nearly 6.2 × 104t. Meanwhile, three boats are much lower than the average annual cost of conversion used LED when saving fuel costs. Application of energy-efficient new fish lamp light source is an important part of the light-induced fisheries research. The use of high spectral profiler Hyperspectral profiler II on the optical properties of the developed domestic 300 W type LED fish lamp is measured and compared with type 1 kW, 1.5 kW type, 2 kW metal halide fish lamp comparison, shows that domestic LED lamps have a good set of fish in water penetration, fish production to meet the needs. According to the current of 500 ocean-going squid fishing boat actual lighting configuration, when respectively 80,100 and 120 domestic LED fish lamp replacement trawlers refit vessels, transport ships Refitting and professional squid fishing boat fishing boat three kinds of original metal halide fish lamp, only fuel 0.9 × 104t, the annual fuel savings of nearly 6.2 × 104t. Meanwhile, three boats are much lower than the average annual cost of conversion used LED when saving fuel costs.
