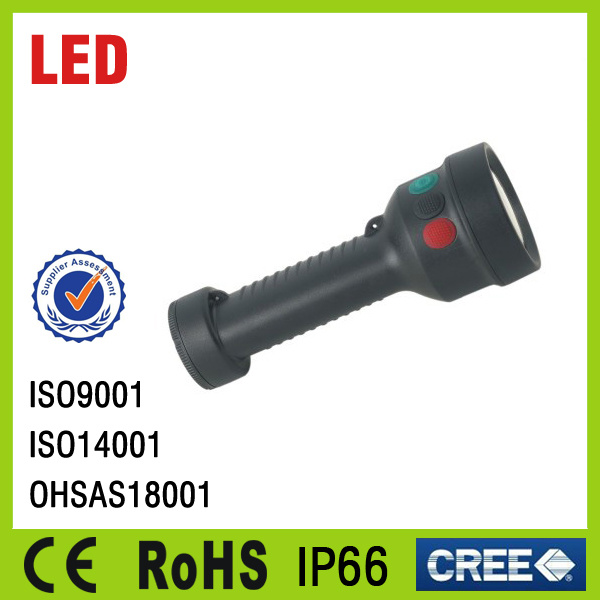

ZW 7600 LED Signal Flashlight
Ingress Protection:IP65
Application
It is used at railway, aviation and other transportation area and some special fields, serving as signal
indication, safety warning and normal illumination.
Characteristics of performance
1.It uses CREE LED light source,with 100,000hours service life. The reflector adopts hi-tech surface finishing technology, make sure a high light reflectivity. The effective beam range can exceed
100 meters. Any two of the red,yellow,green light can be chosen as signal light. Its colored signal light's
beam distance can reach 5000meters.
2.It is sealed to IP65 preventing the ingress of water;The housing is made of PC material, drop resistant to
1 meter. It can withstand high and low temperature suitable to be used in all kinds of harsh environment.
3.The rear light on its tail is ideal as a personal indicator to identify the position of the users. It eliminates
the danger and ensure the user's safety in the dark.
4.Use of the latest large bulk capacity lithiumiron battery with long service life improves reliability and eliminates '
memory ' affect.
5.Easy to carry.
| Specification | unit | ZW7600 |
| Rated voltage | V | 3. 7 |
| Rated capacity | mAh | 4400 |
| current | White Work light | mA | 380 |
| Signal light | 120 |
| Real light on the tail | 20 |
| Light Output | lm | 170 |
| Runtime | white work light | h | more than 10 |
| signal LIGHT | h | more than 30 |
| recharging time | h | 12 |
| Service Life | h | 100,000 |
| Battery Recharge Cycle |
| nearly 1000 |
| Dimension | External diameter | mm | Φ66 |
| length | 172 |
| Net weight | g | 265 |
Zhejiang Tormin Electrical Co., Ltd. is a high-tech civilian enterprise that specializes in r & d, manufacture and sales of industrial illumination lamps. Its products are widely used in the fields of electric power, coal mine, petrol, chemical, metallurgy, railway, large airport, fire-fighting, military, flood prevention, rescue work and disaster relief.
In light of the world wide advocating of low carbon economy, zhejiang tormin electrical Co., Ltd. Will carry on the mission of low-carbon illumination, energy conservation & emission reduction, and strive to create a first class brand for industrial lighting in China with the operation guidelines of energy conservation, environmental protection, pragmaticness and innovation. We are always committed to the r & d of a new generation of low energy consumption illumination products and the supply of green products for customers. In an era of low carbon illumination, the company deems the energy-favored illumination as a major project, makes use of the latest technology through independent r & d and technical exchanges and cooperations with counterparts from both at home and abroad, and develops a series of high efficiency products with the combination of efficient illumination sources and electric appliances, whose energy saving effects have reached the internationally advanced level, thus making due contributions for the energy conservation and emission reduction.
The company boasts powerful r & d and manufacturing capabilities, being one of the largest industrial illumination r & d and production bases in China. It is awarded as the technology-oriented small and medium-sized enterprise in zhejiang province, patent demonstration enterprise in wenzhou city, and key patent protection enterprise, etc. At the same time, tongming has obtained the certification of ISO9001: 2008 international quality management system, the national coal mine safety, the state luminaire quality supervision and inspection center, the state fire-fighting equipments quality supervision and inspection center, CE&RoHS, ATEX, IECex and other authorities.
The company enjoys very rich experiences in the planning and implementation of energy conservation projects in various plants, and has developed a number of energy-friendly illumination solutions geared to various industries in China. It provides a whole set of technical services for enterprises in the areas of electric power, metallurgy, petrochemical and coal mine, from the support of energy conservation plans, product selection, project installation, to after-sales services.
With the determination of contributing to the nation and shaping a centennial brand, and upholding the tenet of win-win among customers, employees and the company, zhejiang tongming electric appliance Co., Ltd is endeavoring to create an excellent platform for more and more elites who are to join tongming, and commonly establish a first class illumination enterprise.
