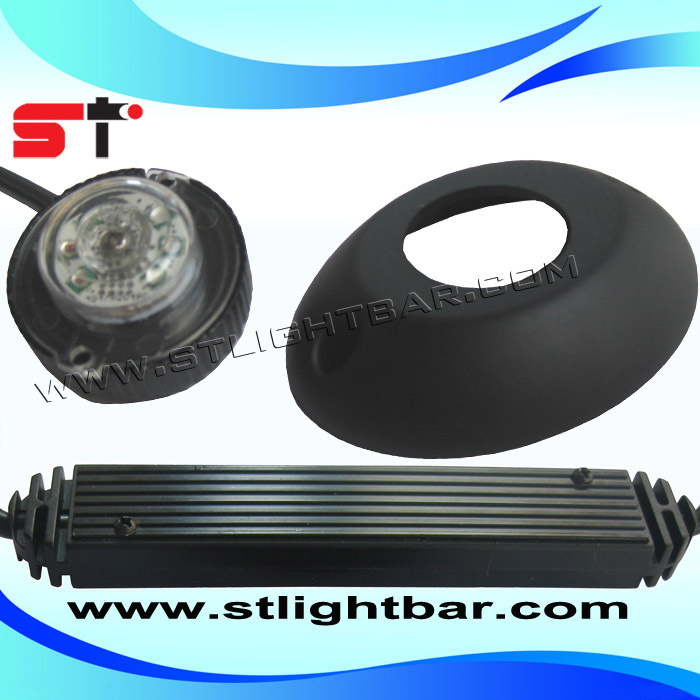

LED Eagle Light, car strobe lights
Features:
Generation III high power LED, Hide-away light
Pre-programmed multiple flash patterns
Alternating or simultaneous flashing available
Technical Specifications:
6 PCS of 1 Watt LEDs
19 Flash Patterns
Solid Alternating Flash Patterns
Mounts in a 1" hole
Wiring
RED: + 12V DC (Fuse@ 3A)
BLACK: - GROUND Connect to Ground vehicle chassis
YELLOW Pattern Selection
To select Flash pattern, apply Yellow to red, Less than 1 second for next pattern
About 3-5 seconds for steady burn, more than 5 seconds to turn off
White: Synchronization
Connect White wire of all heads together for synchronization
All heads must be on same flash pattern to be able to sync
Flash Patterns:
0. Random,
1. Single (split)
2. Double (split)
3. Quad (split)
4. Quint (split)
5. Mega (split)
6. Ultra (split)
7. Single - Quad (split)
8. Single H/L (split)
9. Single (all)
10. Double (all)
11. Quad (all)
12. Quint (all)
13. Mega (all)
14. Ultra (all)
15. Single - Quad (all)
16. Single H/L (all)
17. Steady 2 (California)
18. Steady 4 (all)
| Model | L306-6 | L306-12 (Similar products) |
| Voltage | 12V or 24V DC | 12V or 24V DC |
| LED | 1W Led, 6pc/lighthead, 1pc lighthead | 1W Led, 12pcs/lighthead, 1pc lighthead |
| Led Color | Green /Red/Blue/Amber/White/Purple | Green /Red/Blue/Amber/White/Purple |
| Dome Color | Clear | Clear |
| Lens material | Polycarbonate (PC) | Polycarbonate (PC) |
| Operating Temperature | 40 to 55 Centigrade | 40 to 55 Centigrade |
| Dimensions | Mounts in a 1″ hole | Mounts in a 1″ hole |
| Flash patterns | 19 flash patterns | 19 flash patterns |
