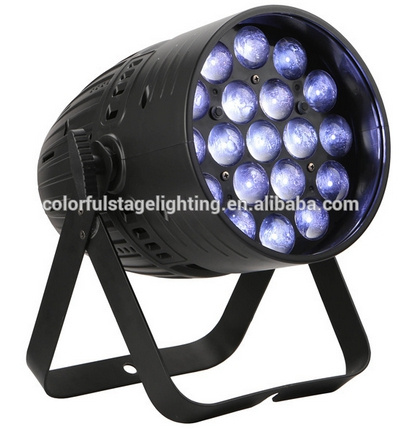

19x15W LED Zoom Par LED Wash Zoom Par Light
specifications: |
Operating Voltage | 90-240VAC, 50-60 Hertz |
Light Source | 19*15-watt Quad-Color LEDs |
Power | 300W |
IP Rated | IP20 |
Color | RGBW standard color system |
Beam angle | 15degree, 25degree (standard), 30degree, 45degree (selectable) |
Luminous Intensity | 48,000 Lux @ 1m (full white) |
DMX Channels | 4 or 8 Channels |
DMX | 3-pin XLR Male,3-pin XLR Female |
Control Panel | LED 4-button control panel |
Operating Modes | Standalone, Master/Slave, Sound Active, Color Preset |
Strobe | 0-30Hz/Second |
Structure | Cast aluminum chassis,honeycomb design,high quality cooling system |
Application | Stages, church, night clubs, entertainment halls, Disco, Hotels, shops... |
Dimmer | 0-100% linear adjustment |
Warranty | 2-year limited warranty, does not cover malfunction caused by damage to LED's. |
Weight | 5.0KG |
Size | (LxWxH): 660X650X370mm |
Features: |
1, Astounding RGBW quad color mixing via 19x 15W Red/Green/Blue/White "4-in-1" LEDs |
2, 4/8-channel RGBW wash light |
3, Built-in automated programs via DMX |
4, Built-in color macros via DMX |
5, Full color mixing with or without DMX control |
6, Full electronic dimming & 1-30FPS strobing |
7, Advanced LED display with 4-button control panel |
8, 3-pin DMX input and output connectors |
9, Dual locking yokes for tons of positioning flexibility |
10,Great for performance stages where traditional PAR cans emit a lot of heat onto performers |
11,Tough-As-Nails IP20-rated enclosure |
12,Totally silent convection cooling |
LIGHT SOURCE
* LEDs: 19pcs 15W Quad RGBW 4-in-1 LEDs
* LEDs brand: Osram
* Color temp of white LED: 6500K
* Color rendering index(CRI): Ra>80
* LEDs average lifespan: >60,000hrs
* Drive mode: constant current
* Drive current(mA): 800
OPTICS
* Electronic zoom: 5°-60° linear
* Flicker free (refresh rate >5K Hz)
* Light ouput (full Bright)@5°: 2000Lux@6mtr
* Light ouput (full Bright)@60°: 400Lux@6mtr
COLORS
* RGBW color mixing
EFFECTS
* with zoom function
* Zoom motor: 3pcs linear 2-phase motors, low noise
* Electronic dimmer: 0-100% linear
* Electronic strobe: 1-20 flashes/sec.
* Built-in color changing macros
CONTROL AND PROGRAMMING
* Control mode: DMX, autorun, Master/Slave and Sound-activate
* Built-in microphone
* DMX Channels: 5/7/8CH
* Setting and addressing: 4-digit LED
* DMX Data In/Out: XLR 3Pin (XLR 5Pin is optional)
BODY
* Housing: ABS engineer plastic
* Housing color: black (white optional)
* Housing surface treatment: metal baking finished
POWER SUPPLY
* Power consumption: Max. 300W
* Power supply: AC100V-240V, 50/60Hz (auto-ranging)
* Power In/Out: Powercon, daisy chain
COOLING & THERMAL MANAGEMENT
* Thermal management system ensures long life of LEDs
* Heatsinks in aluminum for LED source
* Cooling: forced air convection, with 1pc slient fan
* Cooling fans' speeds adjustable
* Cooling fans automatically started once LEDs light up
SAFETY DEVICES
* Power failure memory
* Electronic protection against short circuit
RIGGING & ASSEMBLING
* with double yokes
ENVIRONMENT AND PHYSICAL
* IP rating: IP20
* Environment temp: -20°C-60°C
* Dimensions(mm): L260 x W205 x H280 (without yoke)
* Net weight: 5.0kg
*Strong carton: 660*650*370mm 4pcs/carton
*Flight case: 1020*720*560mm 6pcs/case
ACCESSORIES
* Power input cable included, length 1.5M
* DMX cable not included (optional)
