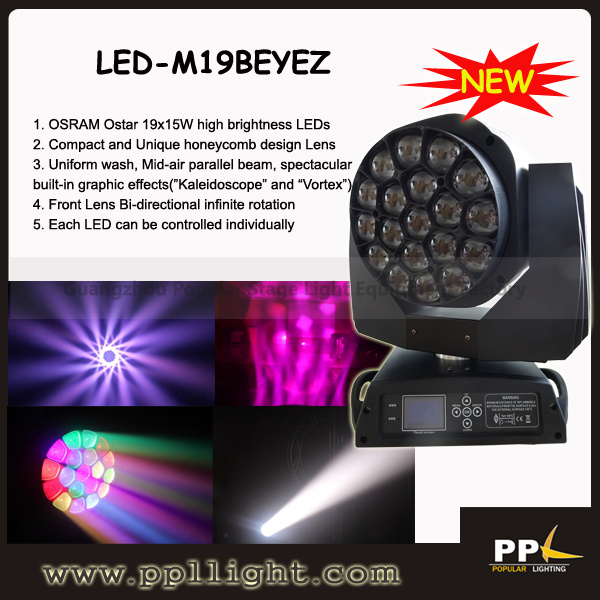

FEATURES:
1. Osram Ostar 19x15w 4IN1 RGBW
2. Compact and unique honeycomb design
3. Uniform wash, mid-air parallel beam, spectacular built-in graphic effects
4. " kaleidoscope" and "Vortex" wonderful effect
5. Excellent zoom angle: 4-60°,suitable for small and big applications.
6.Individual LED control, Benefit for dynamic effect.
7.Front lens Bi-directional and continuous rotating.
8. CTO Linear controlled 2500-8000K.
TECHNICAL PARAMETERS:
POWER SUPPLIES
100-240V 50/60Hz
LAMP SOURCE
19×15W Osram Ostar RGBW LEDs,50,000 h.
Color temperature: 2500-8000k linear adjustment
OPTICS
4°-60° Electronic Zoom angle
EFFECTS SECTION
Three operating modes: wash, beam, FX (Kaleidoscope effects)
Front Lens Bi-directional Rotation
Digital Wash-Beam Framing effect
Beam edge softening control (in Wash mode)
0-100% linear electronic dimmer
Adjustable speed stop/strobe effect, with instantaneous blackout
Dedicated channel for color temperature setting
RGBW auto-tuning
CONTROL AND PROGRAMMING
Control Mode: DMX512,Sound-actived,Master/slave
DMX Channels: 21CH(Standard)/35CH(Shapes)/78CH(Extend) /96CH(Extend RGBW) /92CH(Full)
DMX512: 3/5-pin XLR IN-OUT sockets
Power connect: Powercon in&out
MOVING BODY
Movement by means of two stepper motors, controlled by microprocessor
Automatic repositioning of PAN and TILT after accidental movement not
controlled by control unit.
Display: LCD display
Travel:
PAN = 540°
TILT = 210°
Dimension:
Size:494*358*253
Weight:15 Kg
DMX Channel:
| channel | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| function | Red | Red fine | Green | Green fine | Blue | Blue fine | White | white fine | Linear CTO | Marco colour | strobe |
| 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 |
| dimmer | dimmer fine | Pan | Pan fine | Tilt | Tilt fine | Function | Reset | Zoom | Zoom Rotation | Shape selection |
| 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 |
| Shape speed | Shape fade | Shape R | Shape G | Shape B | Shape W | Shape dimmer | background dimmer | Shape Transition | Shape offset | Foreground strobe |
| 34 | 35 | 36 | 37 | 38 | ......... | ....... |
|
|
|
|
| background strobe | background select | Red Led 1 | Green Led 1 | Blue Led 1 | Red Led... | Green Led .... |
