Model:ST-RL190W01

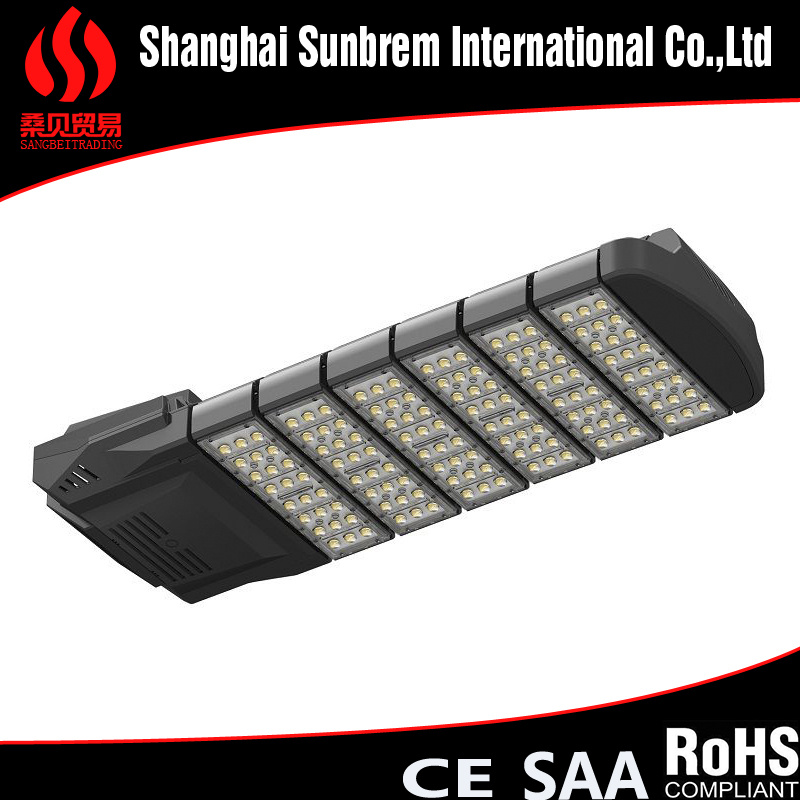

Prodcut name:190W LED street light
LED Lighting,LED Lamp,LED street light, LED Outdoor Lighting,various Industrial Lighting,LED illumination for selection
Features:
1)IP65, Good water proof.
2)Saving 90% energy than traditional incandescent lamp.
3)Lifetime can reach 50.000 hours.
4)Environmental protection, no strobe, No UV or IR radiation.
5)Excellent color rendering, visual clarity
6)No dirt retention and ponding, reduce the clean time, suit for outdoor use .
7)Perfect total aluminum heat dissipation.
8)Die-casting aluminum housing, good resistance to compression & corrosion.
Below is the specification for LED street Lighting,If you have specific parameter and requirements for our LED street Lighting,Customization is available.
| Specification for LED Street Light |
| Product Name | LED Street Light |
| Model No | ST-RL190W01 |
| Power consumption | 190W |
| Rate life | 50,000 hours |
| Input voltage | AC 100240V |
| LED | Bridgelux |
| CCT | 5700 ±500K;4000 ±400K;3000 ±300K |
| Power Factor(PF) | > 0.9 |
| CRI | >70 |
| Luminous Efficacy | 95lm/W |
| Beam Angle | 75°~150° |
| Dimension(mm) | L875xW315xH204 |
| Driver | Kingsum |
| N.W | 10.13kg |
| Operating Temp. | -20ºC~ +40 ºC |
| IP Rate | IP65 |
| Warranty | 3 Years |
| Feature | 1)IP65, Good water proof.
2)Saving 90% energy than traditional incandescent lamp.
3)Lifetime can reach 50.000 hours.
4)Heat low, epoxy resin packaging, solid & cold light source.
5)Environmental protection, no strobe.
6)Excellent color rendering, visual clarity.
7)The light arm able to adjust ±6°,each module angle can adjust ±6°.
8)The module able to remove & replace, double adjustable angle & rotation function.
9)Perfect total aluminum heat dissipation.
10)Die-casting aluminum housing, good resistance to compression & corrosion. |
| Application: |
| Trunk road, highway, Elevated road, Street, Overpass, Sidewalk, Square,Parking lot, Park, School, Industrial park. |
| product catalogue |
| Product Name | street light |
| Model No | ST-RL60W02 | ST-RL90W02 | ST-RL120W02 | ST-RL170W01 | ST-RL190W01 | ST-RL220W01 |
| Power consumption | 60W | 90W | 120W | 170W | 190W | 220W |
| LED | Bridgelux |
| Rated life | 50,000 hours |
| Input voltage | AC 100240V |
| Power factor (PF) | >0.9 |
| CCT | 5700± 500K 4000±400K 3000± 300K |
| CRI | >70 |
| Luminous efficacy | 95lm/W |
| Beam angle | 75°*150° |
| Dimension (mm) | 511x315x204 | 602x315x204 | 693x315x204 | 784x315x204 | 875x315x204 | 966x315x204 |
| N.W(kg) | 5.33kg | 5.58kg | 7.77kg | 8.77kg | 10.13kg | 11.99kg |
| Operating Temp | 20°C ~ +40°C |
| IP code | IP65 |
| Warranty | 3 years |
FAQ:
Q1: What's your delivery time for sample and batch order?
A1: Your sample can be ready within one 3-5 working days.
For the batch order, the delivery time is around 15 working days.
Q2: What's your payment term?
A2: The payment term is 30% by T/T, the balance before shipment.
L/C also is available.
Q3: Do you have MOQ(Minimum Order Quantity) for the order?
A3: There is no limit for the quantity. Any quantity is available.
Q4:Can we do customized packing?
A4: Yes, the printing content can be made according to your requirements.
Q5:What is your difference from the other trading companies?
A5: Actually, Shanghai Sunbrem international Co.,ltd is a integrated enterprise of industrial and trading for the design, research, manufacturing and sale for household kitchen wares and LED lightings, owning two production bases, one is Zhejinag Fengheng Electrical Co.,ltd and the other one is Zhejinag Fengheng lighting technology Co.,Ltd.
If you have any questions, please feel free to contact us at any time
Yours Carol
TEL:86-021-68783930-806
Shanghai Sunbrem International Co., Ltd was established in 2002, located on the bank of the Huangpu River which is honored as the the Oriental Pearl. It is a integrated enterprise of industrial and trading for the design, research, manufacturing and sale for household kitchenwares and LED lightings, owning two production bases, one is Zhejinag Fengheng Electrical Co., Ltd and the other one is Zhejinag Fengheng lighting technology Co., Ltd, now it has been the famous company for household kitchenwares and LED lightings, one of its son factories, Zhejiang Fengheng Electrical Co., Ltd, possessing strong R&D and project application abilities and products have been enjoying the prestige at home and abroad; The other manufacturing base Zhejiang Fengheng Lighting Technology Co., Ltd, specialized in the developing of LED Lighting industry, owning complete perfect quality control and after-sale system, now it has been the first choice supplier for the indoor and outdoor lightings to the world's projects.
Shanghai Sunbrem International Co., Ltd, has been following ISO9001: 2000 quality control system strictly, all the products have passed CE, RoHS, FCC, CB, SAA, UL and the other approvals. It has already been the leading enterprise in the household kitchenwares for more than 20 years'development and its brand"Fuhand"shares extremely good reputation in the market. Main products are electrical skillets, electrical griddles, electrical grills, electrical griddles and grills, electrical woks and crepe makers, advanced producing facilities, well-experienced production workers, omnibearing quality control system, super management notion, all these to make us your best choice. Zhejiang Fengheng Lighting Technology Co., Ltd, main products are LED commercial lightings, LED office lightings, LED household lightings, LED outdoor lightings. All products adopt unique design, scientific heat dissipation structure, high lumens importing chips, high light transmittance lens, high efficiency self-developed drivers to make sure a stable and reliable quality and now they have been exported to Europe, America, Middle-East, South America, South Africa, Southeast Asia and the other parts of the world.
Shanghai Sunbrem Internatinal Co., Ltd, relying on excellent development strategy, depending on the elites and technicians who have modern enterprise management experience, to serve the world and boost the science improvement as its business principle, to orient the market, to improve clients satisfaction continuously, to provide safe, environmental, energy-saving, high performance cost ratio products, to keep exploration and innovation, to continue improving, all we want to devoted is to contribute for a better life.
Shanghai Sunbrem international Co., Ltd is now in the ferry with a new attitude after 10 years' development, although its changeable for the world, we will continue to adhere to our promises to clients, devoted to make household kitchenwares and LED lighting industry a leaping improvement with scalizatioin, exquisitlization, brandlization and internatioinalizatioin, boost the development of Chinese kitchenwares and lighting industry.
Shanghai Sunbrem Internatioinal Co., Ltd not only have expanded our business scale but also try our best to explore new ways to improve people's lifestyle and will continue to compose new chapters in the development of the company in the near future.
