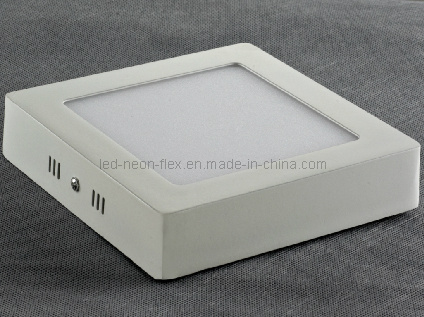

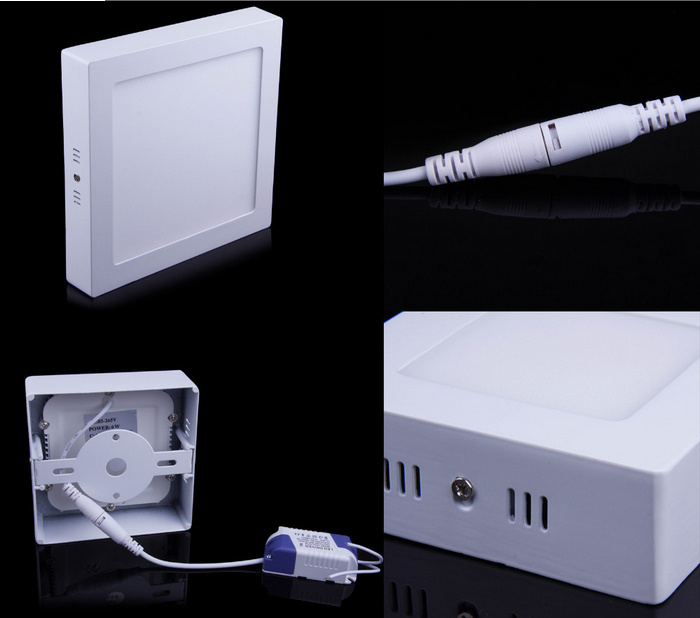

18W Surface Mounted LED Panel Light, small LED PanelModel No.: WD-Mount02-S-18W
Features:- Super thin, small size to save space.
- side lighting, using reflective light leading board, no glare, eyes protecting.
- Use constant current driver, no stroboflash.
- wide voltage 85~265V, world-wide use.
- Die casting aluminum housing, good heat dissipation.
- replace downlight directly.
- PMMA Light Guide Plate, PMMA diffuser
- Shape: Round, Squar
- Wattage: 12W (others 3W, 6W, 9W, 15W, 18W, 24W also available)
- Lumen: 80~90LM/W

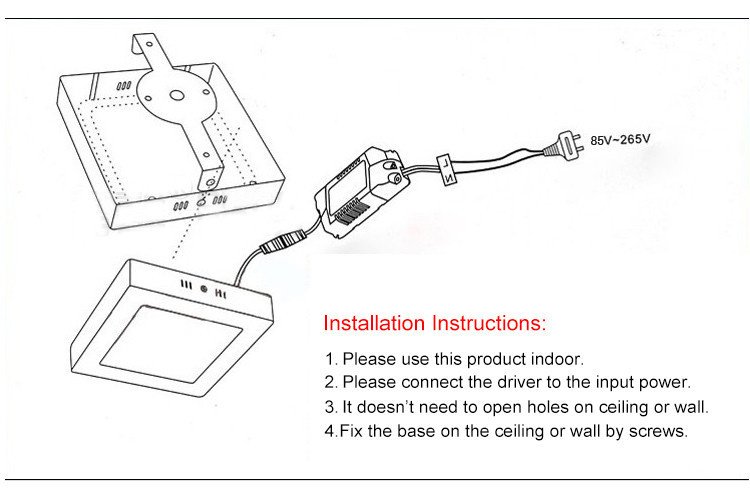

Installation:
Note:
1. Indoor application in dry environment only.
2. Do not cover flammable materials over lamp.
3. Make sure the power is off when processing installation.
4. Professional maintenance personnel is required if repair is needed.
Applications:
Hotels.
Conference / Meeting rooms.
Factories & Offices.
Commercial Purposes.
Residential / Institution Buildings.
Schools, Colleges & Universities.
Supermarket Lighting.
Item No.: |
WD-Mount02-S-18W |
Input voltage: |
AC100-245V |
LED chip: |
Epistar -SMD2835 |
LED Qty: |
90 Pieces |
Power: |
18W |
CRI: |
≥75 |
Protection Grade: |
IP44 |
Lamp Size: |
225mm*225mm*H40mm |
Hole size: |
N/A |
Beam Angle: |
120° |
Harmonic : |
≤ 10% |
Power factor: |
≥ 0.9 |
Warranty |
2 years |
Luminous Flux: |
80lm/wattage Warm white
85lm/wattage Pure white |
Color temperature: |
2700-3000K Warm white
6000-6500K Pure White |
Housing Material: |
Die-casting Aluminum |
Base Material: |
PMMA LGP,PMMA Diffuser |
Shape |
Round / Square |
Interface: |
Terminal |
Dimming: |
Optional(yes/no) |
Installation: |
Embedded |
Storage temperature: |
-20 °C to +60 °C |
Working temperature: |
-20 °C to +40 °C |
Life: |
> 50,000 hours |
