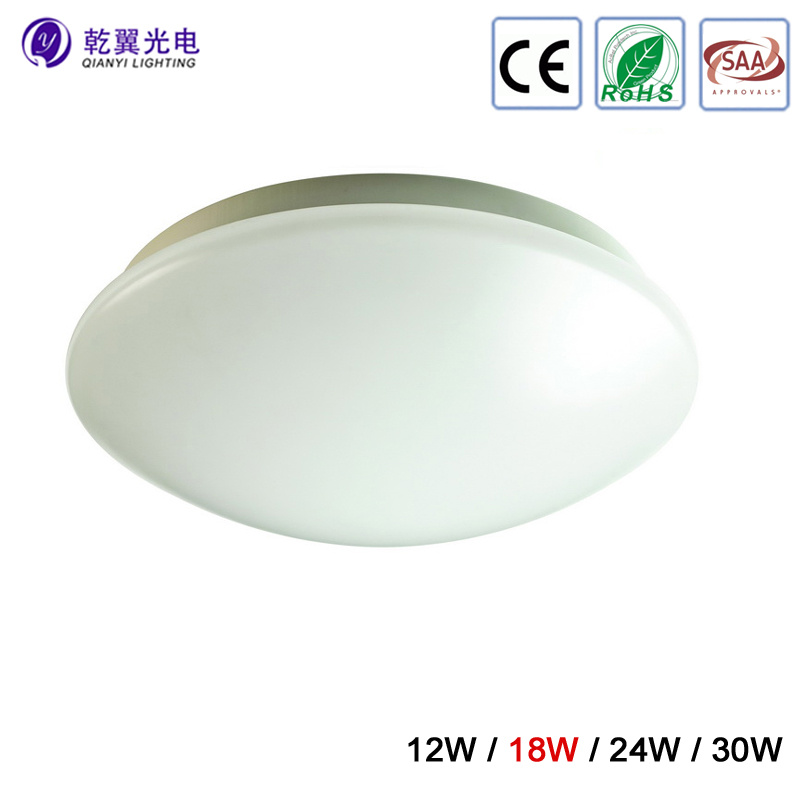

18W SAA approvals lighting standards IP44 round LED ceiling light
Light source: high quality 0.5W SMD LED
CCT: cool white(5500-6500K), commercial white(4000-4500K)warm white(2800-3300K)
Color of aluminum frame: aluminum silver, white painting
Input Voltage: AC 110-240V
Installation: Surface mounted
Certification: CE, RoHS, SAA
Warranty: 3 years
Brand: Qianyi
Size: D290*102mm
Patented products. Counterfeiting is not allowed.
LED ceiling light with12W/18W/24W/30W surfaced ceiling light
Model No. | Capacity(W) | Lighting Resource | Input Voltage/ Frequency | Luminous Flux(lm) | Installation | Optional Functions | IP Grade |
6000-6500K | 4000-4500K | 2700-3300K | Emergency Lighting | Smart Movement Sensor Switch |
QY-CL4-12W | 12 | 5730SMD | AC90-265V/ 50-60Hz | 780 | 750 | 720 | Surfaced |
|
| 50 |
QY-CL4-18W | 18 | 1250 | 1200 | 1150 |
QY-CL4-24W | 24 | 1500 | 1300 | 1200 |
QY-CL4-30W | 30 | 2100 | 1900 | 1800 |
|
|
|
|
|
Benefits |
|
|
|
|
|
|
|
|
|
|
High-quality aluminum and lumisheet acrylic plate, with 90% light transmittance |
Diffused soft lighting effect |
Will not fade colors, avoids inventory spoilage |
Smart,unique design |
Using integrated heat-dissipation aluminum structure improve the heat dissipation greatly |
3 years warranty |
|
|
|
|
|
Features |
|
|
|
|
|
|
|
|
|
|
Emits virtually no UV/IR light in the beam |
Contains no mercury,Lead and other Toxicants |
Approved by CE&RoHS |
|
|
|
|
|
Ideal for ambient lighting in Residential,Office,Hotel,Museum,Restaurant,Government Buildings and Hospitality. |
Dimension:
Model | Dia(mm) | Height(mm) |
QY-CL4-R12W | 278 | 99 |
QY-CL4-R18W | 290 | 102 |
QY-CL4-R24W | 350 | 109 |
QY-CL4-R30W | 400 | 121 |
Package:
Model | Inner Box | Carton | G.W/CTN | QTY/CTN |
QY-CL4-R12W | 32*32*10.5mm | 680*570*360mm | 8kgs | 10pcs |
QY-CL4-R18W | 38*38*11mm | 810*600*640mm | 12kgs | 10pcs |
QY-CL4-R24W | 44*44*12mm | 640*490*480mm | 7.5kgs | 5pcs |
QY-CL4-30W | 50*50*13.5mm | 810*600*640mm | 9kgs | 5pcs |
Parameters:
Model | Light Source | Power | Lumen Output | Ra |
QY-CL4-R12W | 24pcs 0.5W SMD LED | 12W | 650-850lm | >75 |
QY-CL4-R18W | 36pcs 0.5W SMD LED | 18W | 1000-1300lm | >75 |
QY-CL4-R24W | 48pcs 0.5W SMD LED | 24W | 1400-1600lm | >75 |
QY-CL4-R30W | 60pcs 0.5W SMD LED | 30W | 1800-2100lm | >75 |
Application:
1. Ceiling
2. Wall
Installation:
1. Open the front cover, connect the input power cord to the terminal block.
2. Fix the light to the ceiling or wall.
3. Close the front cover.
