IP44 LED Oyster Ceiling / Wall Light / ON-OFF Function / Smart Version
Item No.: QY-CLS2-18WFeatures:Luminous efficacy: 70lm/W
Light source: high quality 0.5W SMD
LEDCCT: cool white(5500-6500K), commercial white(4000-4500K)warm white(2800-3300K)Color of aluminum frame: aluminum silver, white painting
Input Voltage: 110-240 VAC
IP Class: IP44
Installation: Surface mounted
Certification: CE, RoHS, SAA
Warranty: 3 years
Brand: Qianyi
Size: D242*82mm
Application:

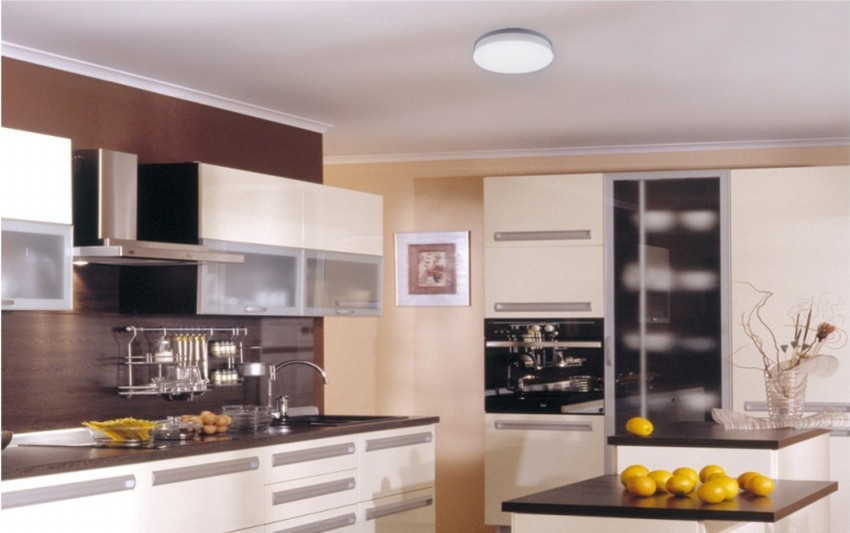

1. Ceiling
2. Wall
Installation:
1. Open the front cover, connect the input power cord to the terminal block.
2. Fix the light to the ceiling or wall.
3. Close the front cover.
Dimension: | Model | Dia(mm) | Height(mm) |
| QY-CL2-12W | 242 | 82 |
| QY-CL2-18W | 298.5 | 91 |
| QY-CL2-24W | 368 | 192 |
| QY-CL2-30W | 428 | 87 |
Package: | Model | Inner Box | Carton | G.W/CTN | QTY/CTN |
| QY-CL2-12W | 32*32*10.5mm | 68*57*36mm | 10kgs | 10pcs |
| QY-CL2-18W | 38*38*11mm | 81*60*64mm | 14kgs | 10pcs |
| QY-CL2-24W | 44*44*12mm | 64*49*48mm | 9kgs | 5pcs |
| QY-CL2-30W | 50*50*13.5mm | 81*60*64mm | 12kgs | 5pcs |
Parameters: | Model | Light Source | Power | Lumen Output | Ra |
| QY-CL2-12W | 24pcs 0.5W SMD LED | 12W | 650-850lm | >80 |
| QY-CL2-18W | 36pcs 0.5W SMD LED | 18W | 1000-1300lm | >80 |
| QY-CL2-24W | 48pcs 0.5W SMD LED | 24W | 1400-1600lm | >80 |
| QY-CL2-30W | 60pcs 0.5W SMD LED | 30W | 1800-2100lm | >80 |
