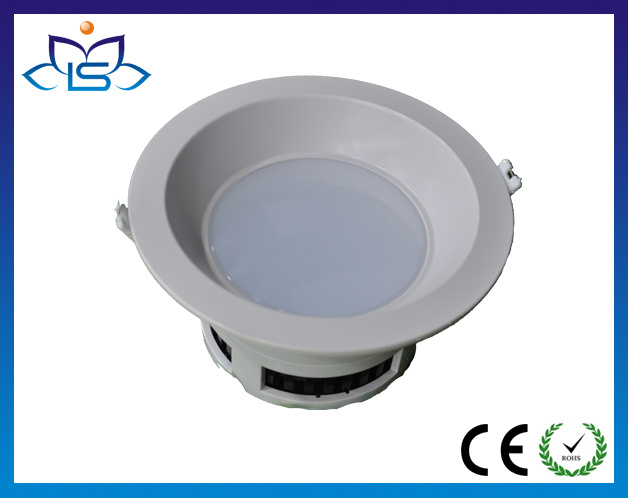

LED DOWN LIGHT(fire-rated)
Product introduction
1. Structure design: external structure of whole lamp is adopted V0 level PC fire-proof material, light weight ,heat-conducting property ,high strength, high temperature resistance.
2. Anti-glare design: the luminous surface is designed by arc-surfaced, it is also V0 level PC fire-proof material, light is soft, glare problem is solved efficiently.
3. PCB and radiator: our PCB is adopted high thermal conductivity aluminum, the radiator is adopted 6063 aviation aluminum, it gives off the temperature efficiently when the product working,and ensure the long life of product.
4. light source and driver: we adopt original Samsung 5630 LED as light source(high quality, high lumen, high CRI ), also adopt high conversion efficiency and high PF constant current modularized driver, ensured the high stability of product.
Item NO | IS-DL06-15W | IS-DL06-18W |
Power | 15W | 18W |
Input Voltage | AC100-240V 50/60Hz | AC100-240V 50/60Hz |
THD | 13%-18% | 13%-18% |
Dimension(Unite: mm) | Φ190*H95.5mm | Φ180*H95.5mm |
Open hole | Φ170mm | Φ170mm |
Led Type | 5630/5730 | 5630/5730 |
CRI | >70 | >70 |
Luminous | 1050lm±100 | 1250lm±100 |
Beam Angle | 75° | 75° |
Working Temperature | -20---55ºC | -20---55ºC |
Storage Temperature | -20---55ºC | -20---55ºC |
