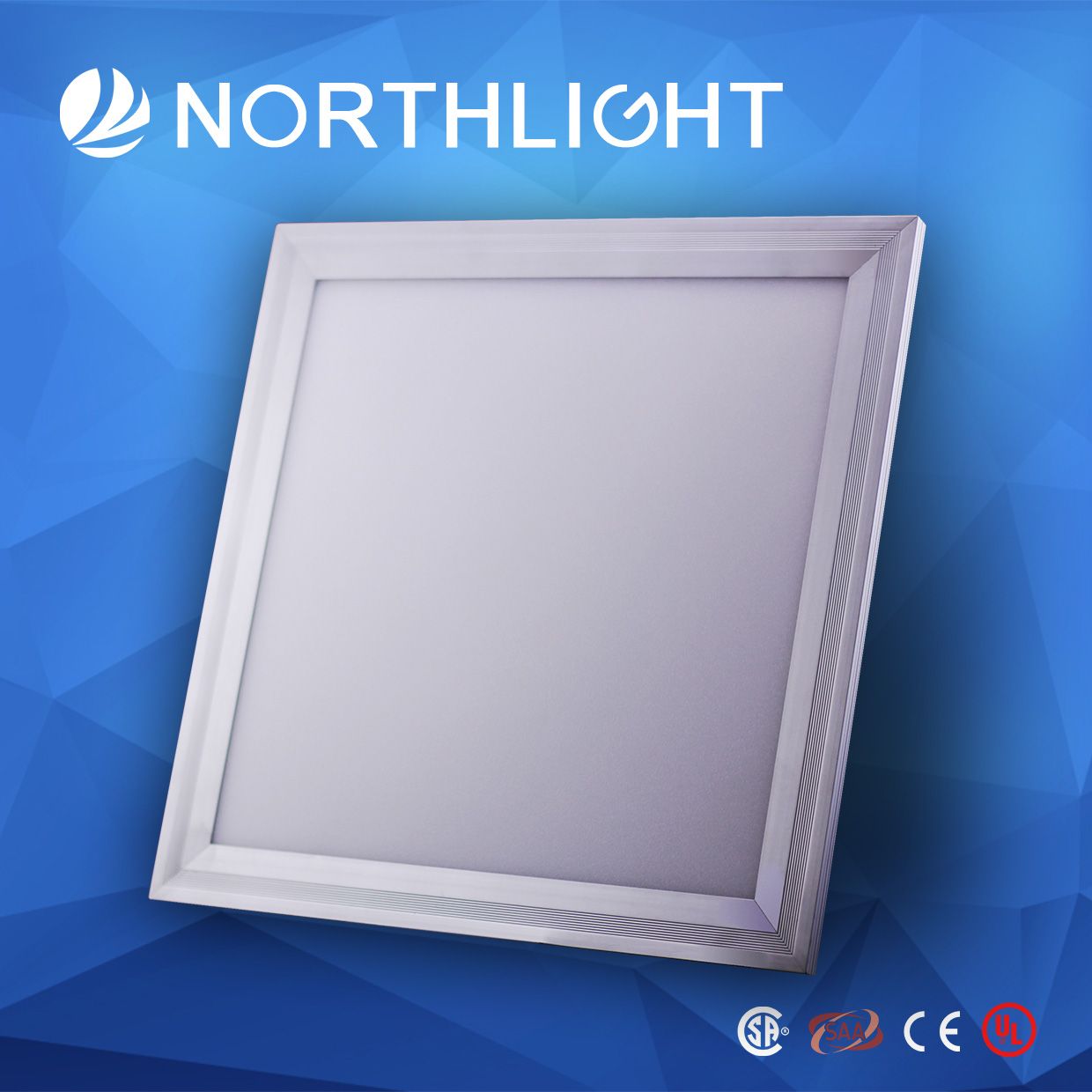

18W 300*300mm LED Panel Light
1. Advantages
1). Easy installation: Simply replace the grill lamp or false ceiling, or hang from the roof using chains;
2). LED panel light with super slim of 12mm thinckness, making for attractive and versatile signage;
3). Edgewise, the LEDs emit evenly lighting through a LGP ( Acrylic ), the luminosity is bright, soft and comfortable for eyes;
4). Cooler than traditional display, versatile in size, shape and configuration;
5). LED panel light with four sides illuminating,beat heat sink,with temperature rise less than 20 degree,good for extending the panel's lifespan;
6). Optimized circuit design ensures no interference with any other LEDs when a single one fails.
2. Feature
1). LED panel light with 80% less power consumption than traditional lighting source;
2). SMD LED panle light from Epistar or San'an with superb feature;
3). Ultra thin and light, with thickness only 12mm;
4). External high PF Constant Current LED Driver,instant start, No flickering and No humming, safe and reliable;
5). Edgewise, the LEDs emit evenly lighting through a LGP ( Acrylic ), the luminosity is bright, soft and comfortable for eyes;
6). LED panel light with long lifespan >50,000hours, 3 years warranty,CE,ROHS approved.
3. Applications
LED panel lights are used for Ceiling, Walls, art gallery, the car, the counter,etc.
4. Installation
1). Fix led panel light to the ceiling
(1). Embedded installation and replace the ceiling with the panel which has the same specifications;
A. Take off the ceiling and put the pannel into the ceiling from the diagonal;
B. Fix led panel light to the T shelf.
(2). Inhaled installation
Mount the ceiling frame to the hole, fix the smd led panel light as showed in the above A.
2). Fix led panel light on the wall
(1). Fix the wall frame to the wall with screws;
(2). Settle the driver into the frame;
(3). Screw the panel on four angles of the frame and tighten the screws;
(4). Fix the hanging rope to the ceiling;
(5). Screw the hanger into the threads in the four angles of the panel;
(6). Adjust to the proper height.
5. Package Information
1, QTY:10pcs/box 2,FCL GW: 10KGS 3,CartonSize: 36×31.5×32.5cm
Size:300*300mm
Hole Size:295*295mm | Output Power: | 18WAatts | Pure White 6000K
Warm White 3000K
Natural White 4500K |
| Input Voltage: | AC85-265V |
| Source Type: | SMD2835*80PCS |
| Light Flux: | 1150LM |
| CRI: | Ra=83 |
| Shell Material: | Aluminum + LGP + Diffusion Plate |
| Installation: | Embedded / Paperback |
| Lifespan: | >30000H |
| Product Warranty: | 2 years |
