1.Specifications

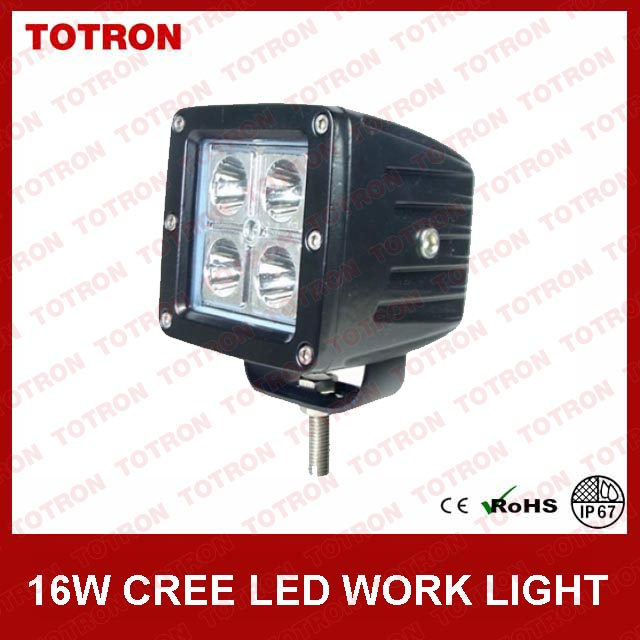

ModelT1016
Input Voltage9-32V DC
Power 16W(4W*4pcs CREE LED)
Current Draw 1.34A @ 12V; 0.67A @ 24V
Color Temperature 6000K
Lumen 1280 lm
Beam Pattern spot
Housing Material Die-cast Aluminum Housing
Lens Material PMMA
Mounting Bracket Stainless Steel
Electronics Integrated-Epoxy Encapsulated
Operating Temperature -40C ~ +60C
IP Rating IP67
Protections Reverse Polarity
Dimensions 75 x 80 x 82mm
Warranty 12 months
Lifespan +30000 hours
Weight 0.5 kg
2.Other style lights for choose
3.Product Feature
. Wide operating voltage range: It can apply to different types of vehicles.
. Long life: More than ordinary advanced LED light bulbs, more than 30000 hours life
. Light perception: A softer light to prevent glare
. Waterproof and anti-corrosion: It can in the rain or harsh environments
. Lumen is 90-120LUMEN / W, much higher than ordinary halogen 20-30LUMEN / W
4.Production line
5.Certificates
6.Payment
L/C, Western Union, Paypal, T/T
7.Shippment
By Sea .By FedEx, UPS, DHL, TNT, EMS, etc.
8.Applications
Agricultural, Construction, Fire & Rescue, Forestry, Industrial,
Military, Mining, Trucks, Off-Highway, Recreational, Utility etc.
9. Warranty
12 months.
10. How to place a order?
1. Email us the model name, beam pattern and quantity of each, detailed shipping address and telephone number, prefered shipping way and payment way.
2. PI (performa invoice) made and sent to you
3. Payment after confirm the PI
4. Arrange production
5. Send goods in 2-7 days(according to the storage status)
6. Advise the tracking number or B/L(by sea)
7. Goods delivered, welcome reorders!
If you have any questions, pls feel free to contact us.
With years of experience in electronics manufacturing, Totron is one of the most professional manufacturers of HID & LED lighting products in China. Totron specializes in HID & LED lighting products for Vehicular, Industrial, Architectural and Commercial applications. Such as LED Light Bars, HID Work Lights, LED Work Lights, HID Spotlights, HID Searchlights, etc. Our products are widely used as Heavy equipment lighting, Agricultural machinery Lighting, such as Truck Lights, Forklift Lights, Marine Lights, Crane Lights, Road Roller Lights, Harvester Lights, etc. Totron sells its products globally, through dealers, distributors and OEMs.
Quality Products:
Totron products are exclusively developed and manufactured in China to meet international standards. Totron's range of lighting integrate advanced thermal management, short circuit and open circuit protection and many other innovative features. All products undergo rigorous testing during the development and manufacturing process and before leaving the factories. Totron's history, experience and approach to engineering and manufacturing ensure that their products stand out amongst its competitors and are the highest quality lights available on the market.
Custom Lighting Solutions:
If your application has special requirements, Totron's team of engineers, scientists and designers are able to develop custom lighting solutions specifically to meet your project specifications.
