Home LED Light Products 16mm Outdoor Full Color LED Stadium Display

16mm Outdoor Full Color LED Stadium Display

16mm Outdoor Full Color LED Stadium Display
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Western Union
Main features of P16 outdoor LED video diaplay
1. Competitive prices, reliable quality
2. High brightness & High resolution;
3. High contrast ratio which ensures vivid images;
4. Low power consumption, environmentally friendly;
5. Wide viewing angle, 140 degree both horizontal and vertical;
6. Customizable for various sizes;
7. Compatible software: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA;
8. Excellent after-sales service, warranty of three years;
9. CE, RoHS, ISO certificate

Packaging & Delivery
Packaging Detail: Standard export carton case/flight case/carton box
Delivery Detail: 22-30 days

About LEDSolution
LEDSOLUTION is one of the most competitive Global suppliers of Complete LED Video Displays, LED Lightings and LED Components Solutions. We are specialized in high quality LED components, LED displays and LED lighting products including research, development, production and marketing, serving various turnkey solutions for government projects, corporate image projects, commercial projects and release of network information, etc.

Applications:
LED display is applied for advertising, city beautifying, information publicity, great concerns and relative activities.
1. Outdoor advertising, digital billboards, advertising in big companies

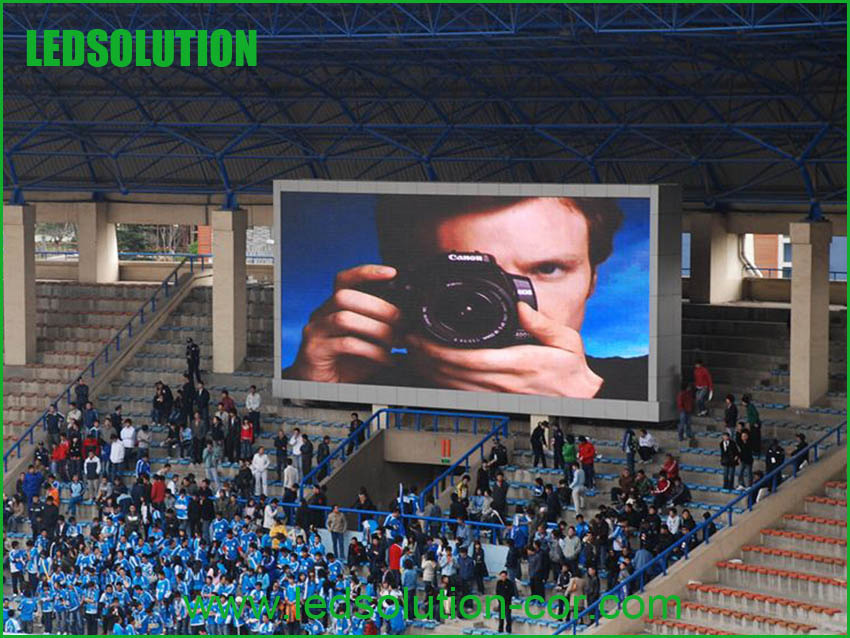

2. Stadium, Sports halls, fields, playgrounds
3. Airports, bus stations and railway passenger terminals
4. Facades of shopping malls, department stores, banks and car dealerships
5. Architecture and social projects, information systems in cities.
6. Show-business, concerts, festivals, motor shows and other public events.
 Model  LS-O-P10        LS-O-P12  LS-O-P14 LS-O-P16  LS-O-P20  LS-O-P25  LS-O-P31.25
 Pitch(mm)  10  12  14  16 20  25  31.25
 Pixel density(dot/square meter) 10000 6944 5102 3906 2500  1600  1024
 Pixel config.  1R1G1B 1R1G1B 1R1G1B  1R1G1B   1R1G1B  1R1G1B   4R2G2B
 Module Size(mm) 160*160  192*96 224*112 256*128  320*160  200*200  250*250
 Module resolution 16*16  16*8 16*8 16*8 16*8 8*8  8*8
 Cabinet size(mm) 960*960 768*576  896*672 1024*768  1280*960 800*800 1000*1000
 Cabinet reslution 96*96 64*48  64*48 64*48  64*48  32*32  32*32
 Brightness(nit) 6000 6000  6000  6000 6000  5000 5000
 Viewing angle 130/60 130/60 130/60  130/60  130/60  130/60  130/60
 Max. power(W/square meter) 860 706 518  610  488  350  600
 Avg. power(W/square meter)  344 283 208  244  196  140 240
Prod Model: LS-O-P16
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness: 6000nit
Viewing Angle: 130/60
Display Type: LED Video Display
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 2R, 1G, 1B
Pixel Pitch: 16mm
Display Function: Video Display
Scanning Mode: Static Scan
Certification: RoHS
Average Power Consumption: 220W / m²
Application: Stadium
Pixel Density: 3906dots/Sqm
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.

With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.

For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality

And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
