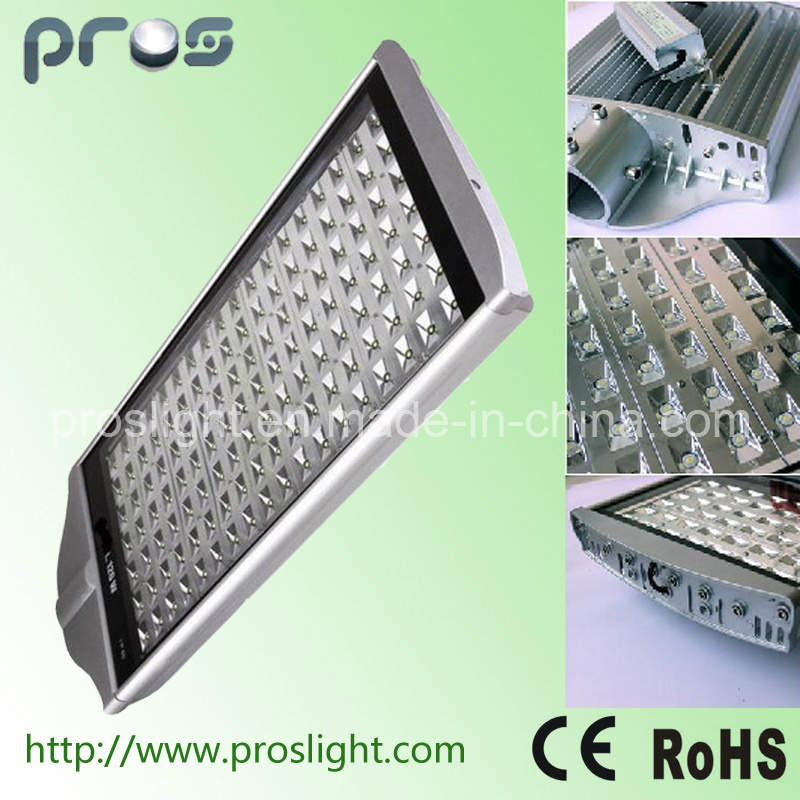

High Power Street Illumination is a new series of energy saving products that utilize high power LEDs as effective lighting source to traditional illumination, such as LPS, HPS, or MH street lights. LED Street Illumination provides a multitude of advantages over conventional incandescent light: LED Street Illumination is environmentally friendly, energy efficient, and cost-effective. This smart, "greener" option for outdoor lighting has emerged on the green scene due to the recent technological advancements of LED Street Illumination.
Product Features
1. Die-Casting Aluminum Alloy casing, High shock & vibration resistant. And high intensity toughened glass cover, good transparency. Sealed by reliable silicone rubber, waterproof and dust proof, can be long-term used in harsh environment.
2. Ideal heat dissipation design. Big heat sinking panel which can reduce the failure rate and extend lamp life.
3. High efficiency and power factor >0.9 LED power supply, Constant current. AC85-265V, Waterproof.
4. Epistar and Bridgelux LED, 110-120lm/w, super brightness, 2700K-7500K, Warm white; Pure white; Cool white.
5. LED Street Light can be cold start and hot start instantaneous, lifespan reaches 50000hrs. After installation, don't need to change light source, reduce the cost greatly.
6. Unique optical design & rectangular beam, suitable for roadway illumination
7. Good color rendering, CRI>80
8. No UV & IR, No Blinking and No Mercury & Lead free, It is completely Green product. Eco-friendly.
9. LED Light Energy saving system, saving 80% energy than the conventional Metal halide lamp, Sodium Light or HPS light
Typical Applications
Tunnel, Subway; Gas Station, Garage Lighting; Workshop, Factory Lighting; Yard, Square Lighting; Road, Highway Lighting; Station, Dock Lighting etc
|
Part Number |
PL-LD-RT168W |
|
Light Size |
310×840×80(mm) |
|
Input Voltage |
AC85-265V |
|
Power Power |
168×1W |
|
System Consumption |
183W |
|
Power Factor |
>0.9 |
|
Light Beam |
120 or 140 degree |
|
Color Temperature |
2500K- 8000K |
|
Working Temperature |
-35~50 degree |
|
Luminous Flux |
14280 lm±5% |
|
Protecting Grade |
IP66 |
|
Working Life |
>50000 Hours |
|
Average illumination |
Height 6M |
>80Lux |
|
|
Height 8M |
>45Lux |
|
Effective illuminated Area |
Height 6M |
8×20sq.m |
|
|
Height 8M |
10×26sq.m |
|
Light Distribution Curve/Beam Pattern |
Asymmetric (Bat Wing)/ Rectangular Beam |
|
Chief Material |
Aluminum Alloy |
|
Net Weight |
13kg |
|
Packaging Size |
900×360×130(mm) |
|
Installing Hole Size |
φ61(mm) |
Pros Light is an established high-tech factory specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We are especially well-placed in the field of Power LED thermal management and related lighting solutions.
Our product range:
1. LED Street Light
2. LED Bulb & Spotlight
3. LED Downlight
4. LED Panel
5. LED WallWasher & Floodlights
6. LED Explosion proof Light
7. LED High bay light
8. LED Tube T8
9. OEM & ODM Projects
