Home LED Light Products 160W LED High Bay Light with CE CB SAA Listed 5-Year Warranty

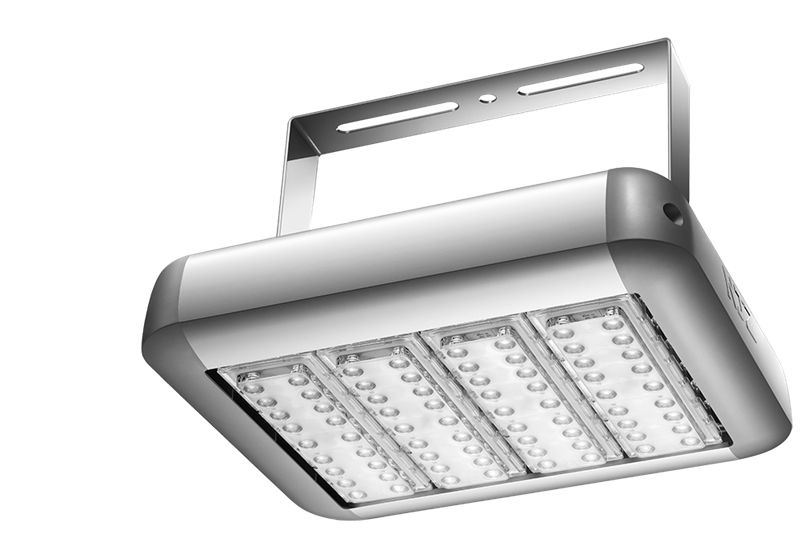

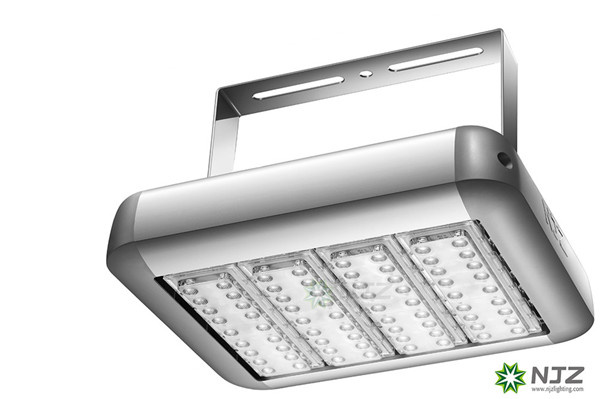

160W LED High Bay Light with CE CB SAA Listed 5-Year Warranty

160W LED High Bay Light with CE CB SAA Listed 5-Year Warranty
Price: US $ 162/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
LED High Bay & LED Floodlight & Tunnel Light

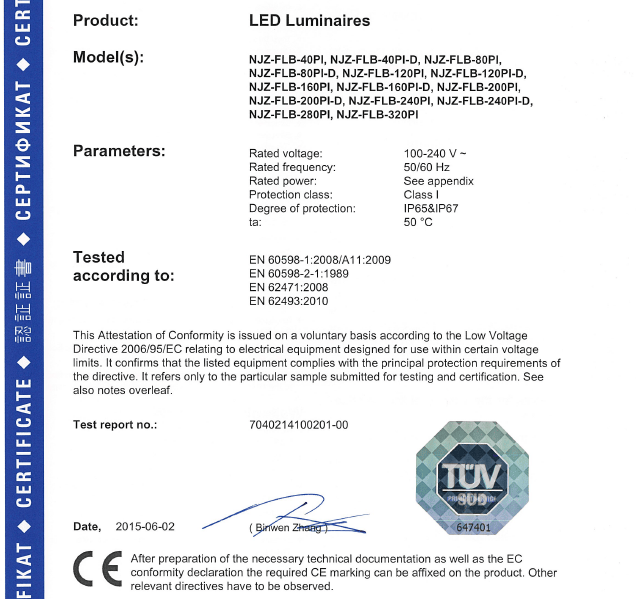

CE   CB   TUV   SAA    IP67





Product Features:

Replace 400W HID (HPS/Metal halide) or T5/T8 fluorescent fixtures

+ IP67
+ The whole light efficiency up to 105 Lm/W
+ Operating temp. range from -40 ºC to +50 ºC
+ Dimmable Driver
+ 50,000 hours @ L80 (80% lumen maintenance)



Application:

1. High Bay Lighting

Warehouse, Cold storage, Industrial, Tunnels, Gymnasiums, Garage


2. Area&Flood lighting

Architechtural, building security and spotlighting;

Parking lots, site, residential areas and pedestrian walkway lighting;


3. Sign lighting

Recreational, facade (ground,structure or wall mounted ) lighting



Case Studies



Technical Parameter:

ModelNJZ-FLB-160PI
LED Chip BrandPhilips-Lumileds  LUXEON® T
Driver Brand Inventronics
Norminal Wattage160W
LED Module Usage4 Units
Input VoltageAC100V-277V(50/60Hz)
Power Supply Efficiency≥91%
Power Factor>0.95
Luminous Efficacy >105Lm/W
Luminous Flux (Lumen Output)16615Lm ( Tolerance +/- 5% )
Color Rendering IndexRa>70
Color Temperature3000K / 4000K / 5700K / 6500K
Light DistributionUsing secondary optical lens for light distribution
Beam Angle60°/120° (8°/25° /40° optional )
Work ConditionOperation Temperature: -40ºC ~+50ºC
Humidity: 10%~90% RH
Optimal Operating Temperature25ºC
Housing MaterialAnodized Die Cast Aluminum
IP RatingIP67
Protection Level Against Electric ShockClass I
Mounting MethodCeiling,Pendant,Wall Type
Operation Lifespan> 50000 Life Hours
Warranty5 years limited system warranty standard

Prod Model: NJZ-FLB-160PI
Markets: North America,South America
LED Chip: Philips-Lumileds Luxeon® T
Driver: Inventronics
Input Voltage: AC100V-277V
Power Factor: >0.95
Luminous Efficency: >105lm/W
Luminous Flux: 16615lm
Color Rendering Index: Ra>70
Operation Temperature: -40degrees Celsius ~ +50degrees Celsius
Dimensions (L×w×h): 420×356×305 Mm
Net Weight: 8.8 Kg
Lamp Body Material: Aluminum Alloy
IP Rating: IP67
Certification: CB
Color Temperature: 3000k / 4000k / 5700k / 6500k
Color: Silver / Black
Power: 160W
Usage: Warehouse/ Manufacturing/ Cold Storage/ Garage
Beam Angle: 60/120
Nanjing JingZe Lighting Technology Co., Ltd., specialized in LED lighting, We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customer needs" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
