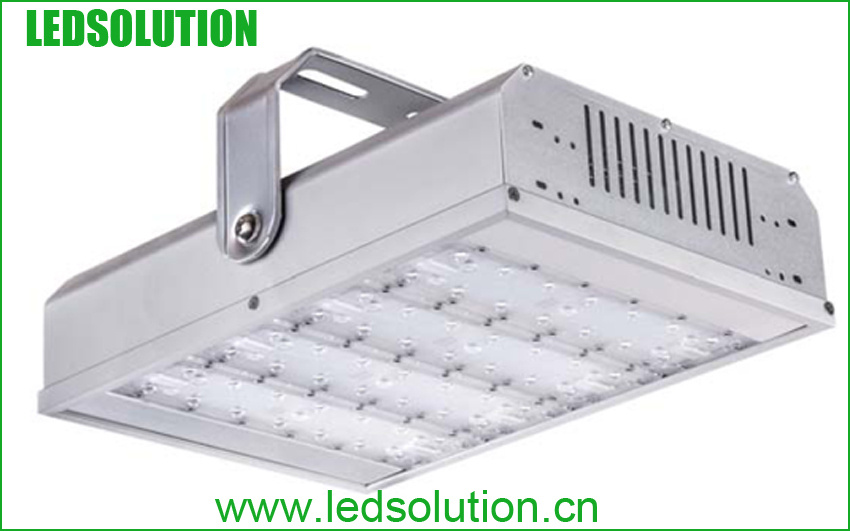

160W CE RoHS TUV UL Certificate Outdoor LED High Bay Light
| Price: |
US $ 215-241/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
160W CE Rohs TUV UL Certificate outdoor led high bay light

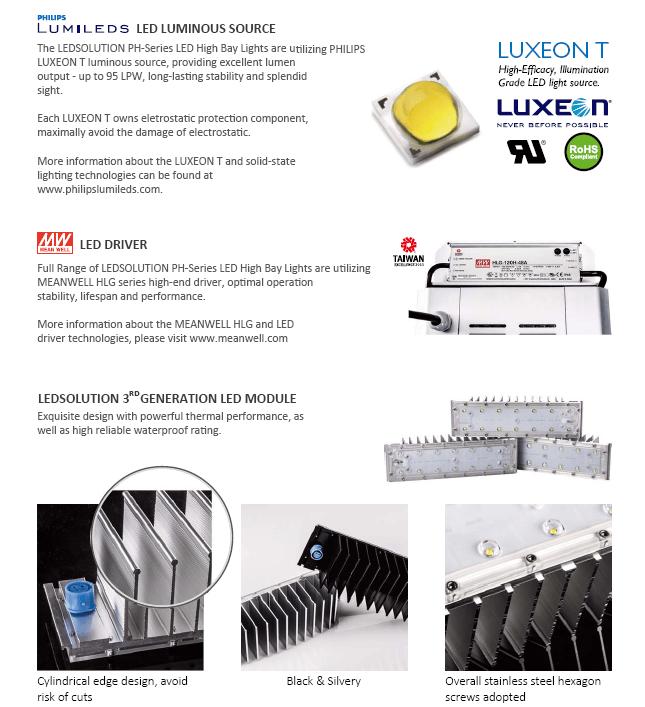

Overview:1.Professional encapsulation with PHILIPS LUEON® LED chip makes the LED light source.
2.Obtaining excellent protection of optical attenuation and heat conduction ratio.
3.Utilizing World's leading MEAN WELL® LED Driver, Great luminaire stability, lifespan & Optimal Performance Status.

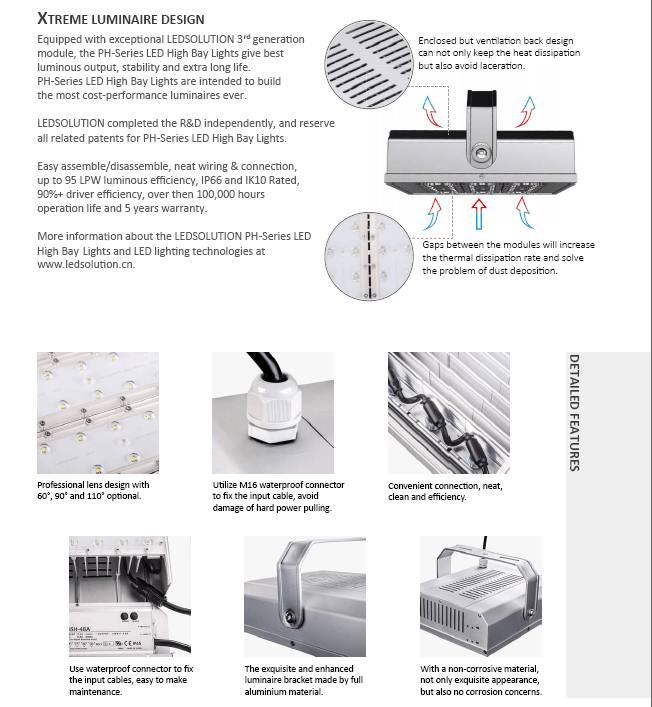

4.Use of the good thermal grease combining MCPCB and aluminium radiator closely,
5.Keeps every LEDs obtaining optimal effects Of heat dissipation.
6.Light attenuation of LEDs under safe control With adequate heat sinking area and Excellent air flow design.
7.Designed the rectangular light beam from exquisite lens, effectively control the horizontal and vertical Beam angle. Mirror surface processed reflector could collect the invalid light and reflect them into Effective.8.The design of traditional concept coupled LEDs technical, makes it more easily for accept by people For general flood lighting replacement.Feathers:Energy savings, high efficiency Easy to maintenance, with big upgrade spaces and High brightness LED.Application: Warehouse lighting,factory lighting,rink lighting,gas station lighting.Parking lots.Shops, Billboards, Buildings, Landscapes.LS-HL160PH (250W HID Replacement) Brighter
Product Benefits

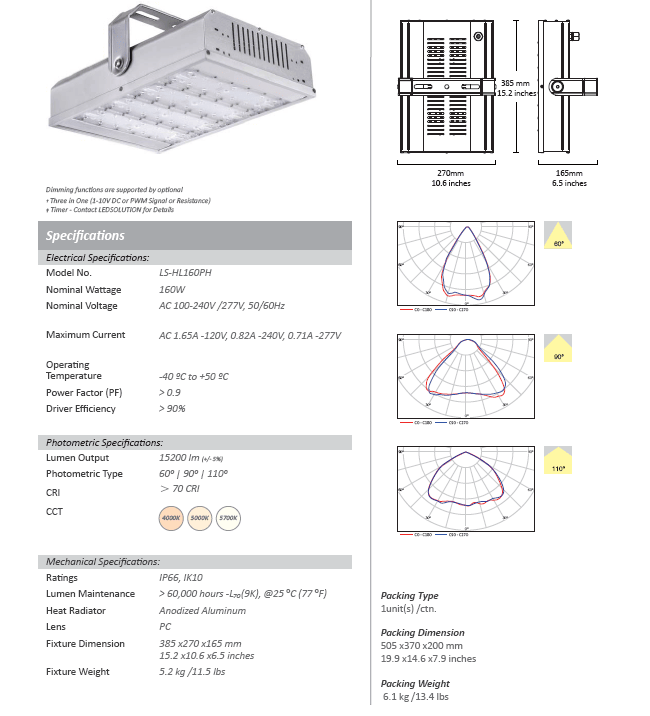

SpecificationSpecifications |
Model | LS-HL160PH |
LED Brand | Philips LUXEON® T |
Driver Brand | Meanwell HLG series |
Norminal Wattage | 160W |
LED Module Quantity | 4 modules |
Input Voltage | 100-240/277VAC |
Power Efficiency | >90% |
Power Factor | >0.95 |
Lamp Rated Luminous Efficiency | >100lm/w |
Lamp Rated Lumen output | 16000 lm (Lumen tolerance +/- 5%) |
Color Rendering Index | Ra>70 |
Color Temperature | 4000 5000 or 5700K |
Photometric Type | 60,90,110 degrees |
Optimal Operating Temperature | 25ºC |
Storage Temperatures | '-40ºC~+70ºC |
Working Environment | Between-40°C~+50°C, 10%~90%RH |
Total Harmonic Distortion | < 10% |
Lumen Maintenance | > 60000 hours -L70, @25 ºC (77 ºF) |
Body and Shell Materials | Anodized Aluminum |
IP Rating | IP66 with test report |
IK Rating | IK10 with test report |
Certification | CE,ROHS,GS,CB |
Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
Timer/Photocell Control |
Warranty | 5 years |
| |
Packing Details |
Fixture Dimension | 385 x270x1300 mm |
Fixture Weight | 5.4 kg /11.9 lbs |
Packing Dimension | 505 x370x200mm |
Packing Weight | 6.3 kg /13.9lbs |
Welcome your inquiry!
| Prod Model: |
LS-HL160PH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Current: |
AC 0.41A-120V, 0.21A-240V, |
| Power Factor (PF): |
> 0.90 |
| Lens: |
PC |
| Working Temperature: |
-40 - +50 |
| Driver Efficiency: |
> 90% |
| LED Driver: |
Mean Well |
| Operating Humidity: |
10% to 90% |
| Heat Radiator: |
Anodized Aluminum |
| Input Voltage(V): |
100-240V/277V/347V/480V |
| CRI (Ra>): |
70 |
| Lamp Body Material: |
Aluminum |
| IP Rating: |
IP66 |
| Certification: |
VDE |
| Color Temperature: |
2800-6500k |
| Color: |
Silver |
| Power: |
160W |
| Usage: |
Work Shop,Warehouse,Gas Station,Area Lighting,Park |
| Lifespan: |
100000 Hours |
| Beam Angle: |
60,90,110 Degree |
