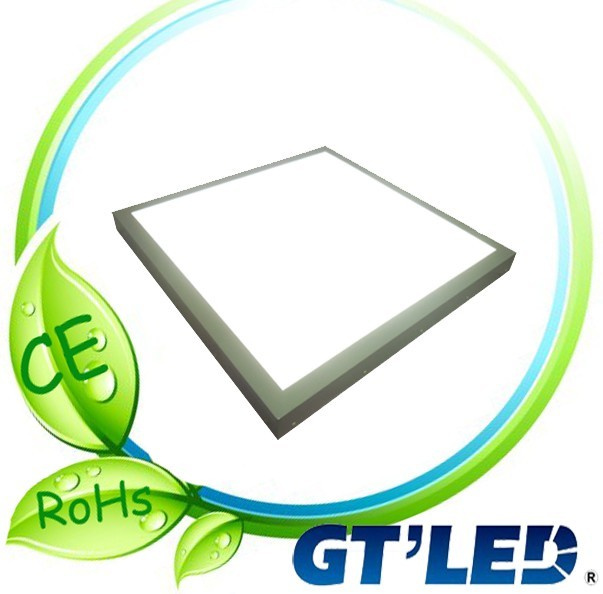

Home LED Light Products 15W LED Panel Light Back Straight Lighting 295*295*42 EMC Approval 1300lm

15W LED Panel Light Back Straight Lighting 295*295*42 EMC Approval 1300lm

15W LED Panel Light Back Straight Lighting 295*295*42 EMC Approval 1300lm
Price: Negotiable/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 4/Piece
Pay Type: L/C,T/T,Western Union
15W 35W 45W 52W 104W LED panel light back straight lighting with high luminance EMC driver Dimmable available

Features and benefits
1) High luminance SMD LEDs produced by GT'LED, Superior lumen maintenance of 75% after 30, 000 hours of use
2) EMC approved constant current power supply for long lifespan with 40000hrs
3) No UV or IR light radiation and low heat, less than 60° C
4) Instant "ON" to 100% brightness
5) No mercury or other inorganic
6) Dimmable available.
7) High luminous efficacy: Up to 80lm/W because of the back straight lighting
8) Available color temperatures:
2500-2900k/2900-3200k/3200-3700k (Warm White)
3700-4200k/4200-4700k/4700-5300k (Natural White)
5300-6000k/6000-7000k/7000-8000k (Cool Whtie)
9) 45W LED downlight can achieve directional light output equal to 85W traditional halogen light
10) 300*300(15W), 600*600(595*595, 35W, 45W), 600*1200(595*1195, 104W), 300*1200(295*1195, 52W) available

Product specification
Light source: SMD3014
LED 'qty: 144 PCS
Frequency range: 47 Hz - 63 Hz
Angle: 120°
RA: > 72 (warm white) > 78 (neutral white) > 75 (cool white)
Defense level: IP40
Size: 295*295*42/600*600*42
Material: Aluminum alloy and PC

Environmental specification
Working temperature: -30-50° C
Humidity: 10% ~ 90% of
The storage temperature: - 40~ 80 ° C

Electrical code
Working voltage: 12-13 V DC
Input voltage: 100-240 V DC
Lumen: 1300lm
CCT: 2900-8000K
Power: 15W

About GT'LED
And we can follow well your business. Because:
1. We are Top 50 LED Manufacturer in China and have produced the LEDs (or LED Package) from 1W to 500W by ourselves for more than 8 years.
2. We are full experience of support our exclusive agents in UK, USA, Ireland, Israel, etc with good products and services.
3. OEM, ODM available with more than 50people in R&D team, 600 people in total and TUV authorized factory.
4. LED drivers and lighting shells produced by GT'LED
5. We supply the panel lights, flood lights, tubes, spotlights, high bay, street lights, candle lights, downlights, bulbs, etc

Welcome to GT'LED. Welcome to Join us.
Please feel free to contact me. I am David.; )
  Light Source SMD 3014
  Warranty(Years): 3
  Lamp Luminous Flux(lm) 1300
  Color Temperature(CCT) 2900-8000K
  Lamp Body Material Aluminum and PC
  Place of Origin China
  LED Qty 144pcs
  Lumen 11-12 lm per LED
  Net weight 6.5/12  kg
  Item Type Panel Lights
  Input Voltage(V) 85-265
  Lamp Luminous Efficiency(lm/w) 78
  Working Temperature -35 - 40
  IP Rating: IP43
  Brand Name GT' LED
  Power consumption 15W
      Lifespan > 50, 000hrs
  Housing: Aluminum Alloy and PC
  LED Light Source SMD3014
  Lamp Power(W) 15
  CRI (Ra> ) 80
  Working Lifetime(Hour) 50000
  Certification CE, EMC, RoHS
  Model Number GT-PL15WN
  Input Voltage 100-240 VAC
  Size(mm) 295x295x42
  Other items 300*300, 300*1200, 300*1200, 600*1200

Prod Model: GT-PL15WN
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED: SMD3014
LED Qty: 144PCS
LED Lighting Type: Back Straight Lighting
LED Driver: EMC Constant Driver
Dimension: 295*295*42/300*300*42
Lifespan: 50000hrs
Warranty: 3 Years
Lumen: 1300lm
Cct: 2900-8000k
LED Producer: Gt'led
Light Source: LED
Appearance: Square
Type: Ceiling
Emitting Color: White
Certification: CE
Housing Material: Plastic
Base Material: Metal
Voltage: 100-240VAC
Beam Angle: 120
Unlike most competitors, we perform complete automatic production in-house: die bonding, wire welding, powder painting, color sorting and more. Such high automation enables us -- GT'LED-- to produce LEDs with high uniformity and high volume. All of our products, including LED tubes, LED ball bulbs, LED projectors, LED wall washers and LED streetlights, are valued by Foxconn and Beijing Microsoft.

We started manufacturing high-power LEDs in 2005. And by now, we've delivered more than 60 million LEDs worldwide. Through years' trial use and continuous improvement, our items are adequately reliable for buyers. Our color temperature different is lower than 500K for LEDs in the same batch. We're so confident in our product quality that we offer three-year warranties for all items.

Since LEDs are encapsulated in-house, our LED lighting products are around 10-20 percent less expensive than most of competitor offer. To maintain this edge, our 10 visionary designers are continually looking for ways to develop new designs, and they do this with 10 to 20 new models every month. We invest $146, 000 in R&D each year, which accounts for five percent of sales revenue.

With a monthly output of 3 million LEDs and around 100, 000 LED lighting products, we can handle your high-quantity orders with ease. To get your order started, contact us today.
