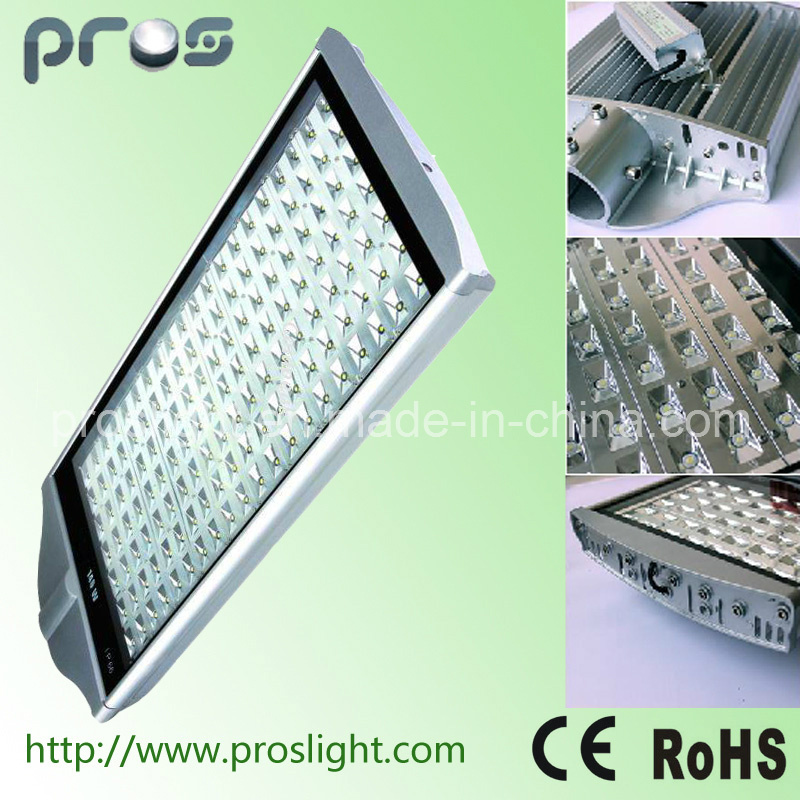

High Power Street Illumination is a new series of energy saving products that utilize high power LEDs as effective lighting source to traditional illumination, such as LPS, HPS, or MH street lights. LED Street Illumination provides a multitude of advantages over conventional incandescent light: LED Street Illumination is environmentally friendly, energy efficient, and cost-effective. This smart, "greener" option for outdoor lighting has emerged on the green scene due to the recent technological advancements of LED Street Illumination.
Product Features
1. Die-Casting Aluminum Alloy casing, High shock & vibration resistant. And high intensity toughened glass cover, good transparency. Sealed by reliable silicone rubber, waterproof and dust proof, can be long-term used in harsh environment.
2. Ideal heat dissipation design. Big heat sinking panel which can reduce the failure rate and extend lamp life.
3. High efficiency and power factor >0.9 LED power supply, Constant current. AC85-265V, Waterproof.
4. Epistar and Bridgelux LED, 110-120lm/w, super brightness, 2700K-7500K, Warm white; Pure white; Cool white.
5. LED Street Light can be cold start and hot start instantaneous, lifespan reaches 50000hrs. After installation, don't need to change light source, reduce the cost greatly.
6. Unique optical design & rectangular beam, suitable for roadway illumination
7. Good color rendering, CRI>80
8. No UV & IR, No Blinking and No Mercury & Lead free, It is completely Green product. Eco-friendly.
9. LED Light Energy saving system, saving 80% energy than the conventional Metal halide lamp, Sodium Light or HPS light
Typical Applications
Tunnel, Subway; Gas Station, Garage Lighting; Workshop, Factory Lighting; Yard, Square Lighting; Road, Highway Lighting; Station, Dock Lighting etc
|
Model NO.: |
PL-LD-RT154W |
|
Light Source |
Epistar |
|
LED Quantity |
154pcs*1W |
|
Power consumption |
167W |
|
Input power |
AC85-265V |
|
Luminous Flux: |
110-120lm/W |
|
COLOR Rendering Index(CRI) |
Cold White Ra>70
Warm White Ra>75 |
|
Color Temperature: |
Warm White 2700-3500K
Pure White 4000-5000K
Cold White 6000-7500K |
|
Operation Temperature: |
-35→+50 degree |
|
Power Factor |
>0.90 |
|
Frequency range (Hz): |
47--63Hz |
|
Total harmonic distortion |
<15% |
|
Power efficiency |
85% |
|
Storage Temperature: |
10°C~85°C |
|
IP Rating: |
IP65 |
|
Average illumination intensity grade(E) |
6M Height 12*6m >58LUX
8M Height 28*12m >38LUX
10M Height 35*13m >30LUX |
|
Material: |
Aviation aluminum +Tempered glass |
|
Size: |
700x310x80mm |
|
work life: |
50000H |
|
Weight: |
12.5kg |
|
Certificationgs |
CE, RoHs |
Pros Light is an established high-tech factory specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We are especially well-placed in the field of Power LED thermal management and related lighting solutions.
Our product range:
1. LED Street Light
2. LED Bulb & Spotlight
3. LED Downlight
4. LED Panel
5. LED WallWasher & Floodlights
6. LED Explosion proof Light
7. LED High bay light
8. LED Tube T8
9. OEM & ODM Projects
