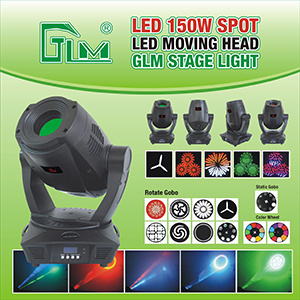

Model NumberLED Light Source
G150DHigh-power, 150W White LED
Function
14 channel DMX-512 moving yoke
Pan: 540° / Tilt: 270°
Color wheel: 8 colors + white Rainbow color spin at variable speeds
Rotating gobo wheel in both direction
6 metal+1 glass+open
Rotating gobo wheel spin at variable speeds
3-facet prism; Blue LCD display
Variable electronic shutter (for strobing)
Variable motorized focus
Variable electronic dimmer (0 100%)
Remote fixture reset & vector speed channel
Built-in movement macros via DMX (automated and sound)
Built-in automated programs via master/slave
Fixture's power cable variable series connection
Pan: 540° , 360° , 180° Tilt: 270° , 180° , 90°
User-selectable basic or advanced operating modes
Specification:
AC power: Switchable 100V/240V 50/60Hz
Beam Angel: 16°
Product Size: 382*356*516mm N. W: 13.5KG
Packing Size: 560*550*555mm G. W: 20KG
Warranty: 1-year Limited Warranty
DMX CHANNEL
|
Channel |
Function
|
|
1 |
pan
|
|
2 |
Tilt
|
|
3 |
X/Y speed
|
|
4 |
Color
|
|
5 |
Gobo
|
|
6 |
Gobo Rotation
|
|
7 |
Fixed Gobo
|
|
8 |
Foucus
|
|
9 |
Prism
|
|
10 |
Strobe
|
|
11 |
Dimmer
|
|
12 |
Function
|
|
13 |
Pam Fine
|
|
14 |
Tilt Fine
|
|
GLM Stage Light & Sound Co., Ltd is a professional manufacturer of LED STAGE LIGHTING(moving head), eg: 60W Spot, 108W Wash, 54W Wash, 15W Spot, 30W Spot, 56W Wash, RGBW, RGB etc. All of products approved by CE and RoHS certification.
