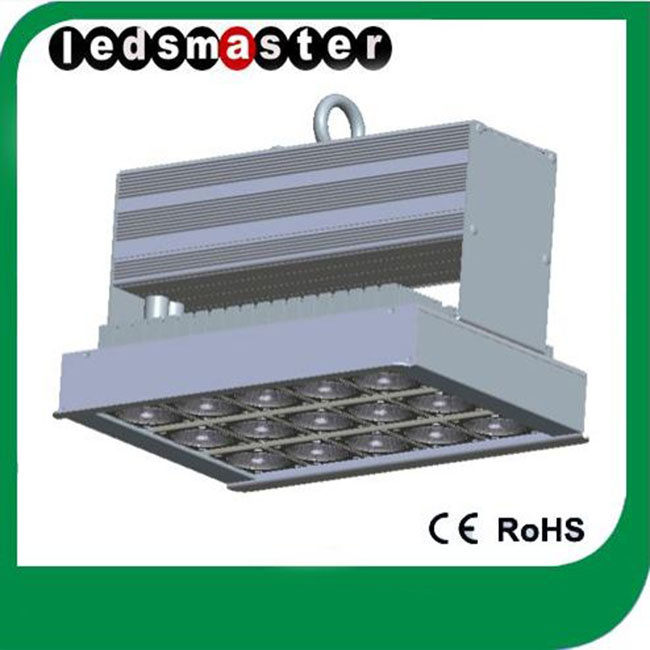

150W LED High Bay Light with High Luminous

Product description
1,N.A.S.A optical system,2-10 times brighter than led light
2,High lighting effect, up to 95%
3,angle can be 10,25,40,60,90,120 degree
4,Housing with pure aluminum material,very stable and strong
5,5 years warranty,and can be used for 10 years
6,Approved by CE,RoHS,ETL,DLC,and supported by IES,IP66

Packing information
All products packed with wooden box,safe and high-quality

Application
1,Gymnasium, Sports Stadium Lighting;
2,Gas Station, Petrol Station Conference Centers ,Garage Lighting, Canopy Lighting;
3,Parking Area, Garden Lighting;
4,Billboard Lighting, Flood Lighting;
5,Tunnel, Subway, Underground Lighting,Outdoor street and building light;
6,Warehouse, Storage Lighting, High Bay Lighting;
7,Yard, Square Lighting.

What we can do ?
To solve problems and make projects happen for customers
To increase product performance and raise industry standards


FAQ

1. How To Get Quotation
After browse our website, if you are interested in some of our products, you can send e-mail
Or can directly contact with us online through Skype
When you send inquiry, please kindly send your company and contact information. So, we can recommend appropriate products to you. We are also looking for serious and professional partners. So, we can provide more professional services.

2. How To Place Order
Step 1: you get quotation from our sales
Step 2: you send PO or follow information to our sales
1) Item number of products you order
2) Quantity
3) Buyer Name
4) Shipping destination and shipping method (if you are not sure, our sales will advise according to your order)
5) Consignee
Step 3: our sales will send PI(proforma invoice) to you, which include order details, shipment, payment and delivery information
Step 4: if you agrees to PI, then arrange payment.
Step 5: after we received payment, we will let you know and begin to arrange production.
Step 6: after shipment, we will send you tracking number(express), AWB(air cargo) or B/L(sea cargo)
Step 7: you get your order and check quality. If it's OK, order process end.

3. Warranty
5 years

4. Payment
For sample order, normally,we accept Paypal, Western Union and T/T(bank transfer
For bulk order, we accept T/T(bank transfer) ,Paypal,and Wesrtern Union.

5. Shipment
a. For sample order, normally we use courier like DHL, UPS, TNT, FEDEX, EMS.You can assign you own courier.
b. For batch order, air cargo or sea cargo is the best choice. You can also assign the forwarder to make the transportation.

TECHNICAL PARAMETER

ITEM	IP66 Waterproof LED Lamp
ITEM NO	LS-HBN150-LITE
Power	100W
Light Source	Epistar
Input Voltage	90-265VAC 50-60HZ
Power Factor (PF)	≥0.95
Power Efficiency	≥90%
Color Index(CRI)	Ra >80
Light Angle	20°,40°
Color Temp:	2700-3500K 5000-6500K 6500-7500K

LED Luminous Efficiency	120lm / Watt
Luminous Flux (Typ.)	18000lm
Equal Flux (Typ.) *	36000lm
Life Span	≥80000 hours
Work Temperature:	- 25 ° C ~ 55 ° C
Storage Temperature:	- 40 ° C ~ 80 ° C
Working Humidity	10 % ~ 90 % RH

Test data:

Hour(H)	Light Flux(LM)	DC Voltage	DC Current(A)	Preservation Rate of  light
1	110000lm	31.33	35	100%
1000	107800lm	31.35	35	98%
2000	107360lm	31.30	35	97.6%
3000	106150lm	31.35	35	96.5%
4000	104500lm	31.28	35	95%
5000	103730lm	31.37	35	94.3%
6000	102850lm	31.37	35	93.5%

2.Opto-electric test project:
Lamp Parameters:

Input Power AC(W)	Rated	1050
	Measured	1049
Power Factor	Rated	0.95
	Measured	0.95
Input Frequency (HZ)	Rated	50-60
	Measured	50
Color Temperature (K)	Rated	2800-7500
	Measured	6750
Luminous Flux (lm)	Rated	110000
	Measured	115400
Input Voltage (V)	Rated	30-34
	Measured	31.3
Input Current (A)	Rated	35
	Measured	35
Luminary Efficiency (lm/W)	Rated	110
	Measured	115
Color Index (RA)	Rated	65
	Measured	70.5
