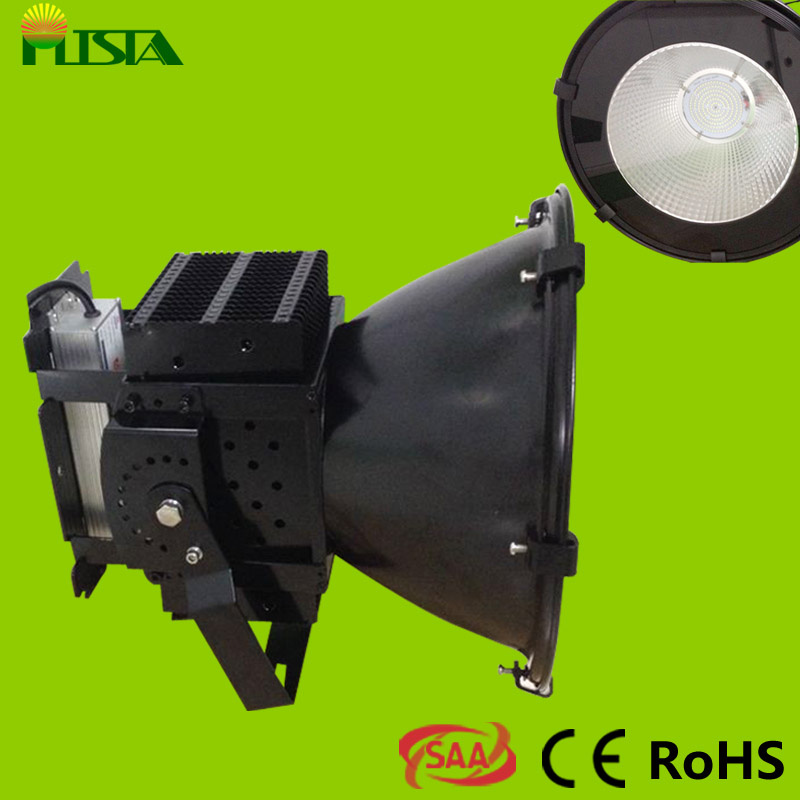

CE& RoHS approved, 100W/150W/200W/300W/400W/500W High Bay LED
What is new?
1. Protection grade is IP65, 3 years warranty
2. SMD3020 Epistar chip, Cree chips will be used for 300W/400W/500W versions
3. Smart respirator design and excellent cooper heat pipe heat dissipation technology
4. Adjustable project angle, The illuminated area is 40 square meters
5. Meanwell driver, dimmable function is available
Features:
1. Adopting heat dissipation technology of heat pipe fins riveting fins, the heat pipe can release heat rapidly from chips bottom to the fins, greatly lower down the temperature of light source, extending its life span
2. Using CREE/XBD/3020 LED, excellent lighting performance, uniform illumination, no glare and strobe, low light decay, pure light color
3. Applying Respirator design, waterproof design, eliminating mist, avoiding condensation, improving quality, good LED heat dissipation technology fully ensuring the long lifespan with 5000hrs, less than 15% lumen depreciation
4. Multiple light selective angles, suitable for different applications
5. Applying constant current and voltage, wide voltage: AC 85V~265V
6. Environmental protection, No pollution, lead and Hg and other hazardous element
~~~FAQ~~~
Trade Term& Payment:
1. Trade term: FOB, EXW
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery (Western Union or MoneyGram are welcomed)
Shipment & Delivery Time:
1. MOQ: 20PCS, sample order is available.
2.5-7 working days for sample order, 15-25 working days for normal order.
3. Shipping port: Guangzhou Huangpu port, Shenzhen, Hong Kong
Our Service:
1. Your inquiry related to our products or prices will be replied within 24hrs.
2. Well-trained and experienced staffs to answer all your inquiry in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributorship are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information
6. All the products have 3 years warranty. As long as the reasons are reasonable, we will be responsible for the products issues in the shelf-life period, and provide professional solutions.
| Item No. | ST-PLS-P09-100W | ST-PLS-P09-150W | ST-PLS-P09-200W | ST-PLS-P09-300W | ST-PLS-P09-400W | ST-PLS-P09-500W |
| Power Voltage | AC 85~265V | AC 85~265V | AC 85~265V | AC 85~265V | AC 85~265V | AC 85~265V |
| Power factor | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 |
| LED | 3020 / 200PCS | 3020 / 300PCS | 3020 /380PCS | 3020 / 200PCS | 3020 / 300PCS | 3020 /380PCS |
| Power | 100W | 150W | 200W | 300W | 400W | 500W |
| Luminous flux : lm | 8500 | 9000 | 12750 | 13500 | 17000 | 18000 | 25500 | 27000 | 32500 | 36000 | 41500 | 45000 |
| Center illuminance (6m) | 375 | 400 | 597 | 610 | 895 | 915 | 1985 | 2058 | 4850 | 5028 | 9850 | 10418 |
| CCT | 3000 K | 6000 K | 3000 K | 6000 K | 3000 K | 6000 K | 3000 K | 6000 K | 3000 K | 6000 K | 3000 K | 6000 K |
| CRI | Ra≥75 | Ra≥80 | Ra≥75 | Ra≥80 | Ra≥75 | Ra≥80 | Ra≥75 | Ra≥80 | Ra≥75 | Ra≥80 | Ra≥75 | Ra≥80 |
| Lumens Efficiency | ≥85 | ≥90 | ≥85 | ≥90 | ≥85 | ≥90 | ≥85 | ≥90 | ≥85 | ≥90 | ≥85 | ≥90 |
| Beam Angle | 25º/45º/60º/90º | 25º/45º/60º/90º | 25º/45º/60º/90º° | 25º/45º/60º/90º | 25º/45º/60º/90º | 25º/45º/60º/90º° |
| Working Temperature | -30 ~60 degree | -30 ~60 degree | -30 ~60 degree | -30 ~60 degree | -30 ~60 degree | -30 ~60 degree |
| Storage Temperature | -40 ~80 degree | -40 ~80 degree | -40 ~80 degree | -40 ~80 degree | -40 ~80 degree | -40 ~80 degree |
| Life Span | ≥50000H | ≥50000H | ≥50000H | ≥50000H | ≥50000H | ≥50000H |
| Housing | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum |
| Dimension:mm | ø 374*410 | ø 374*410 | ø 374*410 | ø 374*410 | ø 374*410 | ø 374*410 |
| Packing: mm | 460X460X545 | 460X460X545 | 460X460X545 | 460X460X545 | 460X460X545 | 460X460X545 |
| Net Weight:kgs | 6.3kg | 7.27kg | 8.1kg | 9.2 kg | 10.99kg | 11.59kg |
| IP grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
Guangzhou Star Energy-Saving Technology Co., Ltd. is a division company of Jintai International Group, which the Taiwan company set in mainland, and is a high-tech enterprises professional in development and production the environment and energy-saving products.
The series of our company is complete, including the Commercial Lighting, Outdoor Lighting, Decorate Lighting, Roadway Lighting.
Our company verified by ISO9001: 2008 quality management system, the national compulsory safety 3C certification and EU CE safety certification and RoHS certification, SAA and C-Tick certificate and energy efficiency certification by national authority, the products meet the industry-leading level.
Our product range is as follows:
1. LED Light Panels
2. LED ceiling Lights
3. LED Tube Lights
4. LED Spot Lights
5. LED Down lights
6. LED Cabinet Lights
7. LED Wall Washers light
8. LED Strip Lights
9. LED underground Lights
10. LED underwater lights
11. LED rechargeable Bulbs
12. Customized LED Lighting Solutions (OEM, ODM)
13. LED sensor cabinet light
Clients are welcome to buy our standard produts, or send us OEM requests. You will be impressed by our quality and prices, please contact us now!
We sincerely look forward to cooperating with you!
