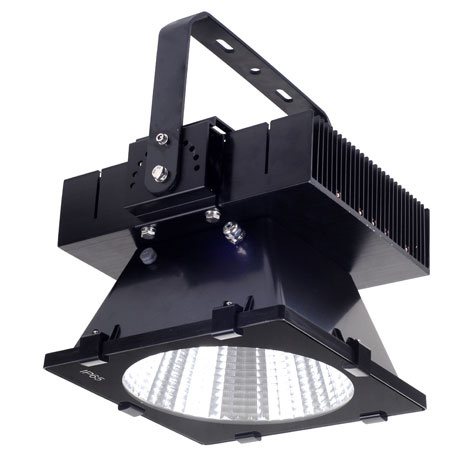

150W LED High Bay Light for Factory 347V

150W LED High Bay Light for Factory 347V
Price: US $ 101.5/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 2/Piece
Pay Type: L/C,T/T,Paypal,Western Union
150W LED High Bay Light for Factory 347V

Item No.:RB-HB-415-150W
Input Voltage:AC 100~277V
Freqency Range:50Hz~60Hz
LED ChipBridgelux 45 mil
Power Driver:Mean Well
Power Factor:>0.98
Power Efficiency:>91%
LED Power154W
LED QTY:1pc*150W
LED Working Voltage:DC 42~48V
System Consumption:155W
LED Luminous FluxWarm White14350LM
Pure White15100LM
Cool White15300LM
Viewing Angle:45degree
Centre IlluminanceHeight 3M1746LUX
Height 4M982LUX
Height 5M629LUX
Illuminance AreaHeight 3MDia.3.5 M Round spot
Height 4MDia.4.6 M Round spot
Height 5MDia.5.8M Round spot
Illuminance Uniformity:>0.6
Color TemperatureWarm White2700K~3500K
Pure White4000K~5500K
Cool White6000K~7000K
Color Rendering IndexRa>78
Light Distribution:LED points visible
LED Junction Temperature:≤115ºC
Working Temperature:-40ºC~50ºC
IP Grade:IP54/IP65
Working Life-span:50000 H
Power Line:1.0 mthree line
Connect WireBrownL
BlueN
Yellow / GreenG
HeatsinkIntegration of Thermal conductivity Heat dissipation phase change technology
The color of the lamp shellBlack and silver is available
CertificateCE /ROHS/UL
Net Weight:8.0KG

Features:

1. Using single powerful LED(30-200W)as the light source, with unique lighting design of Multi-chip integrated single-module; Select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.

2. The unique design of radiator which can combine with the lamp box perfectly, diffuse the heat conduction efficiently, so that reduce the temperature of inside lamp, it ensures the LED longlife-span.

3. Environment-friendly, no air pollution, no lead-free, no-mercury.

4. Adopted advanced constant current controlling techniques; Wide voltage range available and global universal; Overcome the lighting instability caused by electric network of ballast and noise pollution; Avoid the stimulation and tiredness taking from long-time work.
Prod Model: RB-HB-150W-CR
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Factor(Pf): 0.98
LED Light Source: Bridgelux
Total Harmonic Distortion(Thd): <8%
Power Efficiency: >88%
Illuminance Uniformity: >0.6
Power Line: H05ss-F
Certification: VDE
Lamp Body Material: Aluminum Alloy
Color Temperature: Cool White
IP Rating: IP65
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.

We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.

With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.

We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
