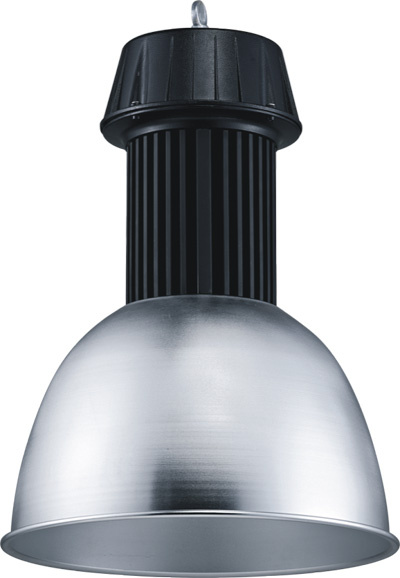

150W High Power LED Highbay Light with CE RoHS

150W High Power LED Highbay Light  with CE RoHS

Features:
1. With integrated high power LED, long life
2. Optical decline of small, green, low maintenance costs
3. Easy installation, excellent thermal design guide
4. Protection performance, meet the anti-poor environments
5. Sunflower aluminum lamp body, excellent heat dissipation and reduce the entire lamp operating temperature, extended life light source

Application areas:
1. Factory floor, libraries;
2. Supermarkets, railway stations;
3. Convention and exhibition center; Exhibition hall, warehouse, etc

Product Parameterss:
Input Voltage:
Power: 150W
LED Qty: 1PCS
Luminous Flux: 12000 Lm
Power factor: ≥ 0.9
Color Temp: 2700~6500K
Protection class: IP65
Material: Aluminum & PC

Package information:
The size of the radiator package size: 276(mm) X 222(mm) X 530(mm)
The size of the reflector package: 550(mm) X 550(mm) X 300(mm)
The weight of the radiator after packing: 5 Kg.


LED high bay light — — Specification
1. Product name: LED high bay light 200W
2. Power: 200W
3. Input Voltage: 85~265V
4. Freqency range: 50~60Hz
5. Power factor: >0.9
6. Power efficiency: >83%
7. Working voltage: DC30~36V
8. LED Q'ty: 1PCS
9. LED luminous efficiency: 110~120lm/w
10. Lamp's efficiency: >75%
11. Working Temp': -40° C~+50° C
12. Storage Temp': -25° C~+65° C(25° C is the best)
13. IP grade: IP65
14. Working life-span: 50000H
15. The color of lamp shell: Black/silvery
16. Beam angle can option: 30° 45° 90°
LED high bay light — — Freature
The light source adopts high efficient, energy saving, environmental friendly LED,
Have long lifetime, low consumption, no pollution and other advantages.
The housing adopts high-pressure die cast aluminum, surface powder is by electrostatic spray.
The beautiful appearance is anti-corrosion, waterproof, dustproof. The reflector is with high purity aluminum,
The lighting angle is large, lighting intensity is uniform and without glare.
The unique designed radiator conduct and spread heat efficiently to ensure the heat dissipation request and lifetime.
LED High bay lights series:
LED high bay lights 30W
LED high bay lights 50W
LED high bay lights 80W
LED high bay lights 100W
LED high bay lights 120W
LED high bay lights 150W
LED high bay lights 180W
LED high bay lights 200W
LED high bay light — — Application
It is suitable for workshop, factory building, storeroom, toll gate, gas station, large supermarket,
Exhibition hall, and gymnasium ect.
LED high bay light /led industrial light /high power led light, BridgeLux chip, Mingwell drive!
Package&Delivery:
1. Your orders will be delivered within 7-10 working time and please inform and confirm with us when you need rush delivery!
2. The Tube will be well packaged with careful handle and will be picked up by forwarder. We assure you the freight will be the lowest cost at the same transportation time.

Part Number	Power	Current	Voltage	Lumen	Color Rendering Index	Brand	View Angle	Emitting Color(CT)	Operation Temperature range	Storage Temperature range	Lead Soldering Temperature
led chip	150W	2800MA	24V	20000-220000LM	>80	Epiled Epistar,Bridgelux,Cree	120 degree	3000-7000K	-30 degree  to +50 degree	-40 degree  to +100degree	280 degree for 5 Seconds
