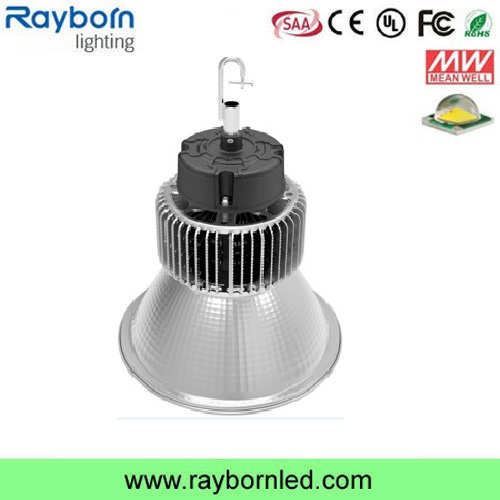

150W 200W Replacement 400w HPS Bulb LED High Bay Light
| 200W LED Industrial Light Main Technical Parameters |
| Item No.: | RB-GK-200W |
| Input Voltage: | AC 100-277V |
| Freqency Range: | 50Hz~60Hz |
| LED Chip: | Samsung Chip |
| Power Driver: | Meanwell HBG |
| Power Factor: | >0.98 |
| Power Efficiency: | >93% |
| LED Power | 200W |
| LED QTY: | 220pcs |
| LED Working Voltage: | DC 30~36V |
| System Consumption: | 206W |
| LED Luminous Flux | Warm White | 19800LM |
| Pure White | 21300LM |
| Cool White | 21600LM |
| Viewing Angle: | 25/60/100degree |
| MaximumIlluminance | Height 10M | 185LUX |
| Height 20M | 47LUX |
| Height 30M | 21LUX |
| Illuminance Area | Height 10M | Dia.10.8 M points visible |
| Height 20M | Dia.21.6M points visible |
| Height 30M | Dia.32.5 M points visible |
| Illuminance Uniformity: | >0.6 |
| Color Temperature | Warm White | 3000K~3500K |
| Pure White | 4500K~5500K |
| Cool White | 6000K~6500K |
| Color Rendering Index | Ra>80 |
|
| Light Distribution: | LED points visible |
| LED Junction Temperature: | ≤115ºC |
| Working Temperature: | -35ºC~55ºC |
| IP Grade: | IP54 |
| Working Life-span: | 50000 H |
| Power Line: | 1.0 mthree line |
| Connect Wire | Brown | L |
| Blue | N |
| Yellow / Green | G |
| Chip PC Cover: | Frosted / Transparent |
| Certificate | CE/SAA /UL/ROHS |
| Net Weight: | 5.3KG |
Led High bay light Features:
1.Using single powerful LED(30-500W)as the light source, with unique lighting design of Multi- chip integrated single-module; select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.
2. High bay lighting Unique heat sink design perfectly combine with power box,effectively transmit the heat,thereby lowering the body's temperature, ensure the life of LED chip and power driver.
3. High bay led The heat sink surface have conducted anodic oxidation anticorrosive process,with compact structure and aesthetic appearance,water proof and dust proof.
4. High bay light Adopted advanced constant current controlling techniques,wide voltage range available and global universal;overcome the lighting instability caused by electric network of ballast and noise pollution.
5. High color rendering,meet the requirement of different environment,improve working efficiency.
6. Easy installation and demolition,wide range of application.Environment-friendly, no air pollution, no lead-free, no-mercury.
High Bay Light Competitive Advantage:
1. CE & RoHS & TUV,SAA, UL approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 5-15 workdays depends on order quantity after payment confirmed.
5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan.
High Bay Lighting Applications:
Widely used in factory,gymnasium,billboards,buildings,lawns,landscaping,offices,the site of light project and decorative lighting project etc.
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
