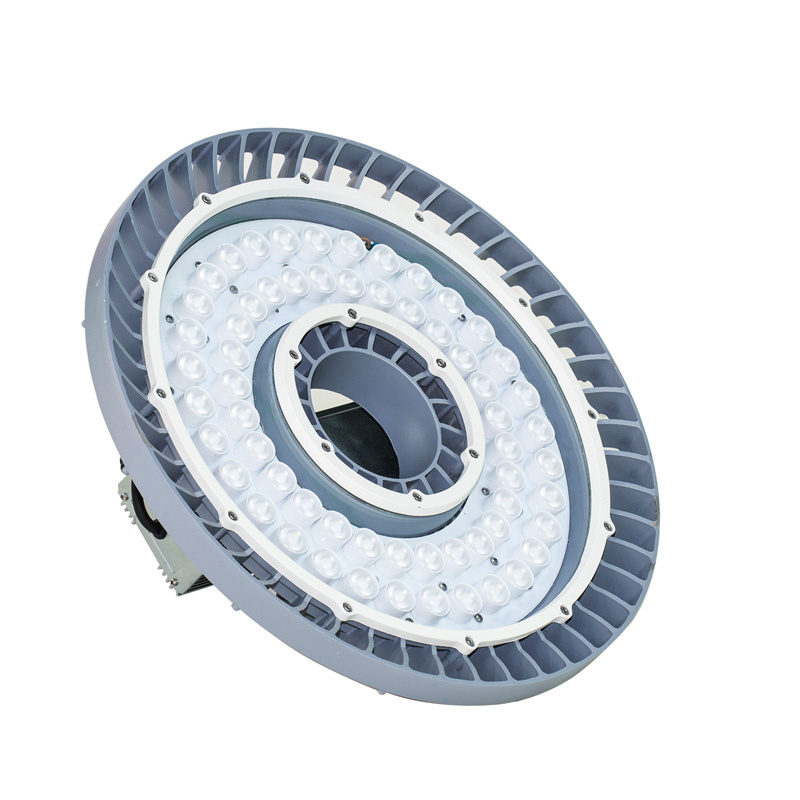

140W Reliable Energy-saving LED High Bay Light with CE that can replace a 400W Metal Halide Lamp
Light weight and compact LED Highbay light that can replace a 400W Metal Halide Lamp, substantial electricity savings, long lifespan, 5 years warranty, soft start function\dimming function, automatic clean function, tool-free installation.
High Power LED High Bay Light's Applicant: Lighting for workshop, warehouse, construction plant, square, pot, airport, exhibition halls, parking lots, supermarkets and specially in professional spot such as huge gymnasiums and industrial lighting project.
Main Features:
1. Thin and light fashionable appearance without big and heavy shield
2. High quality LEDs, super bright, high light efficiency: >90lm/W
3. Unique all-in-one structure for severe environment
4. CE approval, IP65 Waterproof, Three to Five Years Warranty
5. Attractive return on investment with superior performance
Φ 400 LED HIGH BAY
POWER CONSUMPTION: 140W
LUMINOUS FLUX: 12500LM
INPUT VOLTAGE: 100-240VAC, 50/60Hz
CCT: 3000-6000K
OPERATING TEMPERATURE: -40~ + 50° C
CRI: ≥ 75
PF: ≥ 0.95
IP RATING: IP40/IP65
BEAM ANGLE: 60° /90° /110°
LIGHT SOURCE: HIGH POWER LED(LG)
SERVICE LIFE: 5 Years
REPLACING 300W HPS
Driver: MOSO/MEANWELL
Main Features:
1. Thin and light fashionable appearance without big and heavy shield
2. High quality LEDs, super bright, high light efficiency: >90lm/W
3. Unique all-in-one structure for severe environment
4. CE approval, IP65 Waterproof, Three to Five Years Warranty
5. Attractive return on investment with superior performance
We also have more other style available (50W-200W). Different Beam angle for available. Epistar chips, also Can be LG LED as customized order.
Advantages:
Light-weight and compact all-in-one structure, Excellent thermal control
The industry's highest level of high efficacy
50, 000 hours lifespan
Soft start function\dimming function for illumination control
Lightweight design-5.5KG
Limited ultraviolet light, limited attraction of insects
IP65-High waterproof, anti-dust and anti-vibration level for severe environment
Automatic clean function
Easily and fast install
Function:
More cooling fins in the back to increase heat area effectively, fast heat dissipation to delay long life of LEDs quality
Be able to operate in high temperature, moist environment and other severe environment like that, and won't be corroded
Can be regulated as required angle
Green environmental protection, with no lead or mercury
Lifespan is more than 50, 000 hours, saving cost on changing lights
Strictly inspected and passed CE, CQC certifications
Primary Competitive Advantages:
*Unique technical innovation design
*Patent shape design with magnesium alloy
*Adopts high light efficiency led chip, and patent heat dissipation technology, feature with high light efficiency, low light decay and long lifespan
*Normally, use semi LED from Taiwan, could use LG or Cree if customers need
*Uniformly distributed light and color, very even light distribution and high uniformity, no glare to eyes
*Reliable qualities, use MEANWELL power supply, Compliant with CE standard
*-50-60° C Working temperature
*Low light decay: Lumen-drop at 5% after the 1st year, 10% after 3 years and 15% after 5 years
*Energy-saving, Substantial energy-saving more than 50% compared with HPS lamp
*Environment-friendly
*Easily and fast install, idea replacement of traditional lamp
*Long lifespan, Offer two to five years warranty
*High-power factor to minimize the harmonic distortion: PF: More than 95%
*Patent structure design, easy installation and maintenance
*Low maintenance costs
|
Packing |
1 PC/CARTON(BOX) |
|
Carton (Box)Size |
L450XW450XH170MM |
|
G.W. |
6.2KG/CTN |
|
Color Temperature |
Warm White |
Nature White |
Cool White |
|
Kelvin |
2700-3500K |
4000-4500K |
5500-6500K |
|
Color Rendering Index |
>75Ra |
|
Luminous flux(110°) |
12040lm/12320lm |
12600lm/12740lm |
12800lm/12880lm |
|
Intensity/10m |
120lux |
122.3lux |
124.2lux |
|
Power Consumption |
140W |
|
Input Voltage |
100-240V AC |
|
Average illumination |
≥22lux |
|
Illumination evenness: |
≥0.83 |
|
PF |
≥ 0.95 |
|
IP Rating |
IP65 |
|
Operating Temperature |
-40° C~+50° C |
|
Lifespan |
3 YEARS |
|
Equivalent |
250W Metal Halide Philips |
|
Model No. |
BFZ 220/150 55 Y |
|
Power |
140W |
|
Dimensions |
Φ400X222MM |
|
N.W. |
5.5KG |
|
CCT |
3000-6000K |
|
Beam Angle |
110°/ 60°/ 30° |
|
Installation |
Surface Mounted or hoisted with a chain |
|
Recommended height |
8-18m |
Founded in 2009, Wuhan Sunshine BRT New Energy as the biggest high power LED manufacturer in Wuhan City, Hubei Province in China have over 200 employees and 2000 square meters industrial park.
Organized by a strong team from Taiwan. We are professional on High Power LED Light design and solution with high quality private and aluminium magnesium alloy module. Our main series composed of LED street light, LED high bay light, LED tunnel light and LED high mast. We are professional on High Power LED Light design and solution with high quality private and aluminium magnesium alloy module. Our main series is LED street light, LED high bay light, LED tunnel light and LED high mast. The other part is commercial LED light.
We possesses various qualifications and certificates, such as National Engineering Qualification, National EMC License, CQC, CE, CB, KC, SAA, C-tick, LCP and others which have been successfully accomplished numerous of major projects in the domestic and international realms with flying colors. We have many customers all around the world and also professional on industry project and real estate project.
We have many customers all around the world and also professional on industry project and real estate project.
Our company improves products quality constantly to benefit the customers. Additional, it pays great attention to product reliabilities, safety and environment requirements. Worled keeps innovating developing new products techniques to maxmize values for the customers, bright the world and energy-saving in the world.
Our company supplys different kinds of LED lighting products. High quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. We are an ISO9001: 2008 registered manufacturer, producing 50W-200W LED high bay light of high quality, we guaratee our product for 3-5 years.
Wuhan Sunshine BRT New Energy's LED Outdoor light series is an amazing combination of technical innovations, including breakthroughs in electronics design, mechanical design, and thermal management. The core of the innovation is a new way to generate white light with LEDs to perfectly replacing the traditional HPS fixtures. Special features:
*Unique secondary optical design
*High Color rendering index
*High light efficiency
*Excellent thermal control
*Reliable qualities, use Meanell power supply, Compliant with CE standard
*Light color uniform
*Energy-saving, environment-friendly
*Easily and fast install, idea replacement of traditional lamp
*Long lifespan, Warranty: 3-5 years
*Low maintenance costs
