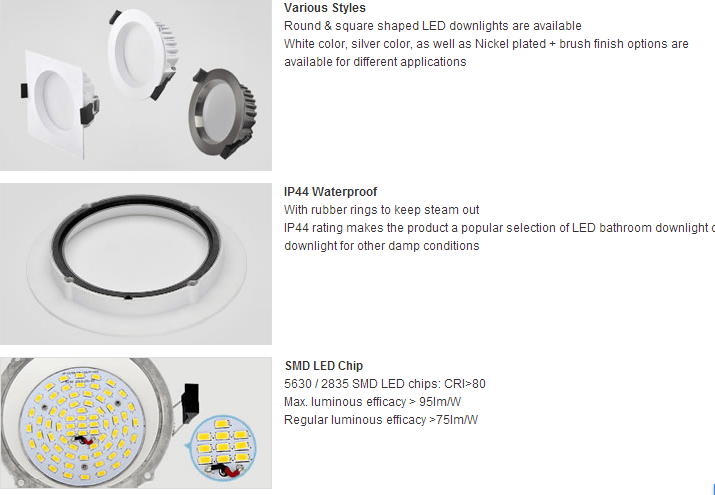

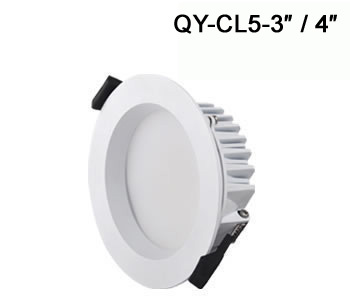

QY-CL5 SMD LED DownlightGeneral Overview of the SMD LED Downlight 1. The QY-CL5-4-13W/18W 4 inch downlight adopts SMD LED chips with high luminous flux as light source, nd a PMMA diffuser to nsur ensure even light output
2. Bot white and silver colored types available. We can also supply LED downlighting with nickel plated brushed surface to surface to suit different applications.
3. As a selection of dimmable downlight, te product supports Triac, 0-10V and DALI dimmers. it enjoys great populariy among our customers due to its superb dimming effect.
Specifications of the LED Downlight
1. Voltage: AC100-240V/AC200-240V
2. Lifespan: 40,000hrs
3. Power: 7W / 10W / 12W / 13W / 18W / 25W / 35W / 45W
4. CRI >80
5. Power Factor: >0.9
6. IP20 IP4
7. Beam angle: 90°
8. Dimmable: Triac dimmable, 0-10V dimmable, or DALI dimmable
9. CCT: 3000K 4000K 5000K 5700K
10. Surface color/treatment: White/Silver/Nikel plated + brush finish
Performance Specifications of the LED Downlight| Model | Power | Luminous Flux (±5%) (lm) (Non-dimmable LED Downlight) | Luminous Flux (±5%) (lm) (Dimmable LED Downlight) | Certificates |
|
|
|
|
|
|
|
|
| QY-CL5-2-7W 2 inch | 7W | 430 | 450 | 460 | 480 | 400 | 420 | 440 | 460 | CE,RoHS |
| QY-CL5-2.5-10W 2 inch | 10W | 685 | 700 | 720 | 720 | 640 | 660 | 700 | 700 | CE,RoHS |
| QY-CL5-3-12W 3 inch | 12W | 800 | 880 | 900 | 950 | 740 | 800 | 830 | 870 | CE,RoHS |
| QY-CL5-4-13W 4 inch | 13W | 1160 | 1200 | 1200 | 1260 | 950 | 1040 | 1040 | 1120 | CE,RoHS |
| QY-CL5-4-18W 4 inch | 18W | 1460 | 1560 | 1560 | 1620 | 1440 | 1540 | 1540 | 1600 | CE,RoHS |
| QY-CL5-5-18W 5 inch | 18W | 1480 | 1600 | 1600 | 1660 | 1460 | 1560 | 1560 | 1620 | CE,RoHS |
| QY-CL5-5-25W 5 inch | 25W | 2200 | 2350 | 2350 | 2450 | 2120 | 2250 | 2250 | 2350 | CE,RoHS |
| QY-CL5-6-18W 6 inch | 18W | 1530 | 1620 | 1620 | 1620 | 1490 | 1580 | 1580 | 1580 | CE,RoHS |
| QY-CL5-6-25W 6 inch | 25W | 2200 | 2270 | 2320 | 2350 | 2020 | 2090 | 2130 | 2160 | CE,RoHS |
| QY-CL5-6-35W 6 inch | 35W | 2870 | 3220 | 3325 | 3350 | 2640 | 2960 | 3060 | 3080 | CE,RoHS |
| QY-CL5-8-18W 8 inch | 18W | 1600 | 1710 | 1730 | 1750 | 1470 | 1570 | 1590 | 1610 | CE,RoHS |
| QY-CL5-8-25W 8 inch | 25W | 2300 | 2400 | 2450 | 2500 | 2110 | 2200 | 2250 | 2300 | CE,RoHS |
| QY-CL5-8-35W 8 inch | 35W | 3000 | 3220 | 3380 | 3500 | 2760 | 2960 | 3100 | 3220 | CE,RoHS |
| QY-CL5-10-45W 10 inch | 45W | 3600 | 3780 | 4000 | 4050 | 3460 | 3680 | 3870 | 3900 | CE,RoHS |

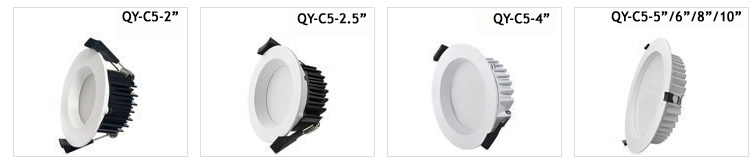

Design Details of the LED Downlight
| Model | Dimension(mm) | Product Size(mm) | Cutou(mm) | QTY/CTN(pcs) | Carton Size (cm) | N.W/piece(kg) | G.W/CTN (kg) |
| A | B | C |
| QY-CL5-2-7W 2 inch | ¢80 | ¢60 | 39 | ¢80*39 | ¢60-70 | 50 | 52.5*52.5*20 | 0.28 | 15 |
| QY-CL5-2.5-10W 2 inch | ¢85 | ¢66 | 40 | ¢85*39.9 | ¢70-75 | 50 | 57.5*57.5*20 | 0.3 | 18.5 |
| QY-CL5-3-12W 3 inch | ¢110 | ¢90 | 38 | ¢110*38 | ¢90-100 | 24 | 37*48.5*20 | 0.4 | 11 |
| QY-CL5-4-13W/18W 4 inch | ¢145 | ¢114 | 45 | ¢145*45 | ¢120-130 | 30 | 50*34*20 | 0.59 | 22 |
| QY-CL5-5-18W/25W 5 inch | ¢170 | ¢134 | 45 | ¢170*45 | ¢140-150 | 30 | 59*40*49 | 0.695 | 26 |
| QY-CL5-6-18W/25W/35W 6 inch | ¢190 | ¢153 | 45 | ¢190*45 | ¢160-170 | 20 | 53*46*41.5 | 0.825 | 20 |
| QY-CL5-8-18W/25W/35W 8 inch | ¢228 | ¢192 | 45 | ¢228*45 | ¢200-210 | 20 | 60*55*41.5 | 1.1 | 26 |
| QY-CL5-10-45W 10 inch | ¢280 | ¢229 | 52 | ¢280*52 | ¢230-260 | 10 | 62*31.5*43 | 1.7 | 18 |
FAQ:
1. What are your market reach throughout the region?
Our markets around the world in every corner, we have ten years of experience in foreign trade, we have worked with them in every country buyers, producers and distributors to reach more than 29,000.
2. What is your main product line is made?
We mainly produce led indoor lighting . Including T8 led tube , led downlight , led ceiling light, led track light, led mirror light and led panel light
3. Your factory or trading company?
We are a factory, we provide OEM services. Some famous foreign supermarkets and we often collaborate.
4. You have the ability to do independent research and development?
There is 5 engineers in our engineering department we have the research and development capabilities.
We also collect regularly each customer feedback, product improvement and new product development. We also hold monthly new product launches.
5. If I have a question I would like advice on how to contact you?
You can directly contact us through major inquiry or send e-mail to consult us.
6. What will you provide services?
If you do not mind, you can tell us the following information, you are factories, wholesalers,
purchasing,dealers, consumers or do engineering, design, or home. We can provide a detailed
explanation to you.You will also patiently answered every question. We have established a customer
complaint side, if you are not satisfied with our service, you can directly tell us via e-mail or telephone.
Foshan NanHai Qianyi Lighting Co. Ltd is a factory of Export style which was set up in 2014 specializing in desighing and manufacturing all kinds of lighting fixtures. Qianyi Lighting is made up of General factory and a branch factory, taking an area of 10, 000, Stationing over 100 skilled workers, there are 4 production lines inside the factory, including Power-Coating, Aluminum Injection, General Assembling. The annual turn over reaches USD10, 000, 000. The production capacity is increasing by 30% every year so as to meet market demands.
All members in Qianyi Lighting understand we should win the market by good service, quality and better prices. We enforce 7S management to enhance the applying of TUV IS9002 quality management theory. And we have obtained GS-TUV, CE, UL, cUL, ETL, cETL certificates etc. Qianyi Lighting would like to exploit larger market by excellent lightings and service with friends having same ambition in the world.
